The build is progressing:
The aluminium engineer in Melbourne was a let down but I found a great crew in Sydney who can do exactly what I want for 1/3 Melbourne price. If you are in Oz and looking at this sort of home brew CNC check out Australis Engineering. They are making the whole frame in kit form and shipping it to me ready to assemble, should be here next week.
In the meantime eBay came through with the 3HP water cooled spindle, arrived at the office yesterday.
Pics below, my sparkie is coming over the weekend to test and tag before I power up.
Question:
Anyone have a source for short lengths of VFS motor cable, Belden preferred? All my local wholesalers want me to buy 100 metre rolls.
3D printers/CNC mills
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
I'm definitely still watching with interest, post away!
Odd, I thought I had posted a comment about the coolness of the water-cooled system.
Odd, I thought I had posted a comment about the coolness of the water-cooled system.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Herewith the first dry assemble of the frame.
This is only rough to ensure the fabricator sent all the right parts.
Looks OK so far, one minor quibble with the alignment holes at one end but overall very happy with what they did. Cost with freight from Sydney was just over $1k. That may sound high but remember this extrusion goes for over $200 per length and I got them to do all the drilling and tapping plus supply fixings.
Anyhow, off to the hardware store this morning to gather bits for making a proper table, then move onto the full assembly.
To do:
This is only rough to ensure the fabricator sent all the right parts.
Looks OK so far, one minor quibble with the alignment holes at one end but overall very happy with what they did. Cost with freight from Sydney was just over $1k. That may sound high but remember this extrusion goes for over $200 per length and I got them to do all the drilling and tapping plus supply fixings.
Anyhow, off to the hardware store this morning to gather bits for making a proper table, then move onto the full assembly.
To do:
- Go 20km across town to the only electrical place that sells the cable I need by the metre
Tear down an old photocopier at work, fabulous source of limit switches and optical sensors for free
Ditto an old 19" rack server, free rack mount case for my electronics and VFD
Back to eBay for the linear bearings and rails
Source a 600mm ground ball screw for the Z axis, that's my biggest stumbling block so far.
- Attachments
-
- One fine beer later
-
- The main frame laid out
-
- Finished table frame, this is the bit that slides back and forth on the X axis
-
- Step One
-
- The access holes
-
- Tapped end with screws. You don't screw through the opposed member, you slide the screw heads into the slots and then use the holes in the other member to get the Allen key in place. It means the system is infinitely adjustable to get everything square.
-
- As delivered, lots of tape and shrink wrap. The big parcel weighs about 30kg so still easy to handle
-
jackssmirkingrevenge
- Five Star General
- Posts: 26216
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 576 times
- Been thanked: 347 times
Looks like it's going to be pretty sturdy, good stuff!
hectmarr wrote:You have to make many weapons, because this field is long and short life
Too hot to work in the yard, touching 32 outside so a bit of shed time is needed.
Christmas in Oz, 100 degrees in the shade, shed, beer, CNC, browsing SpudFiles.
I made up the linear slide assemblies for the x-axis last night and this morning, pretty happy with them so far.
Everything is still a dry fit mock up for now, I intend to pretty much assemble the whole thing except for electronics to learn from my mistakes then tear it down and do an accurate final build.
After several hours work, my lady's comment was "so it slides, big deal"
More photos
Christmas in Oz, 100 degrees in the shade, shed, beer, CNC, browsing SpudFiles.
I made up the linear slide assemblies for the x-axis last night and this morning, pretty happy with them so far.
Everything is still a dry fit mock up for now, I intend to pretty much assemble the whole thing except for electronics to learn from my mistakes then tear it down and do an accurate final build.
After several hours work, my lady's comment was "so it slides, big deal"
More photos
- Attachments
-
- Like it says, table on rails. The 1600mm rods and the offset bearings allow the 1000mm table to slide completely under the gantry meaning I will get my full cut area.
-

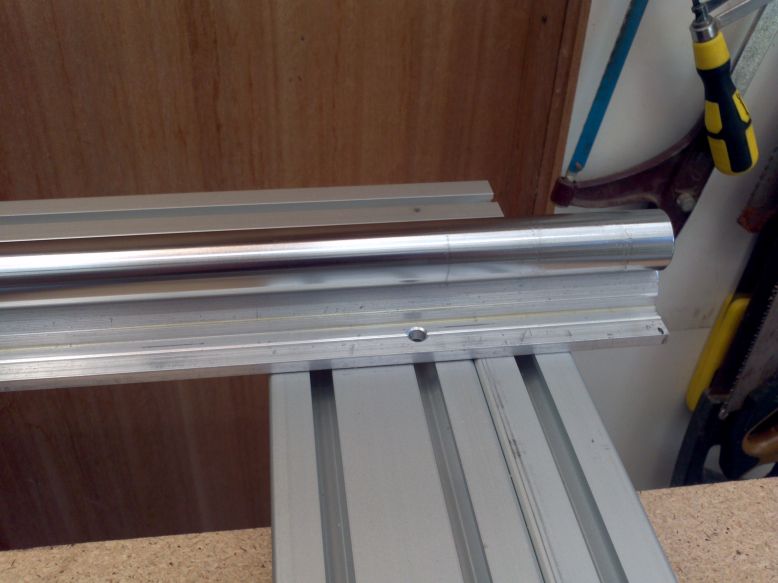

- These are 25mm case hardened rods mounted on an aluminium carrier. Each is 1600mm long.
-
