please help quick with my piston

covey12 · Mon May 04, 2009 5:45 pm

hey guys i need to finish a piston valve by the end of this week, and from previous experiences im going to make it serviceable.
how do i do this? do i just put in the end cap and put some screws in there, how will that make it air tight,

jonnyboy · Mon May 04, 2009 5:47 pm

look in the showcase there are many ways. Pick your favorite.

jmeyer1022 · Mon May 04, 2009 5:54 pm

http://www.spudfiles.com/forums/viewtop ... tml#240585
Pretty basic idea how to build my current valve

and my old one which is simple as well,
http://www.spudfiles.com/forums/how-i-b ... ter,0.html

covey12 · Mon May 04, 2009 5:57 pm

jmeyer1022 wrote:http://www.spudfiles.com/forums/viewtop ... tml#240585
Pretty basic idea how to build my current valve

and my old one which is simple as well,
http://www.spudfiles.com/forums/how-i-b ... ter,0.html

ty, i am actually using a 2", 1.5" piston

covey12 · Wed May 06, 2009 1:39 pm

jmeyer1022 wrote:http://www.spudfiles.com/forums/viewtop ... tml#240585
Pretty basic idea how to build my current valve

and my old one which is simple as well,
http://www.spudfiles.com/forums/how-i-b ... ter,0.html

not to be rude, but i know how to build everything except how to make it serviceable, can i just use screws to hold in the plug

Technician1002 · Wed May 06, 2009 2:05 pm

covey12 wrote:hey guys i need to finish a piston valve by the end of this week, and from previous experiences im going to make it serviceable.
how do i do this? do i just put in the end cap and put some screws in there, how will that make it air tight,

With the right size pipe in a female adaptor for the piston, it could be put in as an assembly with a removable plug. My Mouse Musket 1 inch coaxial uses this as well as my Dragon with a 2.5 inch barrel and 3 inch piston.

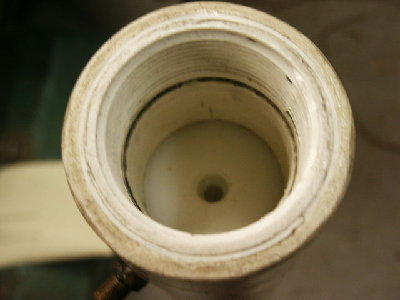

Attached is a photo of the breech open on the Mouse Musket. This would work in a T.
