" Old Shatterhand" 5 shot mag now cycling on vid.
-
POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
the stock is amazing...
Children are the future
unless we stop them now
unless we stop them now
-
Lentamentalisk
- Sergeant 3
- Posts: 1202
- Joined: Tue Aug 07, 2007 5:27 pm
- Location: Berkeley C.A.
absolutely beautiful.
The one thing I don't get is how the hammer striking the strike pad thing, actually opens the valve. Is there some sort of twisting thing inside?
The one thing I don't get is how the hammer striking the strike pad thing, actually opens the valve. Is there some sort of twisting thing inside?
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
see a reply after these pics...
WOW is all i can say.
i do not have the patience to do something like this but i would REALY like to shoot it
WOW is all i can say.
i do not have the patience to do something like this but i would REALY like to shoot it
Last edited by c11man on Sat Apr 11, 2009 6:31 pm, edited 2 times in total.
-
Brian the brain
- Moderator
- Posts: 3497
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 6 times
The striker pivots from its seat on the opposite side.
Well..this seat is just a hole..
It is held upwards by the hammervalve spring, wich it meets in the middle.
The striker gives me more leverage to open the valve at high pressure, and it enables me to bring the hammer out like that.
Thanks for the great reception guys.I was beginning to wonder if I had done something wrong.
Well..this seat is just a hole..
It is held upwards by the hammervalve spring, wich it meets in the middle.
The striker gives me more leverage to open the valve at high pressure, and it enables me to bring the hammer out like that.
Thanks for the great reception guys.I was beginning to wonder if I had done something wrong.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
-
Brian the brain
- Moderator
- Posts: 3497
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 6 times
Ive made a hammer valve piolted QEV gun before.
At 35 bar ( 500 spi) it was it was possible to hammer the valve directly.
I've also tried it with unregulated CO2, at 800 psi, wich was possible...With a freakin sledgehammer.
So...I expect it to be possible at 600 thanks to the leverage the striker adds to the concept.
A lot depends on hammer weight though.And in a lesser degree on the spring strenght.
The hammer that I've put on currently might work, or might be to light.
I'll first have to get it to work to find that out, so I can do what's neccesary to get the job done.
At 35 bar ( 500 spi) it was it was possible to hammer the valve directly.
I've also tried it with unregulated CO2, at 800 psi, wich was possible...With a freakin sledgehammer.
So...I expect it to be possible at 600 thanks to the leverage the striker adds to the concept.
A lot depends on hammer weight though.And in a lesser degree on the spring strenght.
The hammer that I've put on currently might work, or might be to light.
I'll first have to get it to work to find that out, so I can do what's neccesary to get the job done.
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Wow BtB, you got Parkinson's? 3 in a row, that's some serious skill ^^
I worship thee and thy work, all hail the master of spud blasting... :salute: :cheers:
I worship thee and thy work, all hail the master of spud blasting... :salute: :cheers:
"J'mets mes pieds où j'veux, et c'est souvent dans la gueule."
Neat! How did you make that hammer?
-
Brian the brain
- Moderator
- Posts: 3497
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 6 times
They're all just lockparts.
I mean the thing that keeps your door locked.
I'll have to replace the hammer axle for a longer one.I intend to have an internal hammerspring, but I can fit it under the right side cover...so I'll extend the axle and do it on the left side..
If all fails, I can still use an external spring...but that's ugly!!
Tomorrow I'll visit another second hand market ( big yardsale) so I'll see if I can get some more interesting brass bits...
I mean the thing that keeps your door locked.
I'll have to replace the hammer axle for a longer one.I intend to have an internal hammerspring, but I can fit it under the right side cover...so I'll extend the axle and do it on the left side..
If all fails, I can still use an external spring...but that's ugly!!
Tomorrow I'll visit another second hand market ( big yardsale) so I'll see if I can get some more interesting brass bits...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
hi
nice project you have. what pressure can the chamber hold max? do you think it hold co2 pressure?
if it holds co2 pressure why not build this thing ready for use with co2? that would be nice....

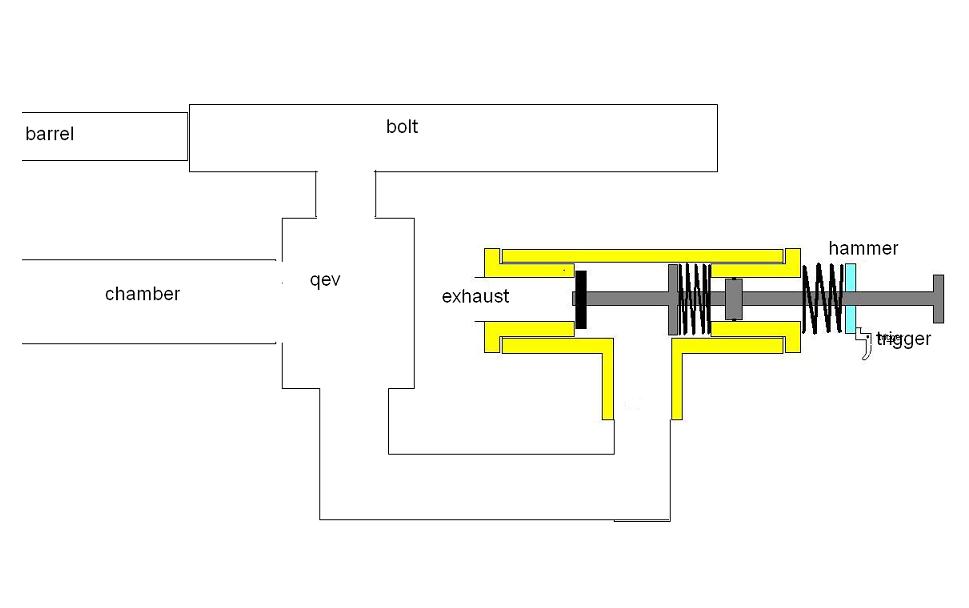

sorry for spam you (i post this before) but this allowed pilot the qev easy with lower hammer weights and lower trigger weights.
the pic say all you need
nice project you have. what pressure can the chamber hold max? do you think it hold co2 pressure?
if it holds co2 pressure why not build this thing ready for use with co2? that would be nice....
sorry for spam you (i post this before) but this allowed pilot the qev easy with lower hammer weights and lower trigger weights.
the pic say all you need
- Attachments
-
- hamm2.JPG (32.29 KiB) Viewed 5708 times
-
Brian the brain
- Moderator
- Posts: 3497
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 6 times
Indeed it will hammer lighter, but I've already thought of an even better design that works on the same principle.However, I already had the hammervalve so I'll go with that.
I could use CO2, but I have a fridgecompressor that can fill at the same pressure.
I feel safer using only 42 bar , or 600 psi.It's plenty.
Thanks for the heads-up.

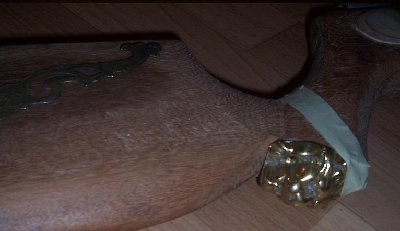

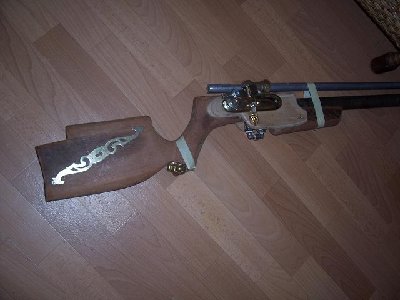

New pictures!! ( again!...this is a build-log isn't it)
I managed to get the coilspring in there, without the need for a longer axle.
THE HAMMER WORKS!!!

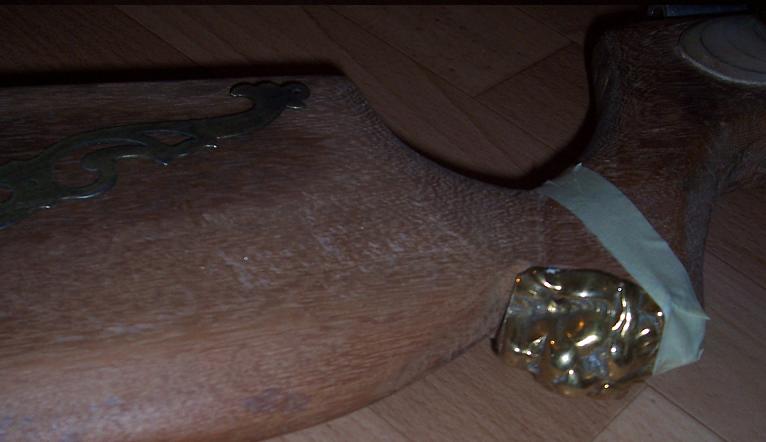

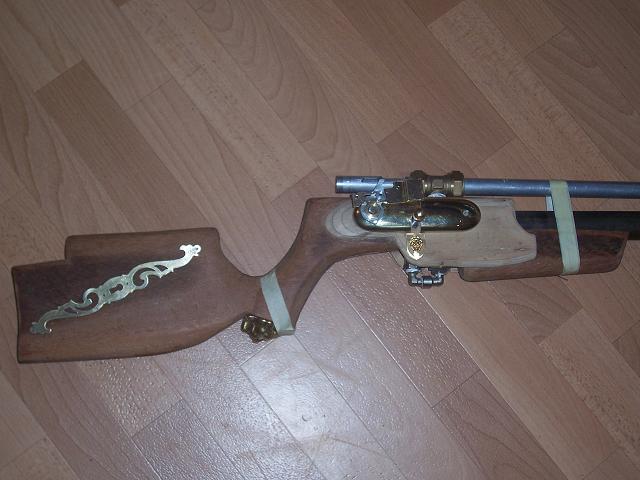

I found some interesting doo-das at a yard sale to pimp the gun..
A massive lions head for the butt of the handle, one smaller one for the side.
Well...just look:
I could use CO2, but I have a fridgecompressor that can fill at the same pressure.
I feel safer using only 42 bar , or 600 psi.It's plenty.
Thanks for the heads-up.
New pictures!! ( again!...this is a build-log isn't it)
I managed to get the coilspring in there, without the need for a longer axle.
THE HAMMER WORKS!!!
I found some interesting doo-das at a yard sale to pimp the gun..
A massive lions head for the butt of the handle, one smaller one for the side.
Well...just look:
- Attachments
-
-
-
-
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
At least someone who keeps his buildlog up to date.
Great pics so far. Yard-sale pimpin pieces look nice.
Great pics so far. Yard-sale pimpin pieces look nice.
-
Lentamentalisk
- Sergeant 3
- Posts: 1202
- Joined: Tue Aug 07, 2007 5:27 pm
- Location: Berkeley C.A.
Oh lordy... Steampunk here we come
next you just need to put a huge scope on it like in Back to the Future
its looking great.
next you just need to put a huge scope on it like in Back to the Future
its looking great.
Do not look back, and grieve over the past, for it is gone;
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
Do not be troubled about the future, for it has not yet come;
Live life in the present, and make it so beautiful that it will be worth remembering.
I was hoping I wouldn't have to say the S word, but lent, now that you have brought it up, I must admit this is the best steampunk styling I have ever seen, I guess I mostly just hate the people that make stuff look grungy, or add springs and screws for visual effect. Because all of that is functional, I can allow myself to like this gun
