Plans for a piston gun.

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Post Reply
User avatar
elad311
Private 4
Private 4
Posts: 94
Joined: Sat Oct 04, 2008 7:48 am

Sat Dec 19, 2009 8:51 am

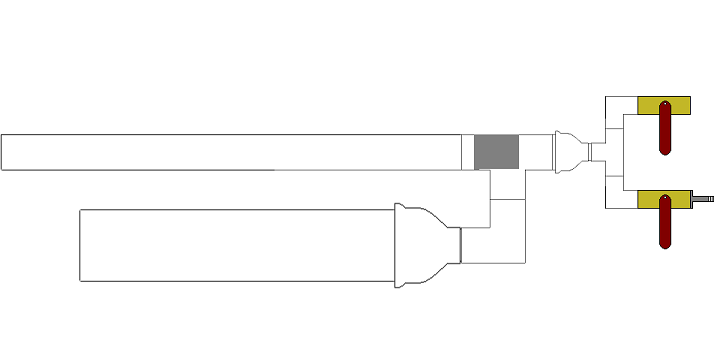

I was cleaning my computer when I came across with those plans for
a piston gun:
I'm guessing that the grey part is the piston and the ratio between the barrel and the comber is 1:2.
Do you think it will work?
Attachments
Weird... I don't even remember that..
Weird... I don't even remember that..
Pneumatic spudgun_piston1.PNG (10.42 KiB) Viewed 2988 times
Top
User avatar
velocity3x
Corporal 4
Corporal 4
Posts: 828
Joined: Fri Jun 05, 2009 3:09 pm
Location: Yuma, Arizona
Contact:
Contact velocity3x

Sat Dec 19, 2009 8:56 am

Although very crude, it can work if constructed properly.
Top
User avatar
RabidDuck
Private 4
Private 4
Posts: 82
Joined: Sat Nov 01, 2008 10:11 am
Location: Minnesota, United States

Sat Dec 19, 2009 11:36 am

you may want to change that ball valve out for a modded sprinkler valve with a blow gun, for your pilot.
Top
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 344 times

Donating Members

Sat Dec 19, 2009 1:51 pm

elad311 wrote:I'm guessing that the grey part is the piston and the ratio between the barrel and the chamber is 1:2
More like 1:4
Do you think it will work?
The piston needs to be longer, as it is the chamber will just empty through the pilot, also there's too much dead space.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Top
User avatar
Gippeto
First Sergeant 3
First Sergeant 3
Venezuela
Posts: 2504
Joined: Sat Jan 19, 2008 10:14 am
Location: Soon to be socialist shit hole.
Has thanked: 2 times
Been thanked: 17 times

Donating Members

Sat Dec 19, 2009 11:35 pm

Might want to give some consideration to creating differential area (piston) as well as Jacks suggestions.
"It could be that the purpose of your life is to serve as a warning to others" – unknown

Liberalism is a mental disorder, reality is it's cure.
Top
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Mon Dec 21, 2009 8:57 am

1:1 will be enough.

The piston valve won't work that way. It needs to seal onto a porting.
This is just a T with a piston in it, not a piston valve.
Check out the "piston valves explained visually" thread for more information on how piston valves work.
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Mon Jan 25, 2010 7:00 pm

there is no need for the ball valve on the bottom.
Top
User avatar
psycix
Sergeant Major 4
Sergeant Major 4
Posts: 3684
Joined: Mon Jun 25, 2007 7:12 am
Location: The Netherlands

Donating Members

Tue Jan 26, 2010 4:39 am

Only if you are using a shrader to fill.
If you are using a quick connect, you'll have to close it before disconnecting. However, you could vent through the quick connect, and leaving the top BV out.
Saves a lot of pilot volume. (T and two elbows)

Kinda old thread you dug up though.
Till the day I'm dieing, I'll keep them spuddies flying, 'cause I can!

Spudfiles steam group, join!
Top
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Tue Jan 26, 2010 11:21 am

Oh my bad :P Didn't realize. This thread was at the top of the Pneumatic Cannon Discussion :roll:
