Gas Sampling Cylinder Paintball Rifle

[Tetsuo315]

This is the first noob cannon I ever built. I had my doubts though when I was in the planning stages. I did not think I would be able to use the gas sampling cylinder for the air chamber. As luck would have it, the cylinder uses NPT threads. That allowed me to use compression fittings, quick connects, and a pressure gauge. The cylinder was MFG. by Precision Scientific Inc. of Chicago. My father brought three home one night from an oil refinery he used to work at in Ohio. These devices can handle pressures in excess of 1000 psi. I felt that it would make a nice chamber as long as I kept the ratio proportionent. Unfortunately the PVC fittings and sprinkler valve can't take pressures that high. No more than 145 psi (if that) on the valve. When using GGDT to find out the power of the rifle, I was not sure what values to put in for my sprikler valve. So, I used the specs of the 1" valve off of the GGDT site. I lowered the flow efficiency rate for my Rainbird(Rainbirds tend to open slower than Watermasters) and pluged in the specs for my valve that I could find out. Here is a partial GGDT result. See pic for full specs:

Chamber 2.0265"ID X 10.1875"L
Barrel/Bore (.695"ID Approx.) X 42"L 3/4 CPVC
PB Projectile 3 Grams .690"D + or -
135 Psi/9.6 Bar
812 Ft/s
67.9 Ft*lbs Kinetic Energy

I think that the muzzle velocity here from GGDT is somewhat optimistic. I will have to wait until I can get a hold of my Grandfathers chronograph to be certain. A Couple things I learnt when making this. A Sprinkler valve makes a nice LOUD!! air horn. This is a fun hobby if not taken for granted.

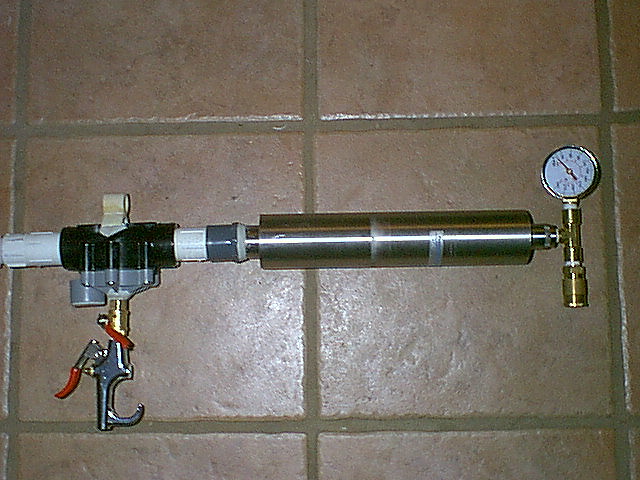

I noticed that the basic Husky blowgun(8 bucks @ Lowes) needs some modding. The sprinkler valve mod how-to says to use a 1/4" NPT nipple or hose barb. If you use a 1/4" nipple in conjuction w/ a Husky blowgun, your pilot hole goes from 1/4" down to 1/16". Thats still ok If you use a small bore barrell, otherwise it will honk. So I widened the ports in the blowgun as close to 1/4" as possible w/ a drill press. That solved the lovely honking. Well here are few pics of the rifle and some damage done with a paintball at high velocity.

This is the coolest sight I have ever visted. The rifle would not have been possible without this resource.

[)DEMON(]

THAT IS AMAZING!!and you certainly know what your talking about, that cannon is great. How do you hold it?
I expect to see plenty cool cannons from you.

[CS]

Nice and clean! Even more powerful. The metal chamber makes it look very clean. This by far doesnt look like a first cannon... That damage to the acrylic is amazing! Like Demon said, surely stick around the hobby. Im very suprised at such a new member with good grammar, you know there is members with over 200 posts that still cant spell 3 letter words and/ or capatalize...

[Tetsuo315]

Thanks for the comments. It is indeed my first cannon. There are a few flaws that need some working out. After the chamber has been charged, there is a very small leak. It may be inside the valve. I have opened it several times for modding, so it might be PVC dust or other fine debri. I might leave the leak though, and use it as a slow discharge for saftey reasons. Second CPVC at 42 inches in length is not too rigid. I'm thinking about sleeving a new barrel for use with PBs.

There is a 3"D X 15"L PVC Chamber waiting to be pressure tested for use with this cannon. I could not do this project without making a homebrew chamber. My first PVC chamber had a leak(forgot to give the fittiings a 1/4 twist). Found yet another resource here at Spudfiles for solvent welding. So we will see what happens.

I use the white fitting just before the barrell as a forearm. My trigger hand rests with the shape of the blowgun and ball valve. Sort of like an M-16 or PSG-1 sniper rifle. I'm thinking about adapting a wooden pistol grip and forearm to the cannon. This is definitely a new hobby in the making for me.

-tetsuo315
