A look inside the "bleacher reacher" t-shirt launcher

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Nov 11, 2015 11:57 am

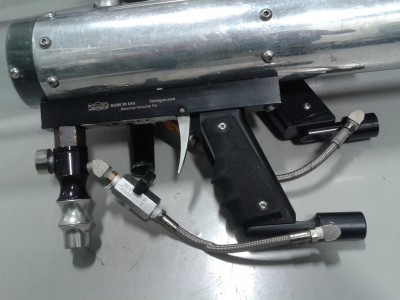

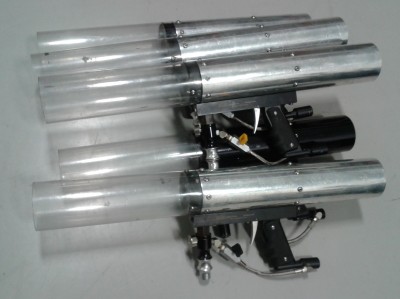

I had a bunch of these to service and though I'd share a look inside:

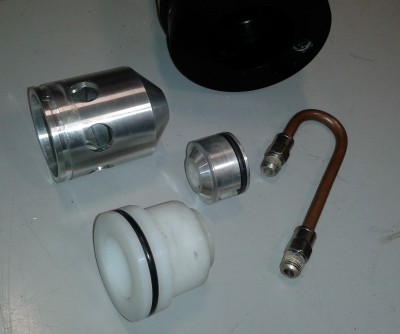

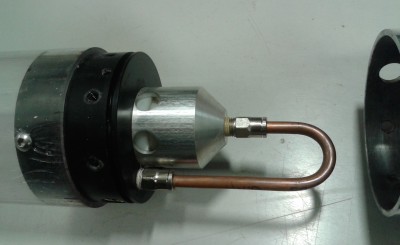

Standard exhaust valve setup but with an interesting configuration that has the piston seal at the front endcap but avoids using a spool or "toolie" type valve. There's no rubber seal on the piston face, it's aluminum on delrin, and it has a floating o-ring to allow air to be filled from the main tank but not to flow back when the pilot is actuated.

Operating in the 300-500 psi range, these things are pretty darn loud!

Also did I mention my workshop has an epoxy floor :D
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Wed Nov 11, 2015 1:22 pm

T-shirt cannon right? I think I have seem something similar somewhere.
Interesting piston setup, any chance of a video (launching something more interesting rather than T-shirts :D)?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Nov 11, 2015 10:21 pm

wyz2285 wrote:T-shirt cannon right?
I guess the post title of "t-shirt launcher" wasn't clear enough :P
nteresting piston setup, any chance of a video (launching something more interesting rather than T-shirts :D)?
perhaps ;)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Thu Nov 12, 2015 10:22 am

Ah the "T-shirt" parts got omitted when I saw it on the recent post section, my bad, :lol:
Still trying to remember where i have seem them, pretty pricey stuff too if I'm not mistaken.
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Nov 12, 2015 11:03 am

Manufaturer's page, pretty pricey indeed!

Here's a quick video accelerating an empty soda can at 300 psi:

[youtube][/youtube]
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Thu Nov 12, 2015 4:15 pm

Reminds me of this :D [youtube][/youtube]
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Sep 13, 2019 8:07 am

Another round of servicing, another chance to have a little fun with compressed air :D

[youtube][/youtube]
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Moonbogg
Staff Sergeant 3
Staff Sergeant 3
United States of America
Posts: 1733
Joined: Mon Oct 13, 2008 10:20 pm
Location: SoCal
Has thanked: 158 times
Been thanked: 100 times

Fri Sep 13, 2019 9:05 am

What does the chamber look like on these things? I suppose you might get in trouble for uploading a paint drawing of how this thing works?
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Sep 13, 2019 9:40 am

Moonbogg wrote:What does the chamber look like on these things?
You should be able to tell from the photos but here is a simplified diagram of the internals:


Green arrow shows where the air is filled from, this is then closed off and another valve is opened at the red arrow to empty the pilot volume and fire the launcher.

The piston has a floating o-ring that allows air to flow from the pilot chamber to the main chamber, but not the other way round.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Moonbogg
Staff Sergeant 3
Staff Sergeant 3
United States of America
Posts: 1733
Joined: Mon Oct 13, 2008 10:20 pm
Location: SoCal
Has thanked: 158 times
Been thanked: 100 times

Fri Sep 13, 2019 5:02 pm

Thanks for showing that. That's a really great design. I love the short piston travel and front-mounted configuration of the piston housing because that preserves chamber volume. I tried to design my last cannon that way years ago when I first started thinking about a piston hybrid design, but I couldn't find a way to vent a low volume, front-mounted housing like that in a way that i was happy with, but it makes perfect sense for a pneumatic.
No bumpers and up to 500psi? Looks like Delrin is a legit piston material. How does the piston hold up? What needed to be serviced in the cannons?
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 14, 2019 7:29 am

Moonbogg wrote:No bumpers and up to 500psi? Looks like Delrin is a legit piston material. How does the piston hold up?
The piston is actually aluminum, as is the housing, and with no bumpers to speak of there is no visible wear.
What needed to be serviced in the cannons?
Mostly leaky threaded connections, and a good cleaning inside because they are used for firing confetti as well and aren't always pressurized before the confetti is loaded up, so some of it gets in the chamber. If it gets between the piston and seat, this causes leaks.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Moonbogg
Staff Sergeant 3
Staff Sergeant 3
United States of America
Posts: 1733
Joined: Mon Oct 13, 2008 10:20 pm
Location: SoCal
Has thanked: 158 times
Been thanked: 100 times

Sat Sep 14, 2019 1:40 pm

Aluminum piston? Maybe there is a dashpot/air cushion effect preventing a hard slam. That's interesting. And a metal to metal seal. That's also interesting. Those are two things I would never consider to try, yet they work.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Mon Sep 16, 2019 9:23 am

There's no real design for cushioning the impact, it seems to me that it simply travels a short distance that isn't sufficient to cause any damage.
a metal to metal seal
The piston seats against delrin, the while component in this image. At these pressures I don't think metal on metal would work.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Brian the brain
Moderator
Moderator
Netherlands
Posts: 3496
Joined: Mon Dec 05, 2005 2:06 am
Location: Holland
Been thanked: 4 times

Tue Oct 15, 2019 3:23 am

Basically a coax with the reservoir pointed in the opposite direction...I like it!
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!

Can't ask for a better compliment!!
5150cannon
Recruit
Recruit
United States of America
Posts: 2
Joined: Wed Mar 31, 2021 9:07 pm
Has thanked: 2 times
Been thanked: 1 time

Wed Mar 31, 2021 9:24 pm

Does anyone have the internal design of the trigger mechanisms for the t-shirt launcher?
