Yet another QEV and 3/2 valve cannon

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Xenophile
Private 2
Private 2
United States of America
Posts: 29
Joined: Sat May 07, 2011 10:16 pm
Has thanked: 6 times
Been thanked: 7 times

Sat Sep 19, 2020 6:09 pm

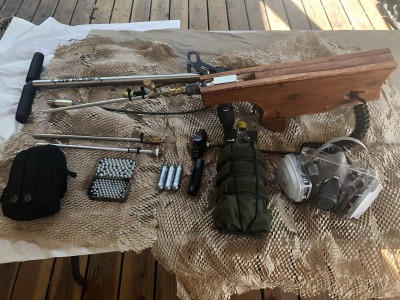

Overview of FS resized.jpg
My latest creation. As the title suggests, I using a QEV and 3 position 2 way valve with a 300 psi input from a regulated HPA paintball tank. I have two different barrels, one for 3/8 inch (9.5 mm) steel shot and another for .30 caliber steel shot. The 3/8 inch barrel is currently muzzle loading, but I plan on eventually installing a breach like the one I made for the .30 barrel. The projectiles are held in place with neodymium magnets before firing. The stock is made from some cheap pine that I stained with a polyurethane stain. Eventually I plan on making an integral tubular magazine for the .30 barrel from a "T" fitting.
Ballistics gel test 2.jpg
This is a test using some homemade ballistics gel. I made a 4 Liter block with a standard 10% mix. The 3/8 in shot went in 7 inches and the .30 shot went in 5 inches.

Overall, I'm very happy with this build. I'd love to hear your thoughts!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Oct 07, 2020 4:04 pm

I love the look, and good performance too! Always nice to see people pushing the envelope when it comes to pressure.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Xenophile
Private 2
Private 2
United States of America
Posts: 29
Joined: Sat May 07, 2011 10:16 pm
Has thanked: 6 times
Been thanked: 7 times

Thu Oct 15, 2020 5:46 pm

Thanks JSR, I'm glad you like it!
I've completed a gravity fed magazine ( 10 shot capacity for .30 caliber shot) which is working fairly well, but I am having some issues with double feeding.

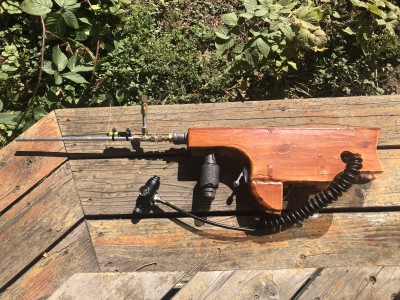

Air gun overview .jpg
I'm using a "detent" system with neodymium magnets to keep the shot in place, but this seems to be unreliable. Anyone here know of a good way to construct a magazine (or other device) to minimize double feeds and improve reliability?

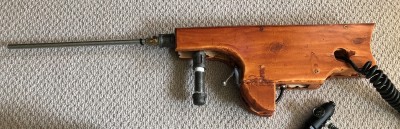

Air gun accessories .jpg
I also got another picture showing the completed cannon with all accessories. This gun continues to be an absolute blast to shoot, and gets fairly good gas efficiency. I get around 50 shots from a tank filled to 100 bar (1450.38 psi).

Still to come is a breach for the 9.5mm barrel and maybe a suppressor, although it's only slightly louder than a traditional pellet rifle. Maybe better optics than my hastily crafted laser?
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Oct 16, 2020 8:44 am

Xenophile wrote:
Thu Oct 15, 2020 5:46 pm
I'm using a "detent" system with neodymium magnets to keep the shot in place, but this seems to be unreliable. Anyone here know of a good way to construct a magazine (or other device) to minimize double feeds and improve reliability?
One idea would be to have a pressure actuated element that physically blocks the next projectile in the magazine, here are some rough ideas I had sketched:



A spring-loaded detent might also do the trick, it's what my Brazilian Fionda uses and it works quite well, no double feeds.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Xenophile
Private 2
Private 2
United States of America
Posts: 29
Joined: Sat May 07, 2011 10:16 pm
Has thanked: 6 times
Been thanked: 7 times

Thu Nov 26, 2020 11:36 am

Thanks for the idea JSR!
I continue to make more modifications and improvements to this thing.

For example, I've added a scope, and a proper laser sight (not shown, on the other side) for greater accuracy at longer ranges.

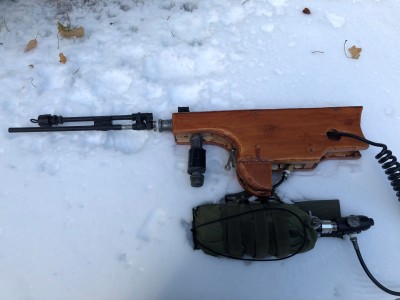

snow with bolt action 2.jpg
