So I've been working on the Pipe Dream design trying to firm up combustion properties and the like. In talking to an online friend on another forum....
...Turns out he's a PhD who specializes in turbulence issues while he dabbles in combustion. Woohoo!
Anywho, he was asking if I was planning to use "triangle strips" to induce turbulence in the flame front. I've not had any chance to research this at all (although the name is pretty self explanatory), but I was wondering if any of you folks have used such methods?
Triangle strips. Anybody got any experience with 'em?
Was he aware of the fans we use in typical combustion chambers to induce turbulence? Did he elaborate on the "triangle strip" effectiveness, placement, etc. It wouldn't be hard to mock something up to test, but getting real performance data would be tedious.D_Hall wrote:So I've been working on the Pipe Dream design trying to firm up combustion properties and the like. In talking to an online friend on another forum....
...Turns out he's a PhD who specializes in turbulence issues while he dabbles in combustion. Woohoo!
Anywho, he was asking if I was planning to use "triangle strips" to induce turbulence in the flame front. I've not had any chance to research this at all (although the name is pretty self explanatory), but I was wondering if any of you folks have used such methods?
-
jimmy101
- Sergeant Major 2
- Posts: 3206
- Joined: Wed Mar 28, 2007 9:48 am
- Location: Greenwood, Indiana
- Has thanked: 6 times
- Been thanked: 18 times
- Contact:
Sounds similar to Schelerin (SP?) coils.
I wonder though if any type of a restriction designed to introduce turbulance might actually hurt performance. Heat loss appears to be the major limiting factor in a typical combustion gun. If you speed up the burn rate by baffles etc. then you probably also significantly increase heat loss. There just isn't very much energy in the gases, and what energy there is is all present as very high termperature.
I don't think anyone has every tried this particular approach, or they haven't posted it here or at SpudTech.
DR did some experiemnts with pre-combustion chambers and jet injection. Idea was that the first chamber is ignited and the jet of hot burning gases injects into a second chamber generating lots of turbulance. Worked great for making a huge bang with low mass, low friction ammo, didn't do anything with practical ammo.
I wonder though if any type of a restriction designed to introduce turbulance might actually hurt performance. Heat loss appears to be the major limiting factor in a typical combustion gun. If you speed up the burn rate by baffles etc. then you probably also significantly increase heat loss. There just isn't very much energy in the gases, and what energy there is is all present as very high termperature.
I don't think anyone has every tried this particular approach, or they haven't posted it here or at SpudTech.
DR did some experiemnts with pre-combustion chambers and jet injection. Idea was that the first chamber is ignited and the jet of hot burning gases injects into a second chamber generating lots of turbulance. Worked great for making a huge bang with low mass, low friction ammo, didn't do anything with practical ammo.
-
Fnord
- First Sergeant 2
- Posts: 2239
- Joined: Tue Feb 13, 2007 9:20 pm
- Location: Pripyat
- Been thanked: 1 time
- Contact:
Got a link by chance?DR did some experiemnts with pre-combustion chambers and jet injection.
I've been thinking about building a gun that accelerates the flame front through a pre-combustion tube with a schelkin spiral (even bought most of the parts needed) but I'd like to know more about this before I put things together.
-
SpudBlaster15
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Wed Jul 14, 2021 6:40 pm, edited 1 time in total.
I googled somewhat here and there but most of the triangle strip hits refer to something with graphical computer rendering.
Has anyone some link or pic to show what a triangle strip actually is and how it works?
Has anyone some link or pic to show what a triangle strip actually is and how it works?
-
D_Hall
- Staff Sergeant 5
- Posts: 1924
- Joined: Thu Feb 07, 2008 7:37 pm
- Location: SoCal
- Has thanked: 8 times
- Been thanked: 44 times
Let's see if I can hit everybody's questions...
* I don't think he was aware of the fans commonly used. I mentioned them, but I've not heard a response from him on that topic (remember, 'tis a net aquaintance of mine).
* He flat out stated that the use of baffles/grids could work, but it could also hurt; that one would have to be extremely careful if one chose to go that route.
* I've not had any luck with google either.
* I don't think he was aware of the fans commonly used. I mentioned them, but I've not heard a response from him on that topic (remember, 'tis a net aquaintance of mine).
* He flat out stated that the use of baffles/grids could work, but it could also hurt; that one would have to be extremely careful if one chose to go that route.
* I've not had any luck with google either.
-
jimmy101
- Sergeant Major 2
- Posts: 3206
- Joined: Wed Mar 28, 2007 9:48 am
- Location: Greenwood, Indiana
- Has thanked: 6 times
- Been thanked: 18 times
- Contact:
Here is the link to what DR (aka BewareOfDog) did
http://www.spudfiles.com/spudtech_archi ... =17&t=9011
It's a 5 page thread. Unfortunately the images appear to be missing?
The post that got him started was by man_o_brass based on a post by plasticex
http://www.spudfiles.com/spudtech_archi ... =17&t=8879
There is a bit more info on flame front accelration caused by obstacles at the Gexcon site (http://www.gexcon.com/index.php?src=han ... Bchap5.htm).
http://www.spudfiles.com/spudtech_archi ... =17&t=9011
It's a 5 page thread. Unfortunately the images appear to be missing?
The post that got him started was by man_o_brass based on a post by plasticex
http://www.spudfiles.com/spudtech_archi ... =17&t=8879
There is a bit more info on flame front accelration caused by obstacles at the Gexcon site (http://www.gexcon.com/index.php?src=han ... Bchap5.htm).
-
Fnord
- First Sergeant 2
- Posts: 2239
- Joined: Tue Feb 13, 2007 9:20 pm
- Location: Pripyat
- Been thanked: 1 time
- Contact:

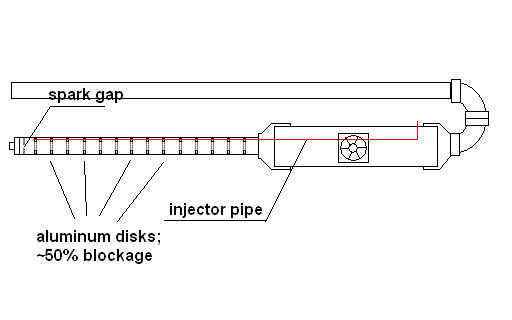

I was thinking of something more like this. I don't see how DR's design would have helped a whole lot.
This would be made from abs by the way. I don't think I would trust anything brittle such as pvc, since this is essentially pushing the flame front towards DDT conditions. I doubt propane/air would create a transition in a small scale such as this, but who knows?
This would be made from abs by the way. I don't think I would trust anything brittle such as pvc, since this is essentially pushing the flame front towards DDT conditions. I doubt propane/air would create a transition in a small scale such as this, but who knows?
- Attachments
-
- The injector pipe has tiny holes down the length of it for even fuel distribution.
- accelerator.GIF (4.36 KiB) Viewed 3013 times
@_Fnord
That might work BUT
In the "runup pipe" the flame front is slow and slowly increases pressure over the whole chamber.
When the chamber finally ignites (quickly) the pressure raises not at much as normal due to the volume in the runup pipe.
The "runup pipe" should be small diameter since this will reduce the volume of it.
That might work BUT
In the "runup pipe" the flame front is slow and slowly increases pressure over the whole chamber.
When the chamber finally ignites (quickly) the pressure raises not at much as normal due to the volume in the runup pipe.
The "runup pipe" should be small diameter since this will reduce the volume of it.
