all in the subject title :
what do you think about this piston systeme ?
i need your comments !
what do you think about this piston systeme ?
-
SpudBlaster15
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Wed Jul 14, 2021 7:15 pm, edited 1 time in total.
-
SpudBlaster15
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Wed Jul 14, 2021 7:15 pm, edited 1 time in total.

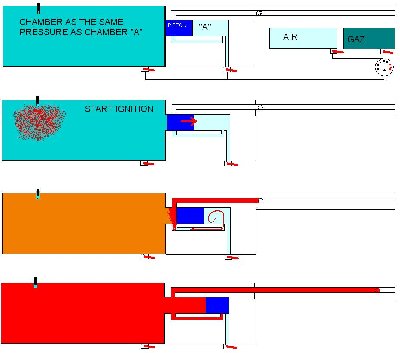

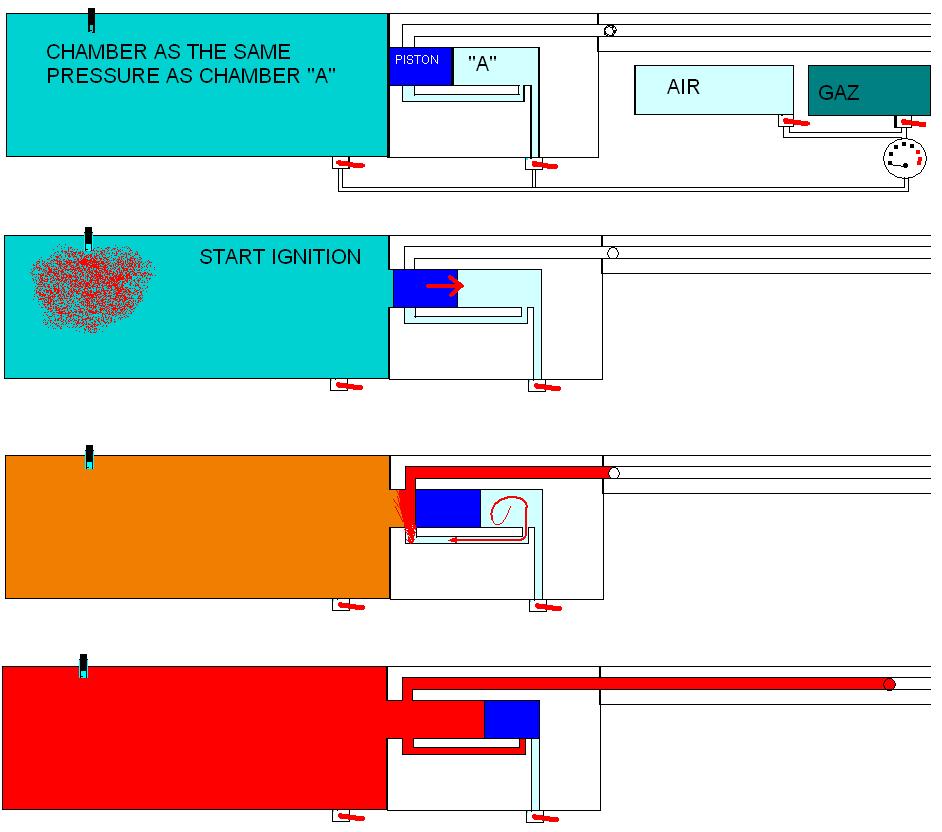

I think I'd better point out the error in the third image.
If the "piston" is moving, the main chamber is clearly at a higher pressure than chamber A - so the air flow wouldn't be from Chamber A, it would be INTO chamber A.
Yes, you ideally need to get chamber A to vent, but it needs to be to atmosphere - for which SpudBlaster's idea would work.
If the "piston" is moving, the main chamber is clearly at a higher pressure than chamber A - so the air flow wouldn't be from Chamber A, it would be INTO chamber A.
Yes, you ideally need to get chamber A to vent, but it needs to be to atmosphere - for which SpudBlaster's idea would work.
Does that thing kinda look like a big cat to you?
yes i think about non-return valve to vent the volume of air in 'Chamber A' to another chamber 'B'.
After shot , can reinject this volume in chamber 'A', its quick to set up another shot[img]C:\Documents%20and%20Settings\mam\My%20Documents\My%20Pictures\untitled.JPG[img][/img]
After shot , can reinject this volume in chamber 'A', its quick to set up another shot[img]C:\Documents%20and%20Settings\mam\My%20Documents\My%20Pictures\untitled.JPG[img][/img]
![[img]http://images.imagehotel.net/3qe1dc5lmk.jpg[/img]](http://www.imagehotel.net/?from=3qe1dc5lmk.jpg){kind=link}
Hey ceizz, ton idée est super compliquée pour pas grand chose! Imagine qu'au moment de la combustion, la pression augmente dans les chambre, fait reculer le piston, donc derriere le piston, la pression augmente tres rapidement. Pour eviter trop de pression tu peux mettre une valve pop-off au bout du tube dans lequel le piston bouge. De cette maniere, quand le piston aura comprimé suffisament l'air derriere, la pression sera trop grande, la valve pop-off s'ouvre en laissant le surplus s'echapper, et les gaz de combustion peuvent pousser le projectile. A mon avis, il faudrait mesurer quelle pression tu veux utiliser (quel mix) pour determiner la pression de claquage de la pop-off
If someone has issues with me replying in french to him, let me know, i'll just say somehting in english and PM the answer in french.
I basicly said that the idea is too complicated for something much simpler. Putting a pop-off at the end of the piston cylinder would be much more practical, and an adjustable would allow for different mixes to be used.
If someone has issues with me replying in french to him, let me know, i'll just say somehting in english and PM the answer in french.
I basicly said that the idea is too complicated for something much simpler. Putting a pop-off at the end of the piston cylinder would be much more practical, and an adjustable would allow for different mixes to be used.
"J'mets mes pieds où j'veux, et c'est souvent dans la gueule."
salut CpTn_lAw, je suis d acord avec la pop-off mais a chaque tire ya une projection d air qui sert a rien alors que ce que j essaye de trouver c'est une solution pour "recycler l air'' et c'est aussi reglabe celon les mix en fonction de la pression qu'on met a l arriere du piston. non ? lol
j ai peut etre pas compris le principe de la pop-off aussi:
quand la pop off claque elle libere toute la pression ou il en reste un peu, vu que c'est un ressort dans la pop-off ????
je suis entrain d essayer de calculer avec HGDT le mix et les dimension de la chambre c pas facil c tout en anglais et les mesures aussi super !!
hi CpTn_lAw i am ok with the pop-off valve, but for every shot there is a air realese in atmosphere for nothing, i try to get the solution for recycle this air volume, its also Adjustable like pop-off up to the mix and pressur in chamber 'A'. allright ?
maeby i don 't understand the pop-off fully ! is it relaese all the pressur in chamber 'A' or not yet because there is a spring inside ?
i trying to understand the software HGDT now, it's not easy for a french man know only "les metre et les centimetres" !!!
i like this forum its funny to write english !!
j ai peut etre pas compris le principe de la pop-off aussi:
quand la pop off claque elle libere toute la pression ou il en reste un peu, vu que c'est un ressort dans la pop-off ????
je suis entrain d essayer de calculer avec HGDT le mix et les dimension de la chambre c pas facil c tout en anglais et les mesures aussi super !!
hi CpTn_lAw i am ok with the pop-off valve, but for every shot there is a air realese in atmosphere for nothing, i try to get the solution for recycle this air volume, its also Adjustable like pop-off up to the mix and pressur in chamber 'A'. allright ?
maeby i don 't understand the pop-off fully ! is it relaese all the pressur in chamber 'A' or not yet because there is a spring inside ?
i trying to understand the software HGDT now, it's not easy for a french man know only "les metre et les centimetres" !!!
i like this forum its funny to write english !!
In many cases, it is often actually a better solution to waste a little air than go to the effort of trying to avoid losing it. In this case, I don't think it will harm performance trying to keep that air, but it will add complexity.ceizz wrote:...mais a chaque tire ya une projection d air qui sert a rien alors que ce que j essaye de trouver c'est une solution pour "recycler l air"...
Feel free to go at it either way, but avoid getting too hung up on the idea of avoiding venting to atmosphere, because in some cases, it is actually the best solution.
Does that thing kinda look like a big cat to you?
-
POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
click on file and choose configurationit's not easy for a french man know only "les metre et les centimetres" !!!
there you can switch units to metric units
voila!!
Children are the future
unless we stop them now
unless we stop them now
