Paddle/interupting feed system ?s

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
iPaintball
Corporal 2
Corporal 2
Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm

Thu Aug 09, 2007 7:17 pm

I recently set out to modify my broken Crosman 357 10 shot pellet revolver to be able to shoot 6mm airsof BBs. I plan to run a tubular magazine(Bic pen tube) under the barrel that will hold 18 shots. The magazine will then run into the bottom port of a 1/8" brass tee. The barrel will run through the side ports, one side pressing against the Co2 nozzle, and the other side running out of the plastic gun enclosure. My main question is this: Will a paddle/interrupter feed system work if the magazine is spring loaded?

I have only seen this done with a gravity magazine, so I just don't know if it will work. Any help, suggestions, comments, etc. will be appreciated!
Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
User avatar
VH_man
Staff Sergeant 4
Staff Sergeant 4
Posts: 1827
Joined: Sat Dec 09, 2006 6:00 pm
Location: New Hampshire
Been thanked: 1 time

Thu Aug 09, 2007 7:23 pm

It might not. id go for a blow-foward bolt design, or make the paddle push the actual bb into the barrel before it fires. and have fun making a paddle interrupter that small........
User avatar
iPaintball
Corporal 2
Corporal 2
Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm

Thu Aug 09, 2007 7:25 pm

I already did. Most of this is already constructed.
Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
User avatar
origin unknown
Corporal
Corporal
Posts: 533
Joined: Sat Apr 14, 2007 2:38 pm
Location: Searcy, Arkansas (college) and Memphis, TN (hometown)

Thu Aug 09, 2007 9:45 pm

Maybe a blow forward system? It is a bit bulky to have one, but I am positive it will work with a spring loaded mag.
Ecclesiastes 1:9 - What has been will be again, what has been done will be done again; there is nothing new under the sun.
User avatar
iPaintball
Corporal 2
Corporal 2
Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm

Thu Aug 09, 2007 9:46 pm

I think I will have to. I just don't know how I will fit it in the gun.
Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
goathunter
Corporal 2
Corporal 2
Posts: 675
Joined: Thu Feb 15, 2007 9:20 pm

Thu Aug 09, 2007 9:58 pm

What year model is that 357 ? If its from the early 90's/late 80's I would say convert it to a crosman 3357 .50 cal paintball marker. That would be the more worthwhile mod.
"Some people wonder all their lives if they've made a difference. The Marines don't have that problem"-Ronald Reagan

"KA BLAAM! Elimination! Lack of education."-Big Mama, Fox and the Hound, Disney
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 344 times

Donating Members

Thu Aug 09, 2007 10:03 pm

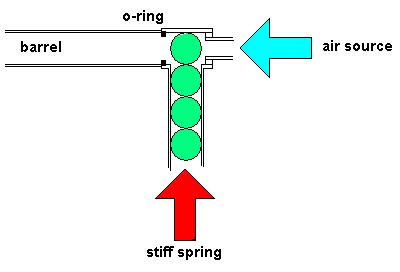

Instead of a complicated feed, why not try something like this? The pressure should fire the shot in the barrel and if the mag tube is of the same calibre, it will keep the other rounds from exiting.
Attachments
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
iPaintball
Corporal 2
Corporal 2
Posts: 695
Joined: Sun Mar 04, 2007 8:37 pm

Thu Aug 09, 2007 10:31 pm

Th only reason I haven't tried a feed system like that is because my barrel runs through the tee, so my barrel actually has a hole in it. I guess I could cut off the drilled out portion, but I would lose power.
Summer Projects:
CO2 tank hybrid: Gotta fix the meter :(
Cane gun: Needs a pilot/fill setup
1.5" piston valve gun: Almost done
