FAR2017
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

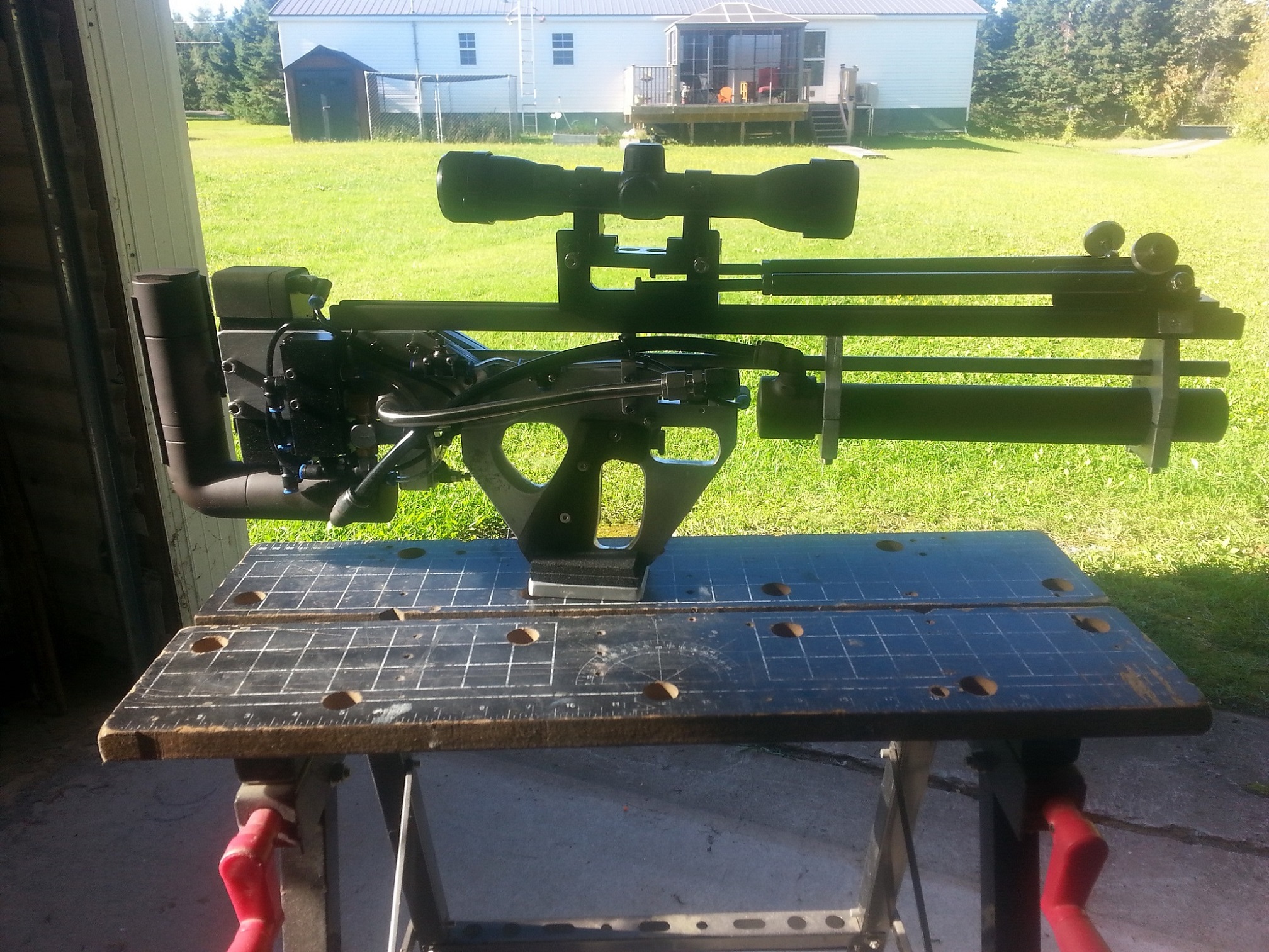

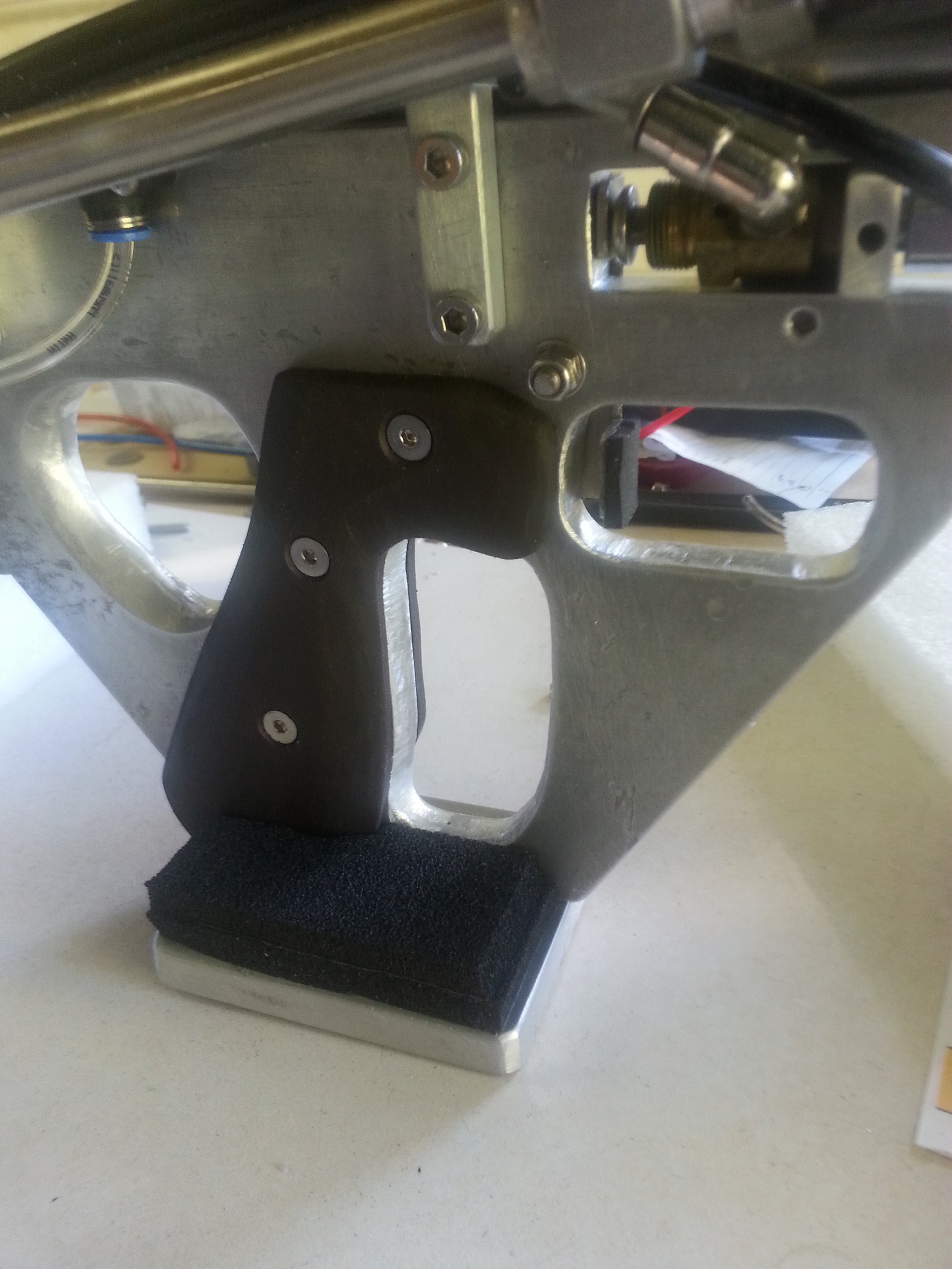

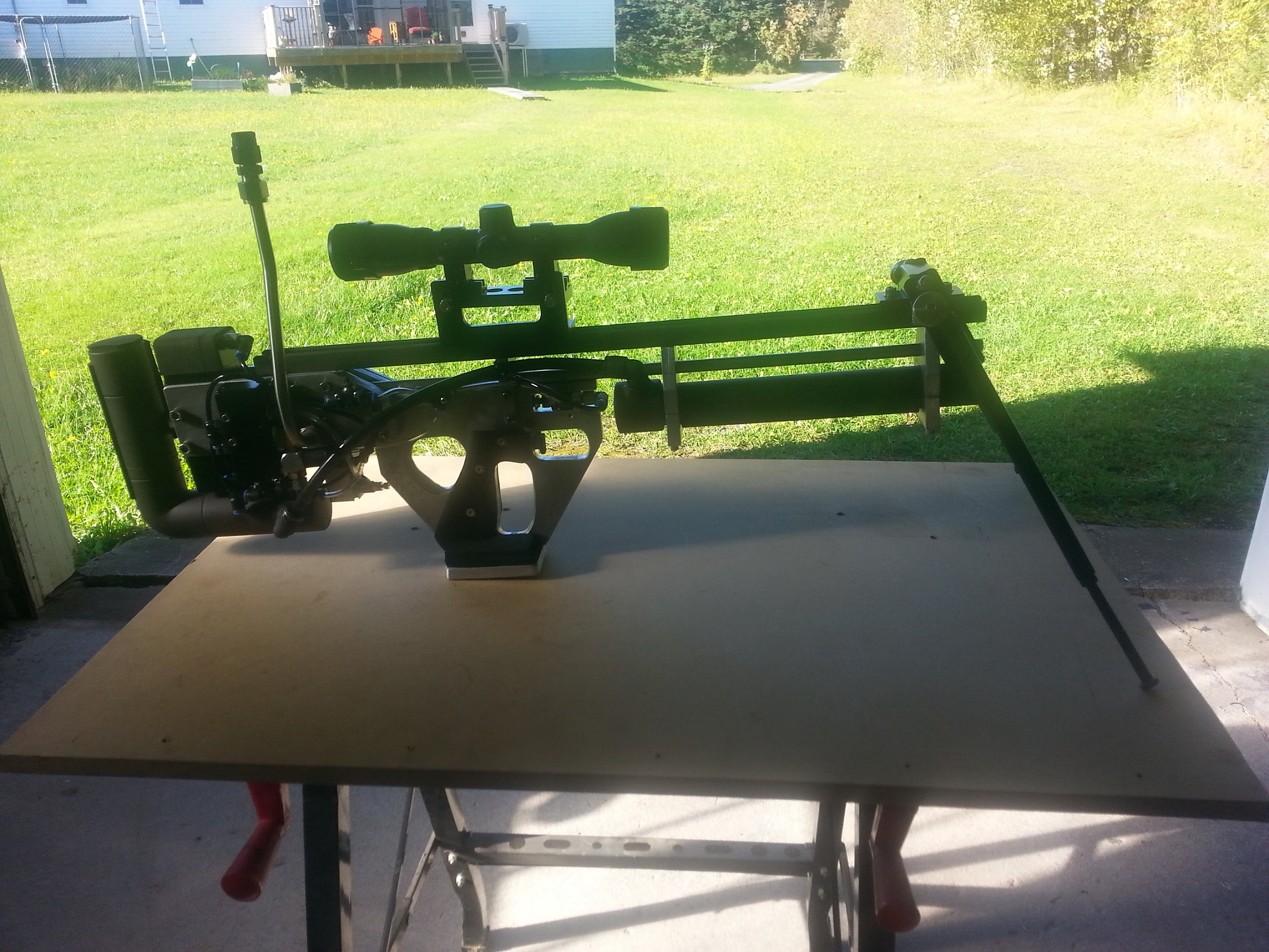

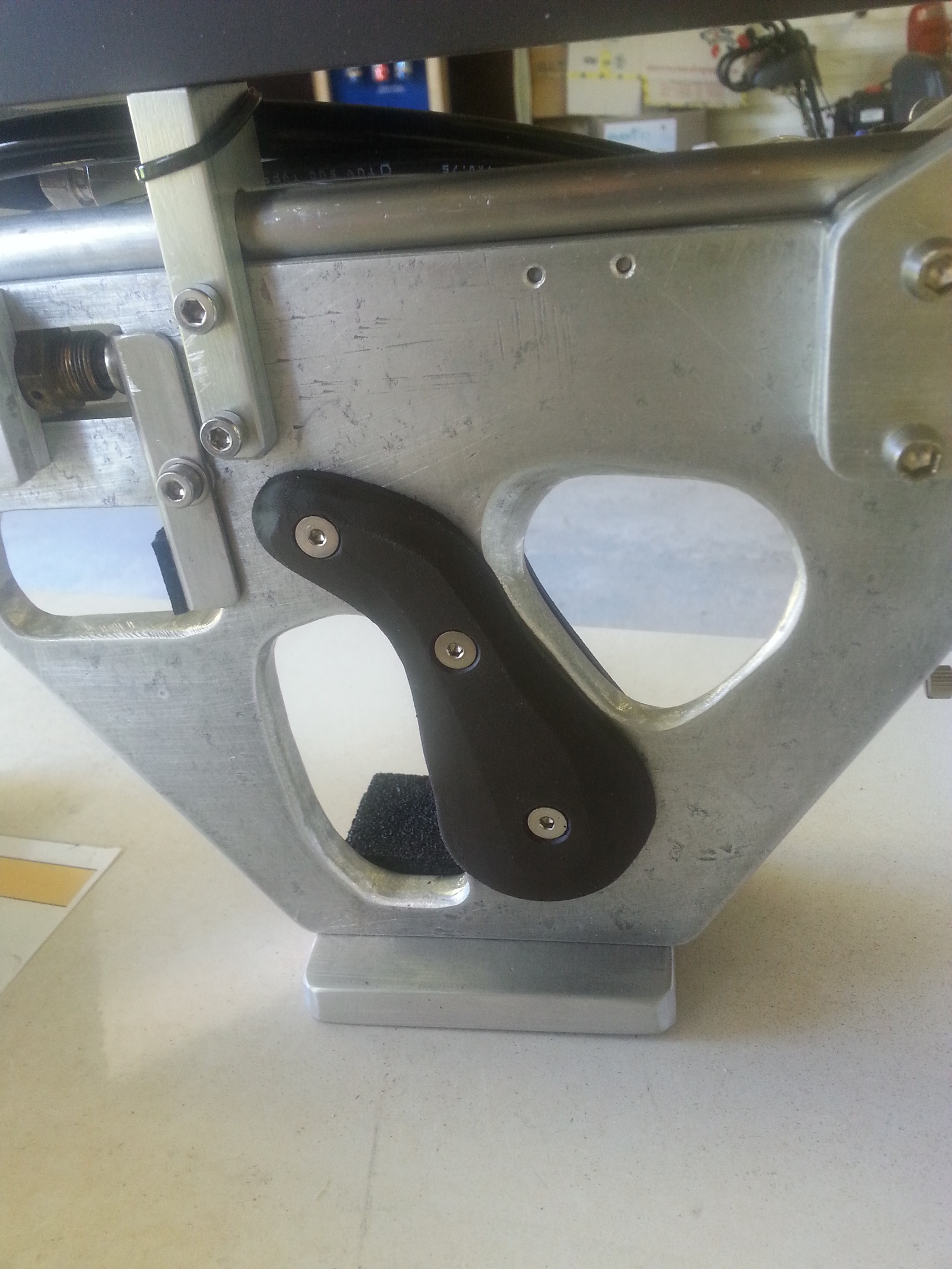

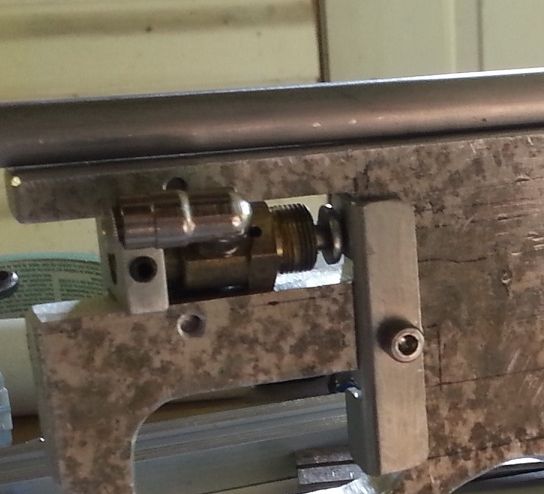

Got it finished with some work on the bipod and grip, video and full specs. to follow.

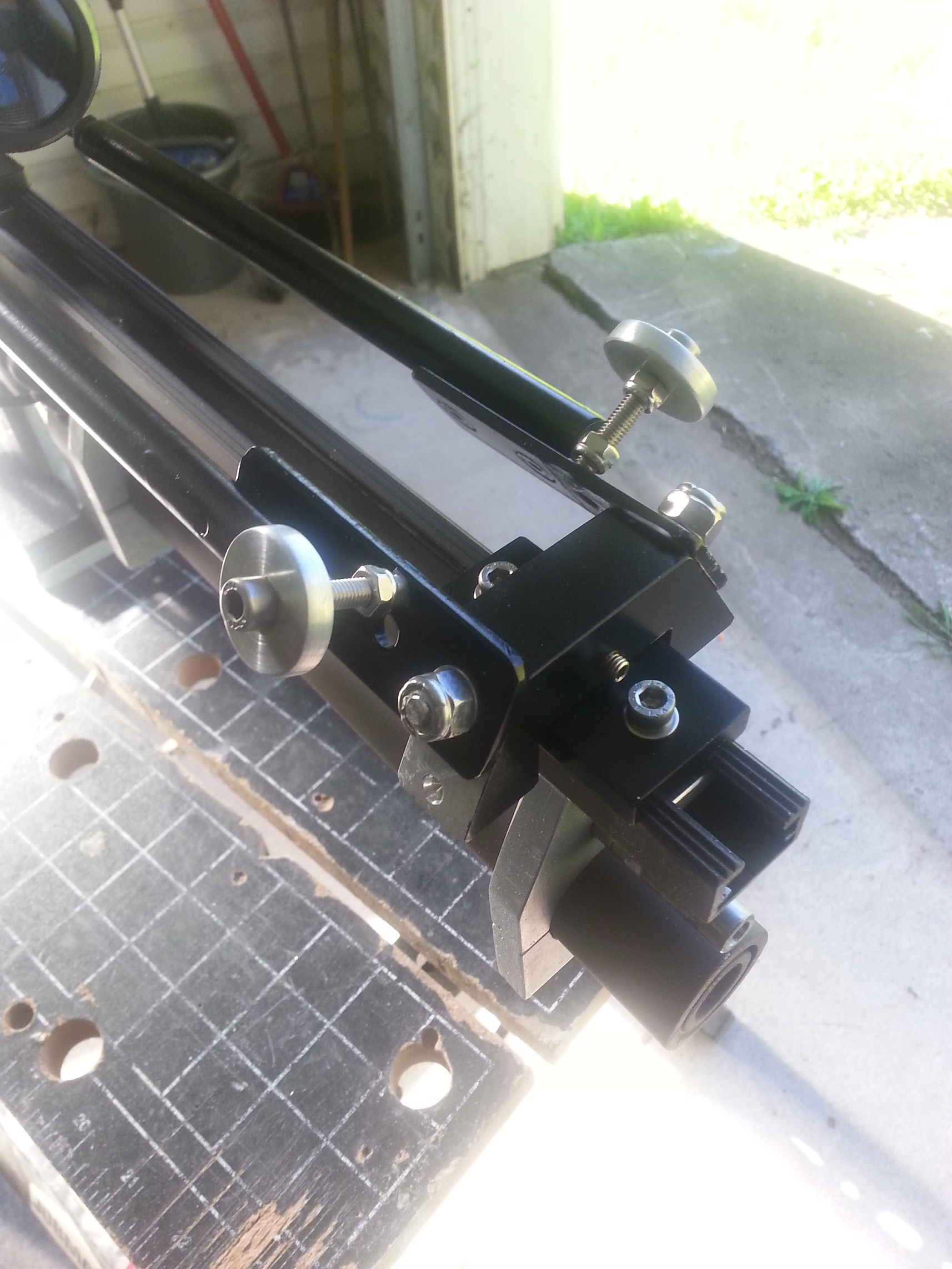

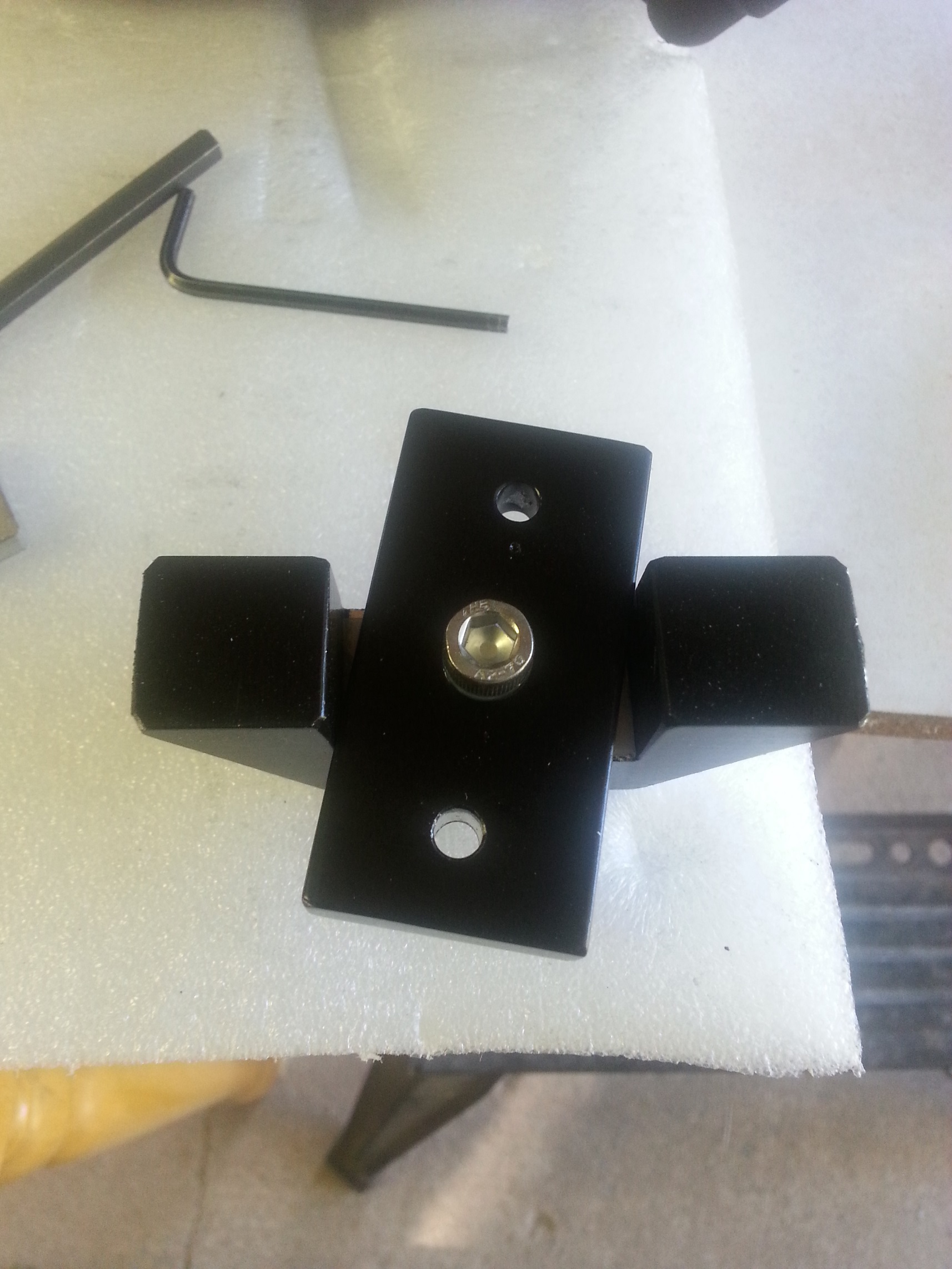

Bipod can turn slightly left and right
Bipod can turn slightly left and right
Last edited by farcticox1 on Mon Oct 02, 2017 4:43 pm, edited 2 times in total.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Another great build, I love the way she wears her insides on the outside
hectmarr wrote:You have to make many weapons, because this field is long and short life
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

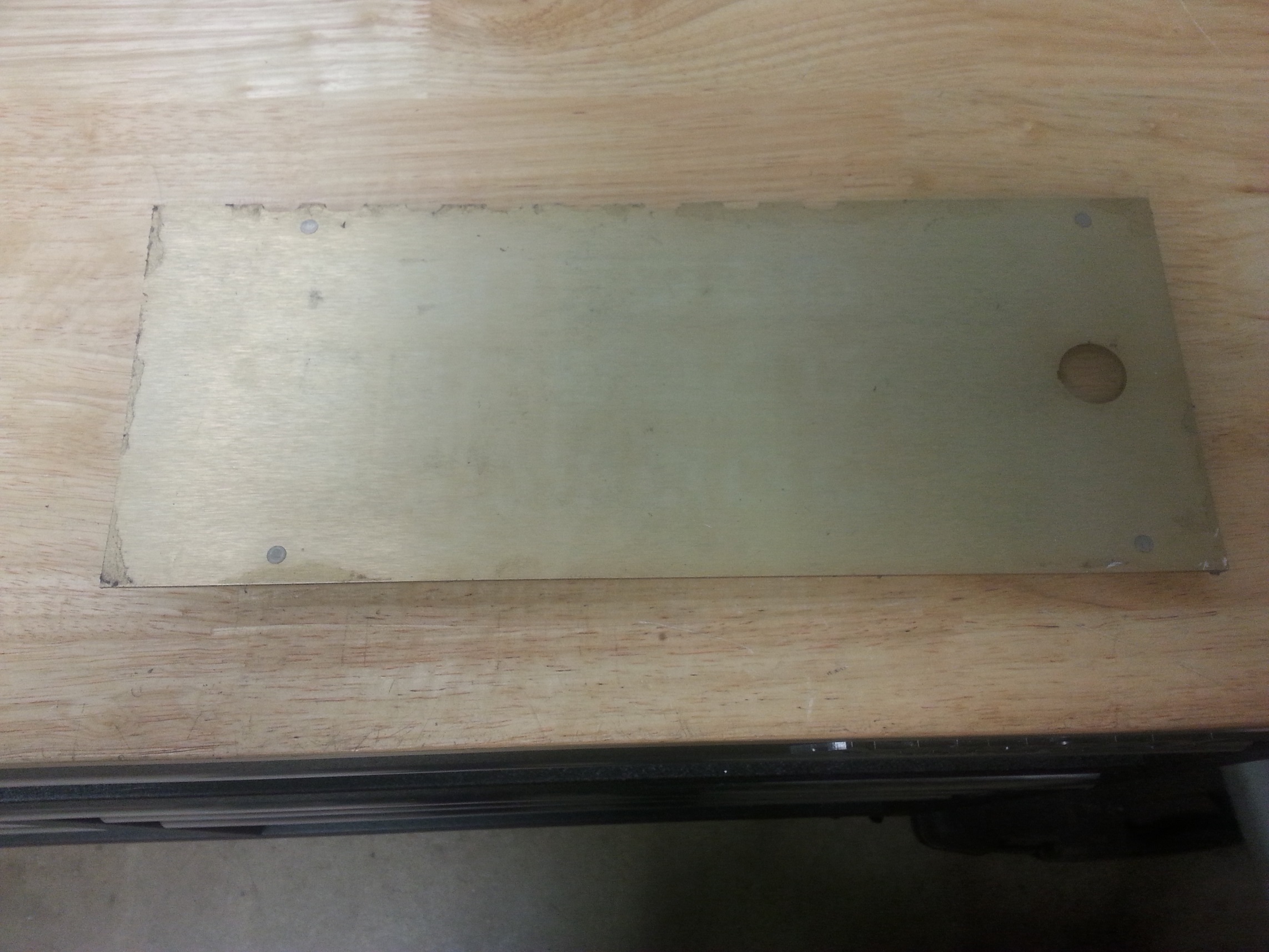

Came across this piece of 2mm thick gold anodized aluminium, and it almost looks like wood grain
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

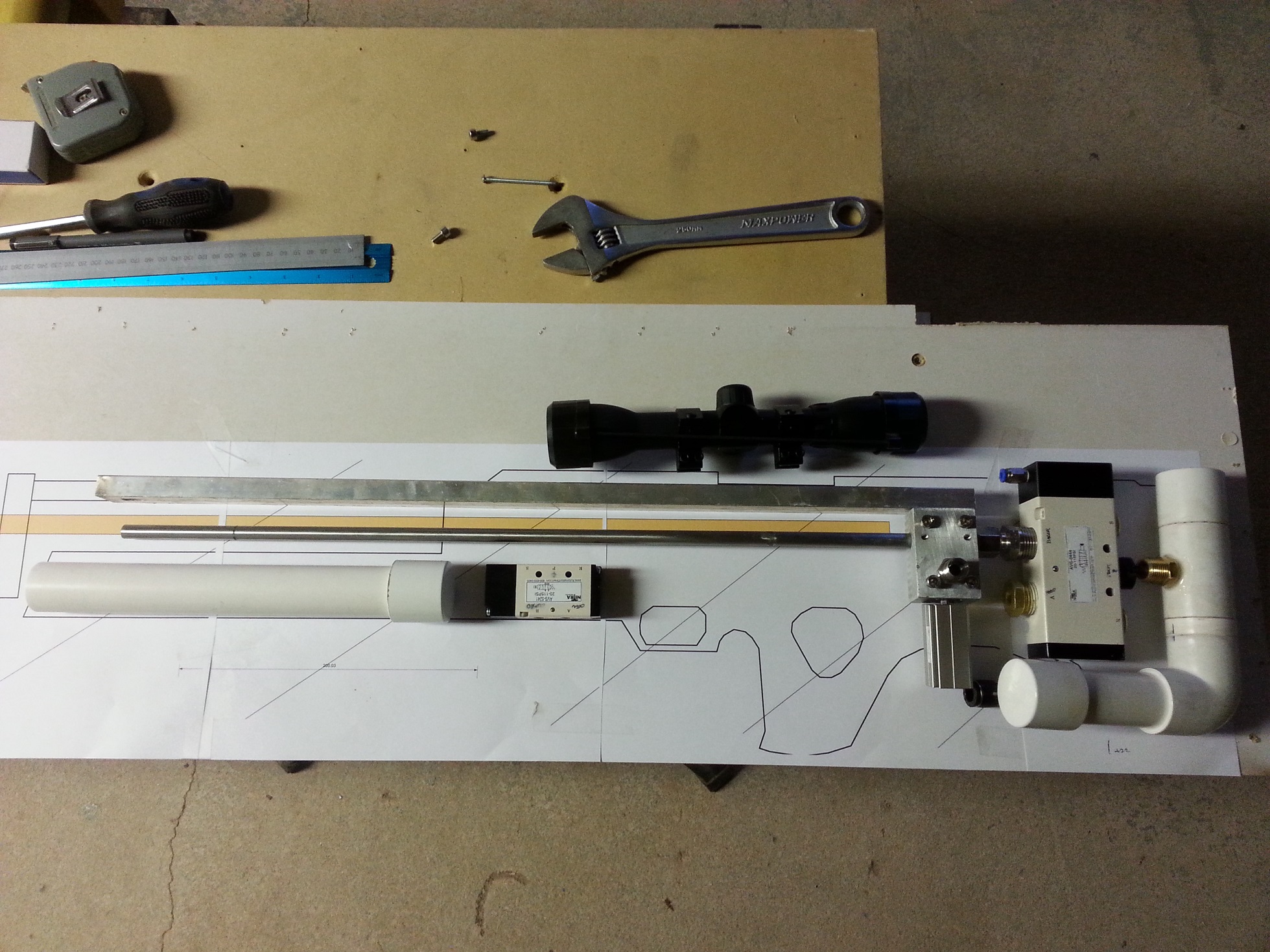

This is how it all began, as with most of the others I have built.

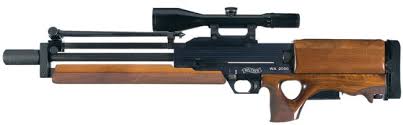

Get some inspiration

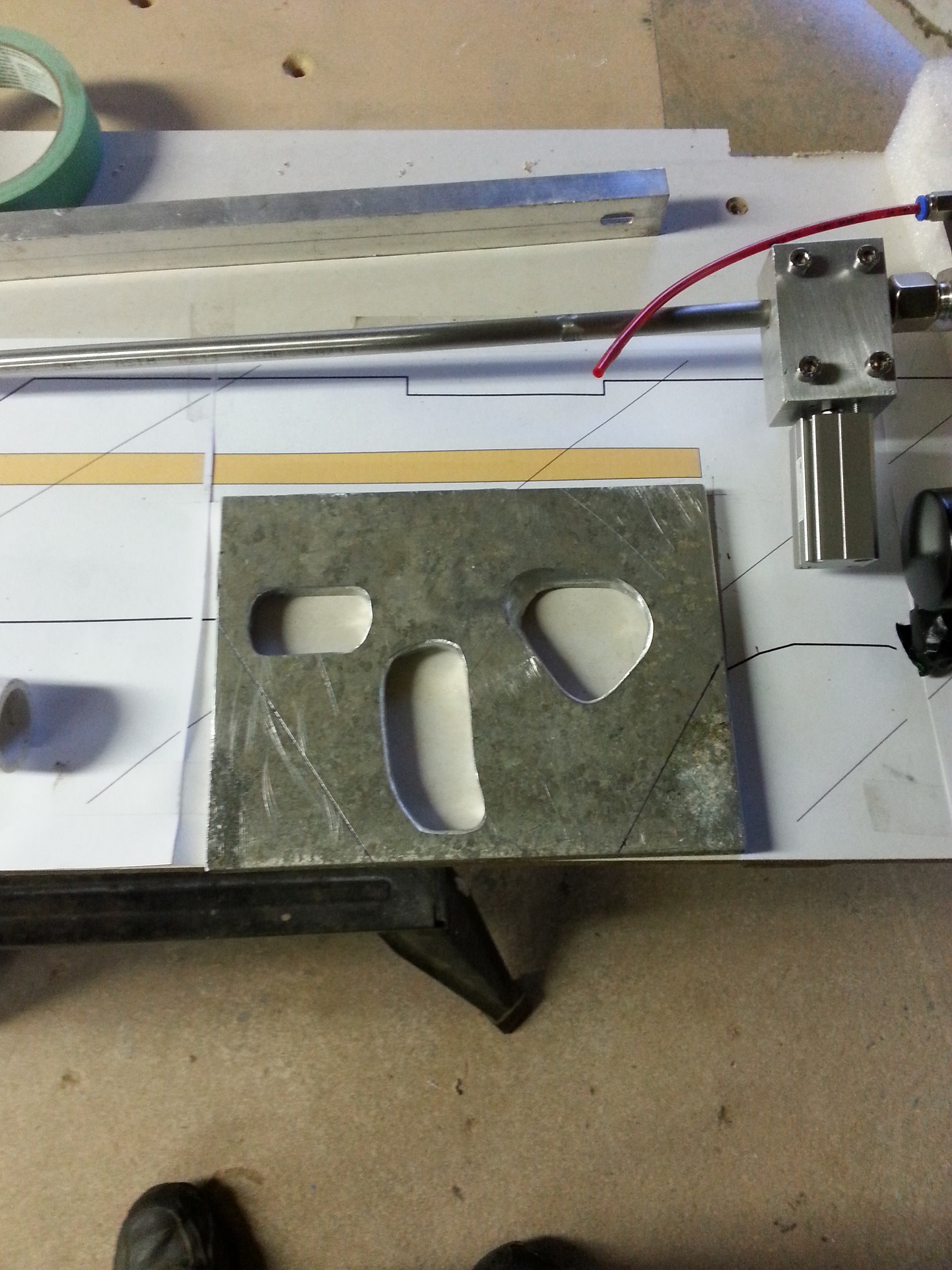

Make a scale plan (I use Microsoft Visio)

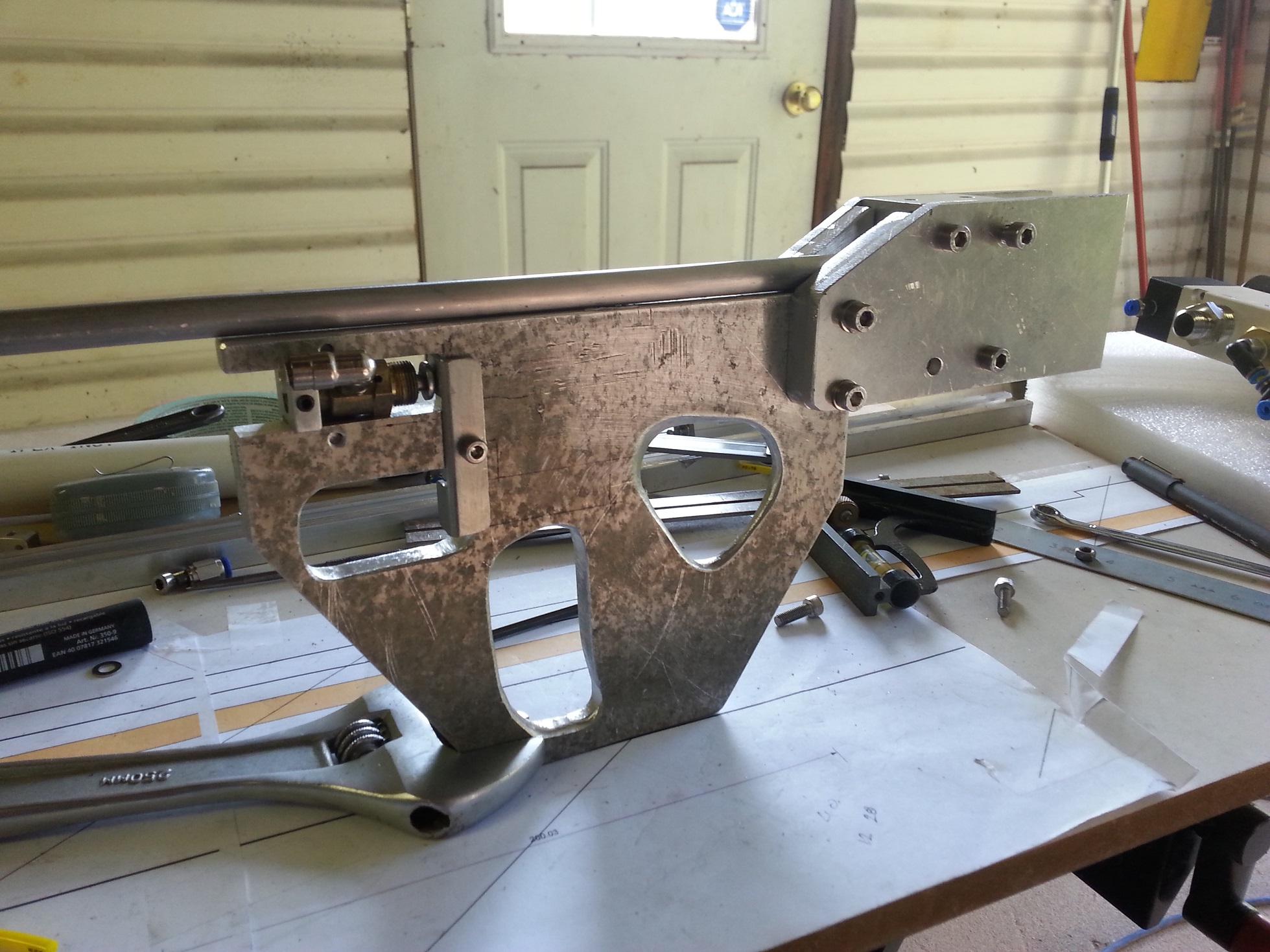

Get some parts and see how they fit

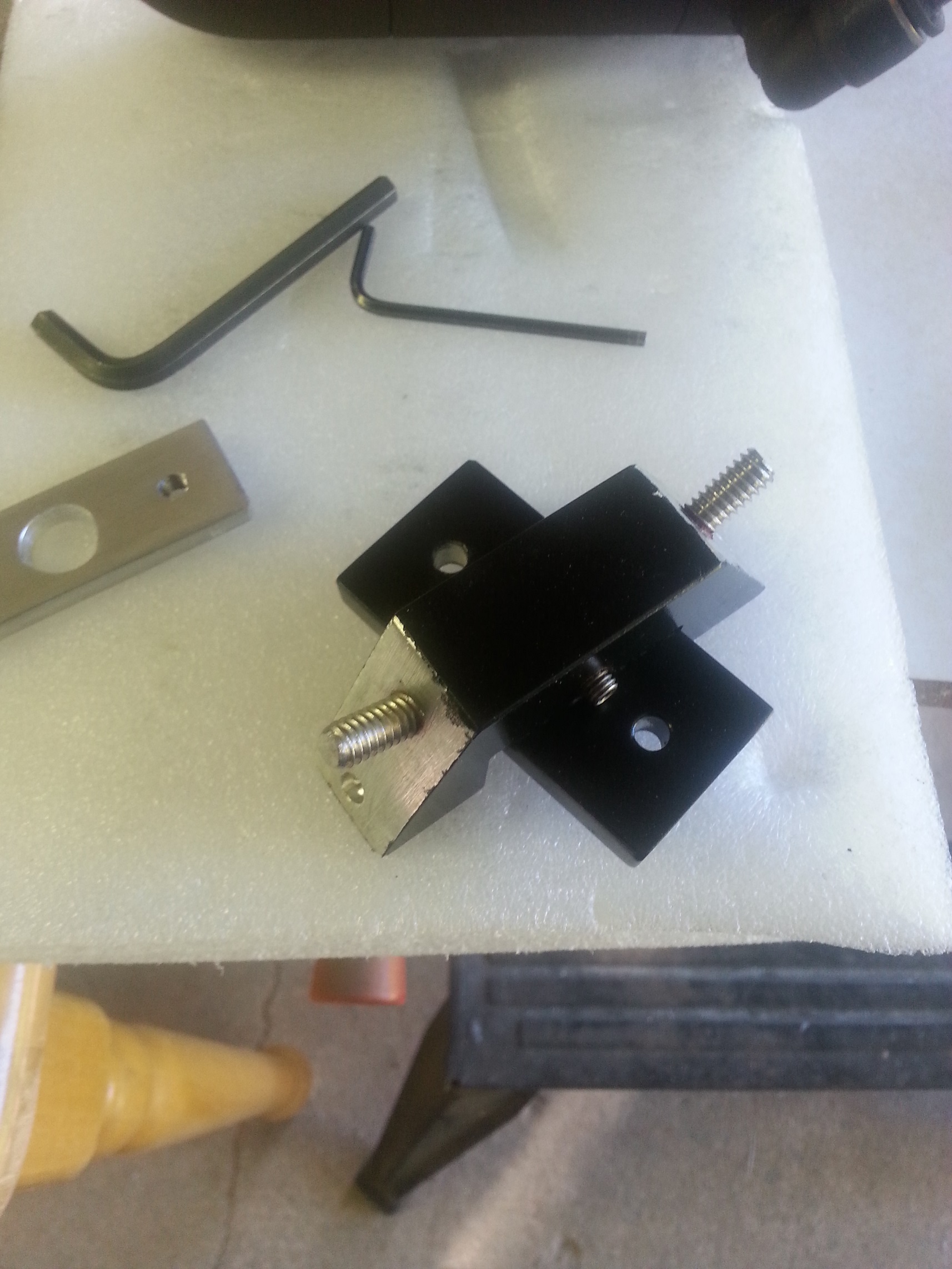

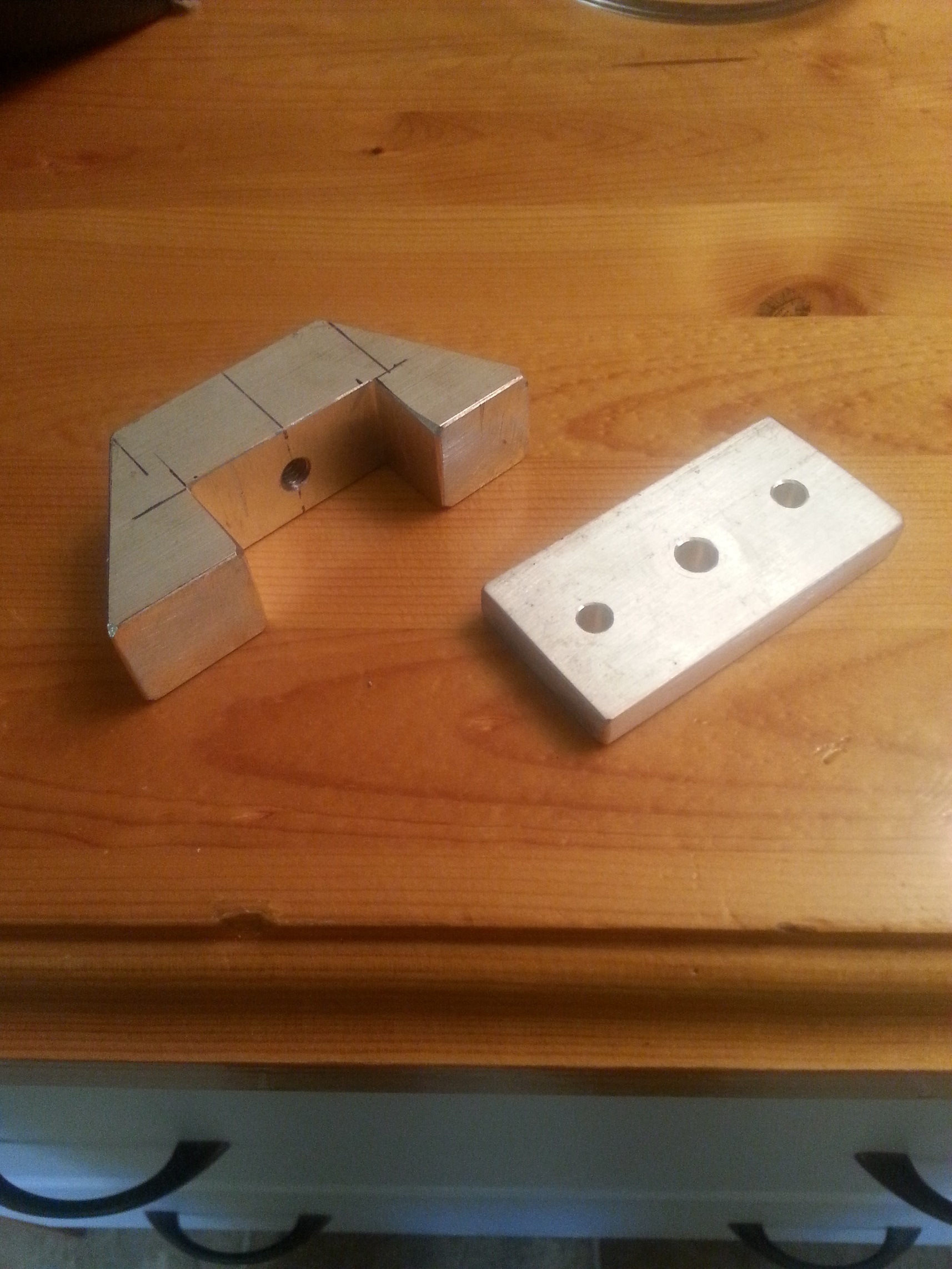

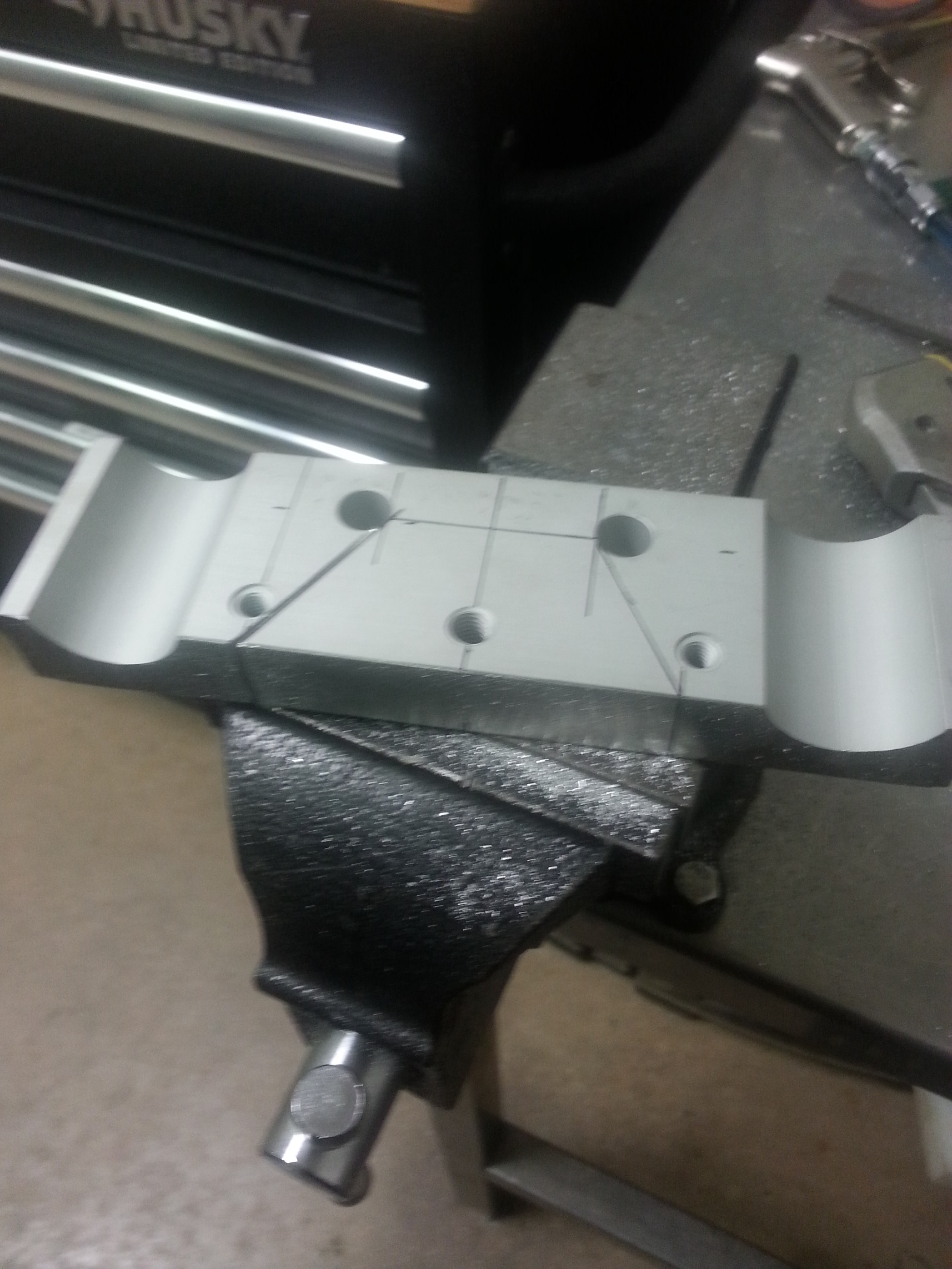

Make some more parts

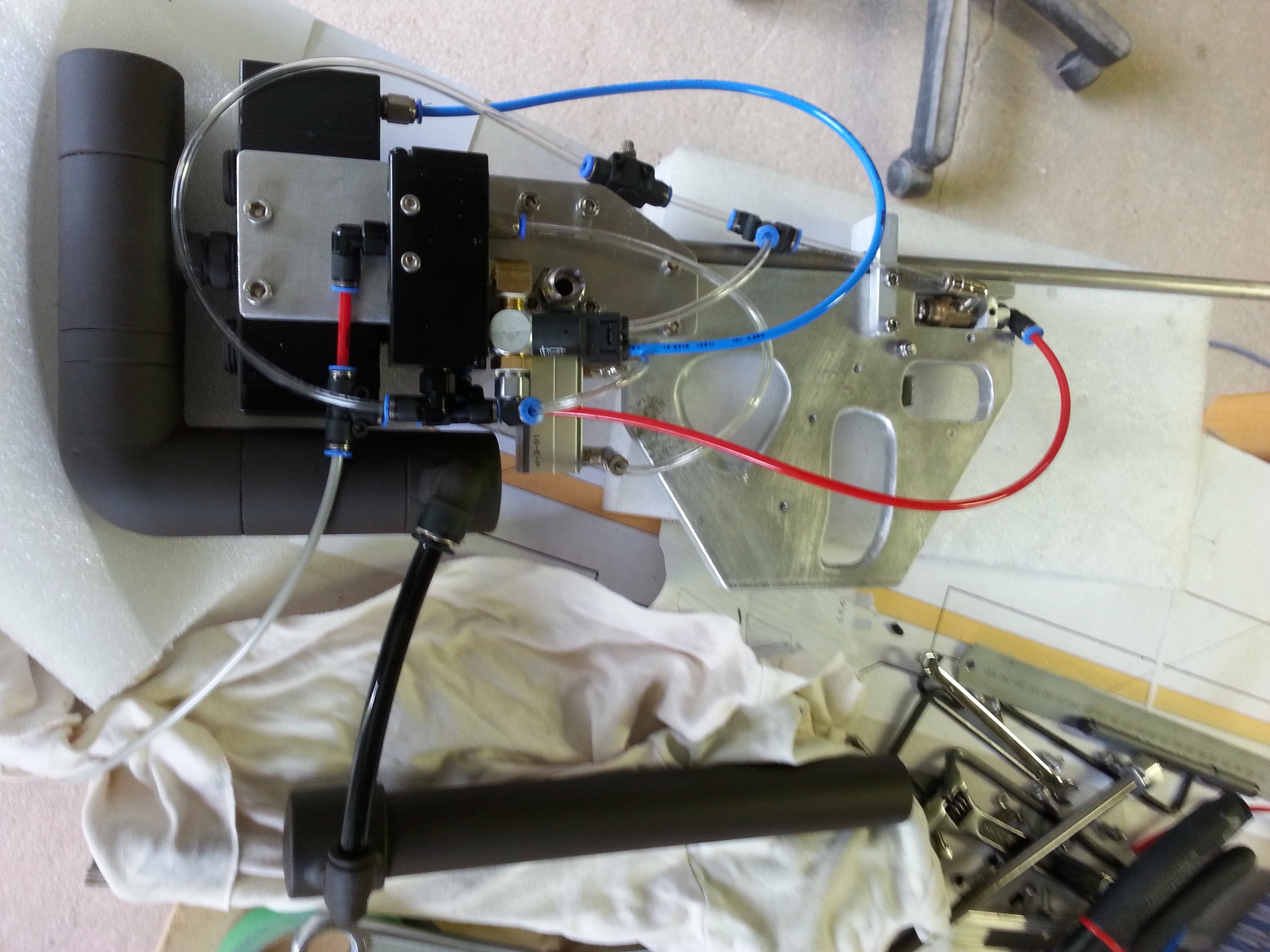

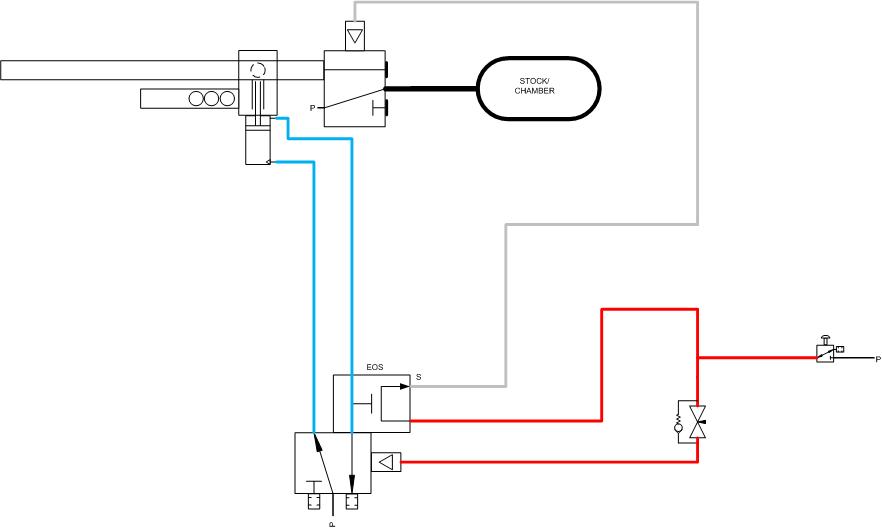

Work out pneumatic circuit

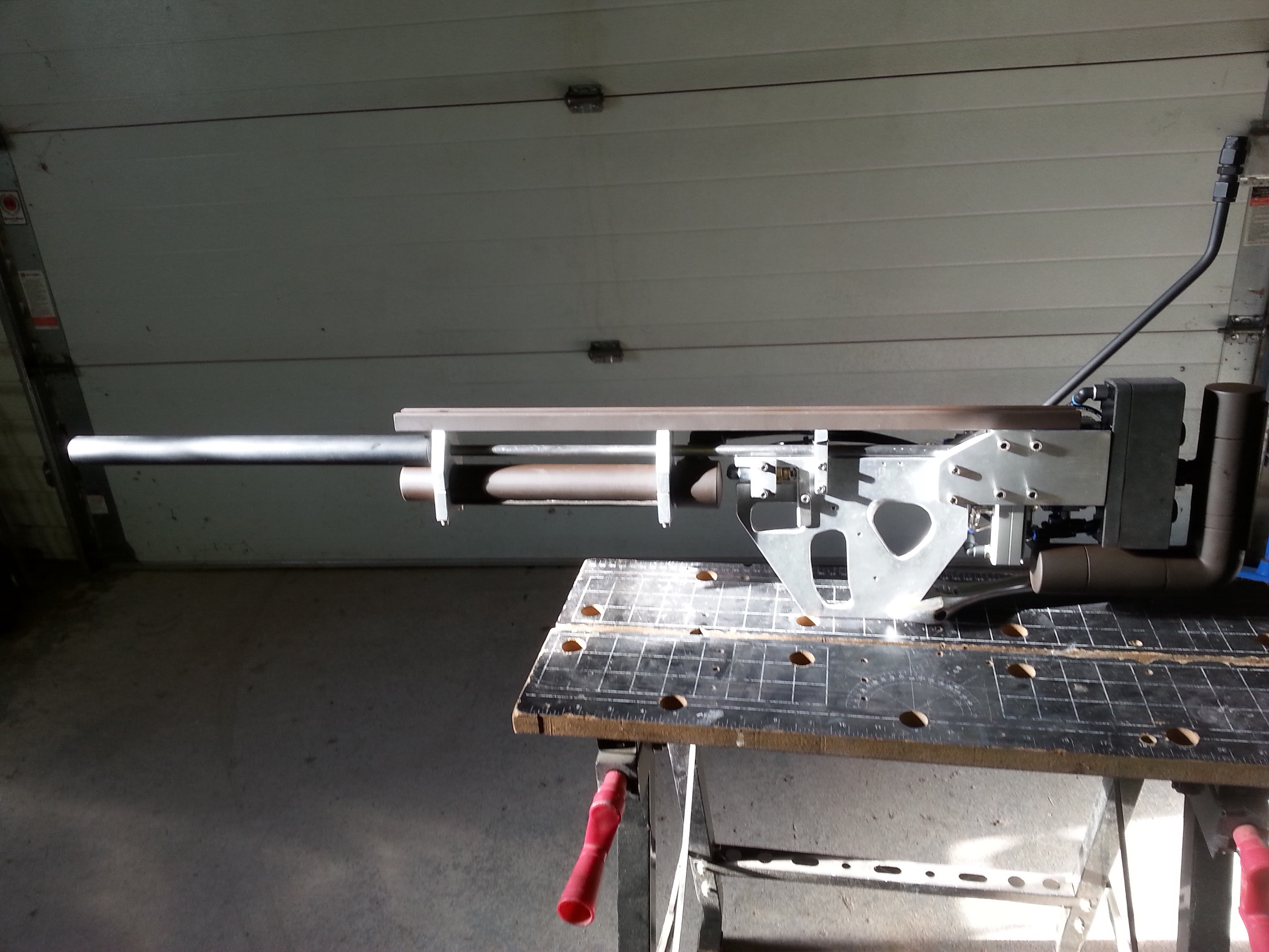

Put it all together
It is 700mm(27.5") long.
The barrel is 10mmOD 6mmID stainless steel, 500mm(19.5") long, 800mm (31.5")with extension.
Chamber is 1" Stainless Sch40, 250mm (10") long.
Weight is 11.2Lbs (5Kg)
Main valve is a 5/2 1/2" port air pilot, control valve is 5/2 1/8" port air pilot, trigger valve is 3/2 #10/32 push button momentary spring return.
This magazine tube holds 50 airsoft BBs, I will be trying it with steel BBs as well.
Get some inspiration
Make a scale plan (I use Microsoft Visio)
Get some parts and see how they fit
Make some more parts
Work out pneumatic circuit
Put it all together
It is 700mm(27.5") long.
The barrel is 10mmOD 6mmID stainless steel, 500mm(19.5") long, 800mm (31.5")with extension.
Chamber is 1" Stainless Sch40, 250mm (10") long.
Weight is 11.2Lbs (5Kg)
Main valve is a 5/2 1/2" port air pilot, control valve is 5/2 1/8" port air pilot, trigger valve is 3/2 #10/32 push button momentary spring return.
This magazine tube holds 50 airsoft BBs, I will be trying it with steel BBs as well.
Last edited by farcticox1 on Sat Jul 14, 2018 12:58 pm, edited 1 time in total.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
Finally got the video done, not very exciting as it all happens inside. Used a 20 round short magazine, have a 40 and a 50 as well. I can see why some people like the bullpup style, with the barrel extension on it is perfectly balanced at the grip, really nice to shoot from the sholder. Pleased with how this one turned out
[youtube][/youtube]
[youtube][/youtube]
-
- Specialist 2
- Posts: 222
- Joined: Wed Apr 12, 2017 5:30 am
I knew where your inspiration came from as soon as i saw this beast.
Impressed with your top mag tube, thats what i've been wanting to do also.
Shoots very well nice and accurate. 8)
Impressed with your top mag tube, thats what i've been wanting to do also.
Shoots very well nice and accurate. 8)
-
- Specialist 2
- Posts: 222
- Joined: Wed Apr 12, 2017 5:30 am
Hi, i've just been looking at your FAR2017 again, do you have your main and air chambers connected?
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
Yes, mainly to increase the volume, I use it with the air supply always connected but only through a 4mm airline, so it tops up the chamber between shots.
-
- Specialist 2
- Posts: 222
- Joined: Wed Apr 12, 2017 5:30 am
Ah awesome...but your using a pilot valve, qev would be no difference?
-
- Specialist 2
- Posts: 222
- Joined: Wed Apr 12, 2017 5:30 am
Hi F1...have been reading your thread again, and noticed with your 1" chamber you said you split it into 2..?
What does that do?
What does that do?
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

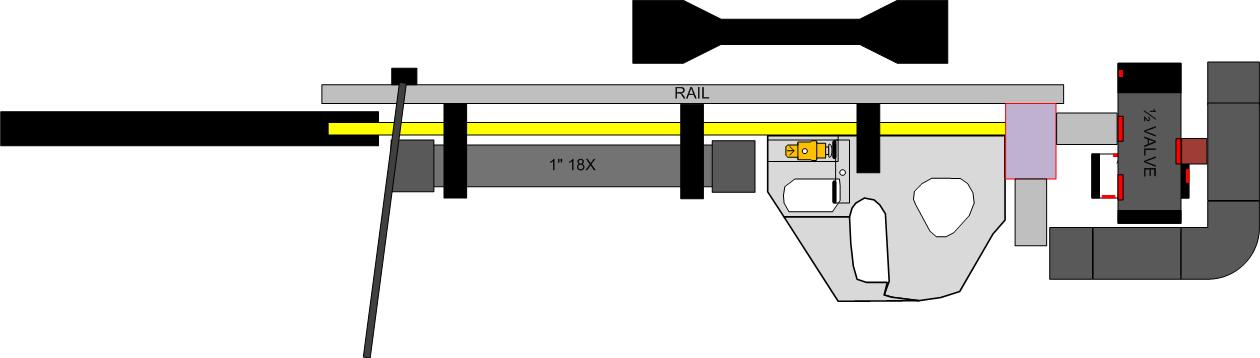

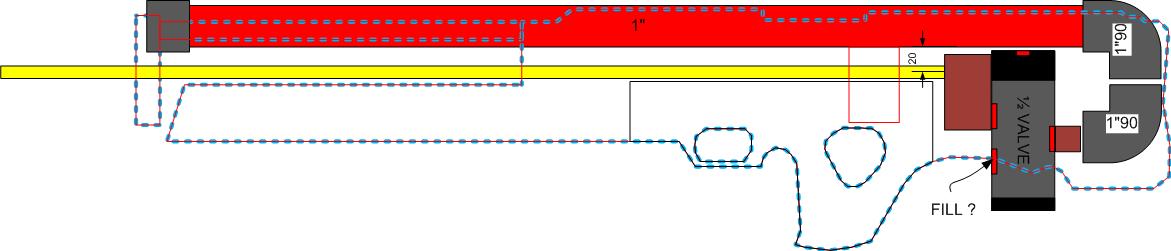

Ah sorry, I thought that was what you meant before. I just wanted to get as much air onboard as I could. At least 4X barrel volume. The feed line from the compressor is 4mm OD Polyurethane which is so small you hardly know it's there, BUT it has very low flow so it is mainly there to top up the onboard chamber between shots. Originally it was going to look like this
-
- Specialist 2
- Posts: 222
- Joined: Wed Apr 12, 2017 5:30 am
Nice thanks.
I noticed your feed lines, do they handle the pressure ok?
Feed lines would be great to eliminate attachments between the trigger and the qev, etc.
I noticed your feed lines, do they handle the pressure ok?
Feed lines would be great to eliminate attachments between the trigger and the qev, etc.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
Everything except the PVC chambers are standard pneumatic components, valves, fittings & tubing, I think they are rated at 120psi, I'm using 135psi so I guess there is a good safety factor anyway.
