Compact .177

Building or modifying BB, Airsoft, and Pellet type of guns. Show off your custom designs, find tips and other discussion. Target practice only!
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Sat Oct 06, 2018 5:36 pm

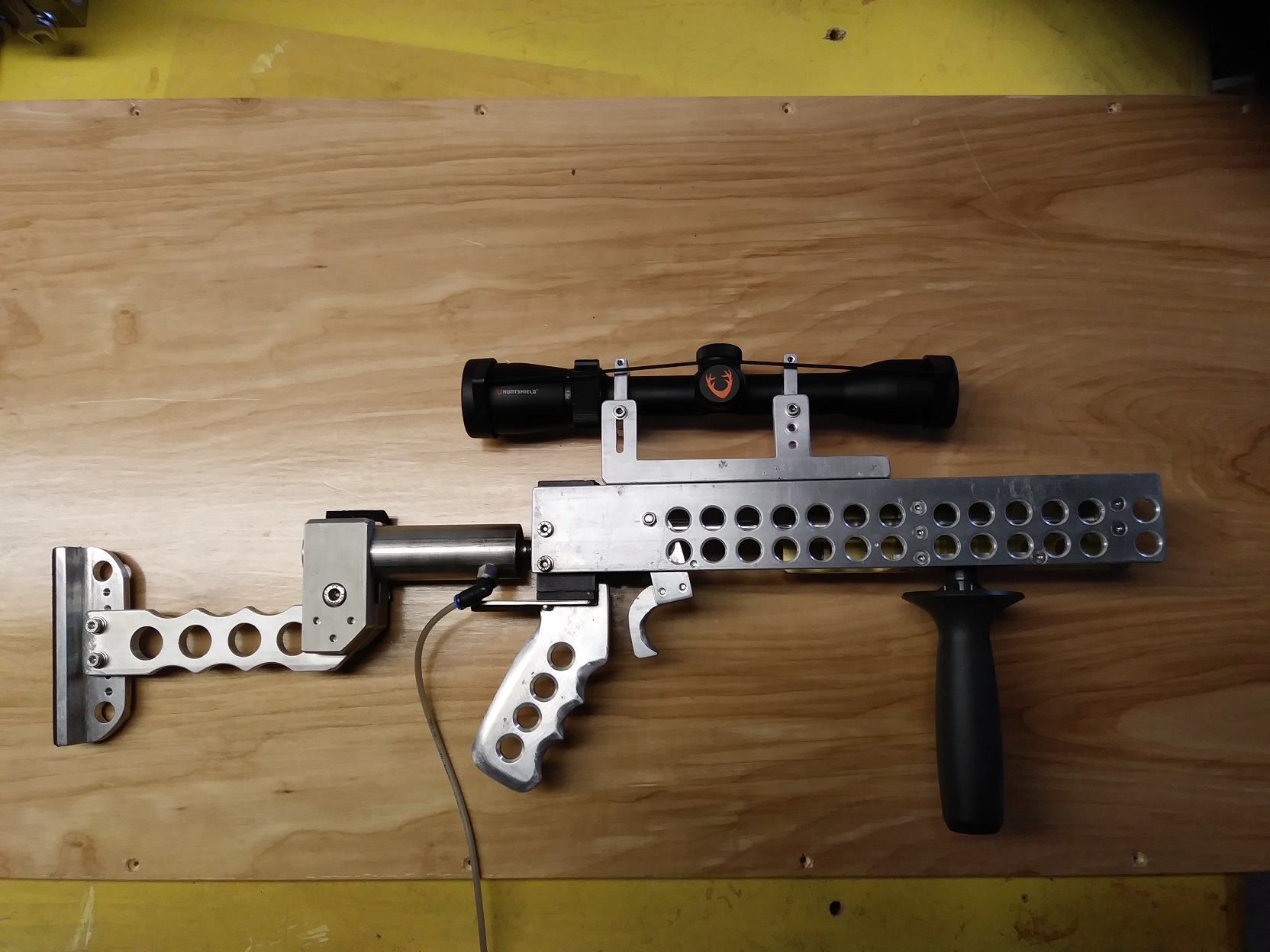

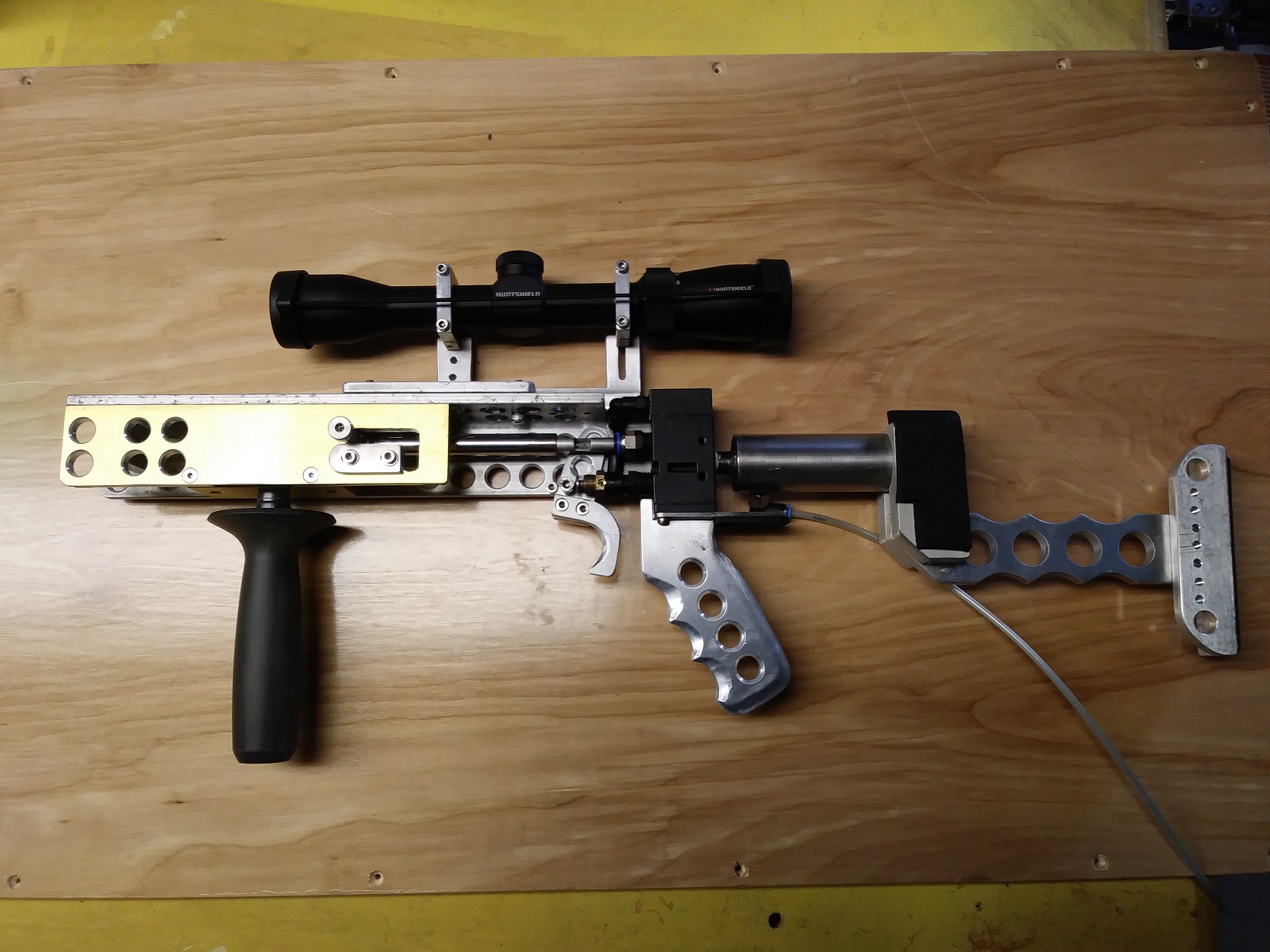

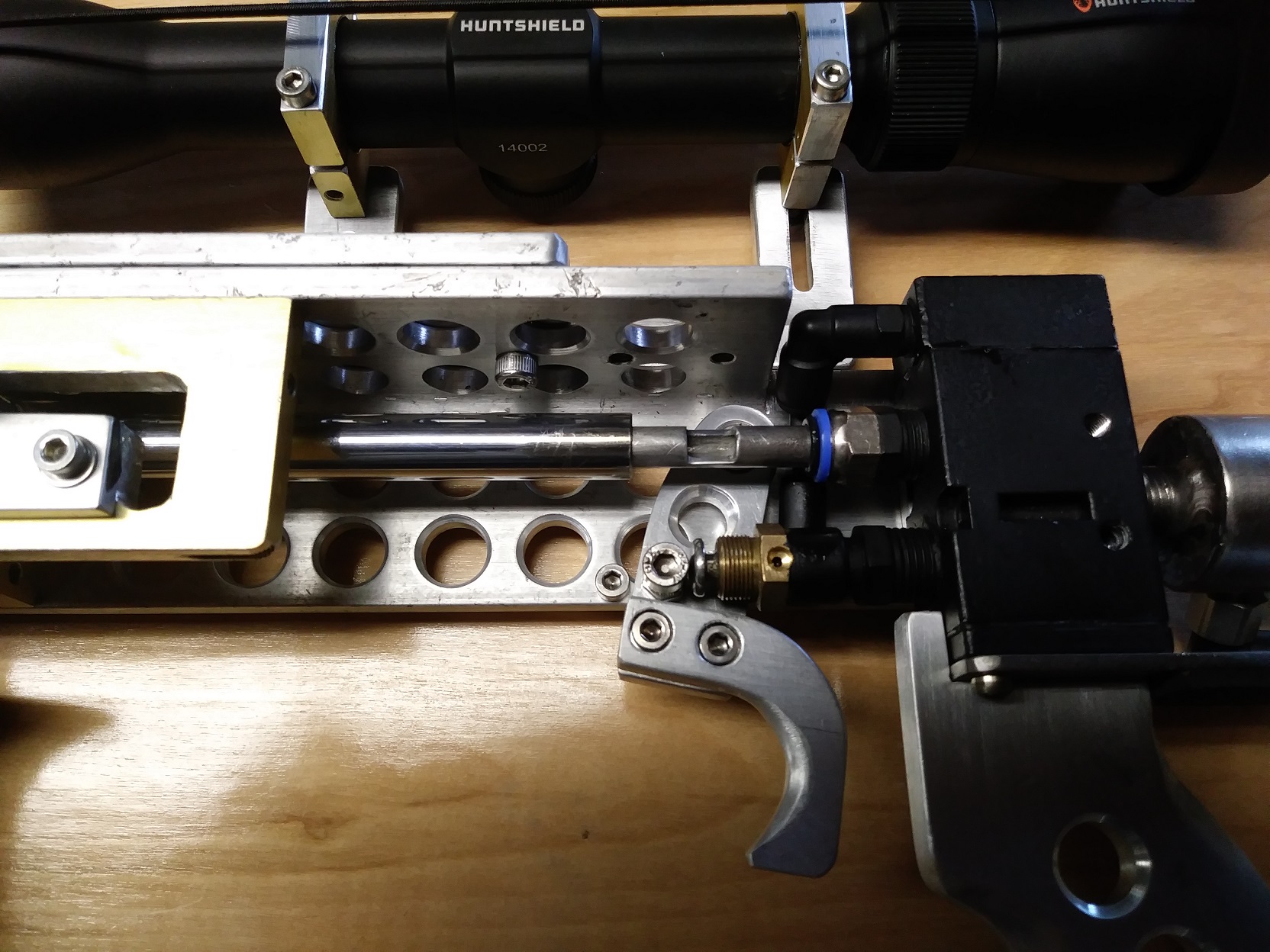

Finished the compact .177, barrel is 12" long. 11" if you allow for the dead space, valve is 1/4" pilot operated, accuracy as expected, about 1 1/2" group at 9m. Running straight off compressed air as usual at about 150psi. One of my favoritist guns to shoot so far :D
008 (2).jpg
008 (4).jpg
008 (3).jpg
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Sat Oct 06, 2018 5:42 pm

I look spectacular. :bounce:
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Sat Oct 06, 2018 5:55 pm

Will do a video, probably next weekend, thanksgiving tomorrow so will be busy.
User avatar
mark.f
Sergeant Major 4
Sergeant Major 4
Eritrea
Posts: 3634
Joined: Sat May 06, 2006 11:18 am
Location: The Big Steezy
Has thanked: 57 times
Been thanked: 57 times
Contact:

Donating Members

Sun Oct 07, 2018 4:17 pm

Looks nice! Linking to the other thread here for some more information. :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Mon Oct 08, 2018 1:45 pm

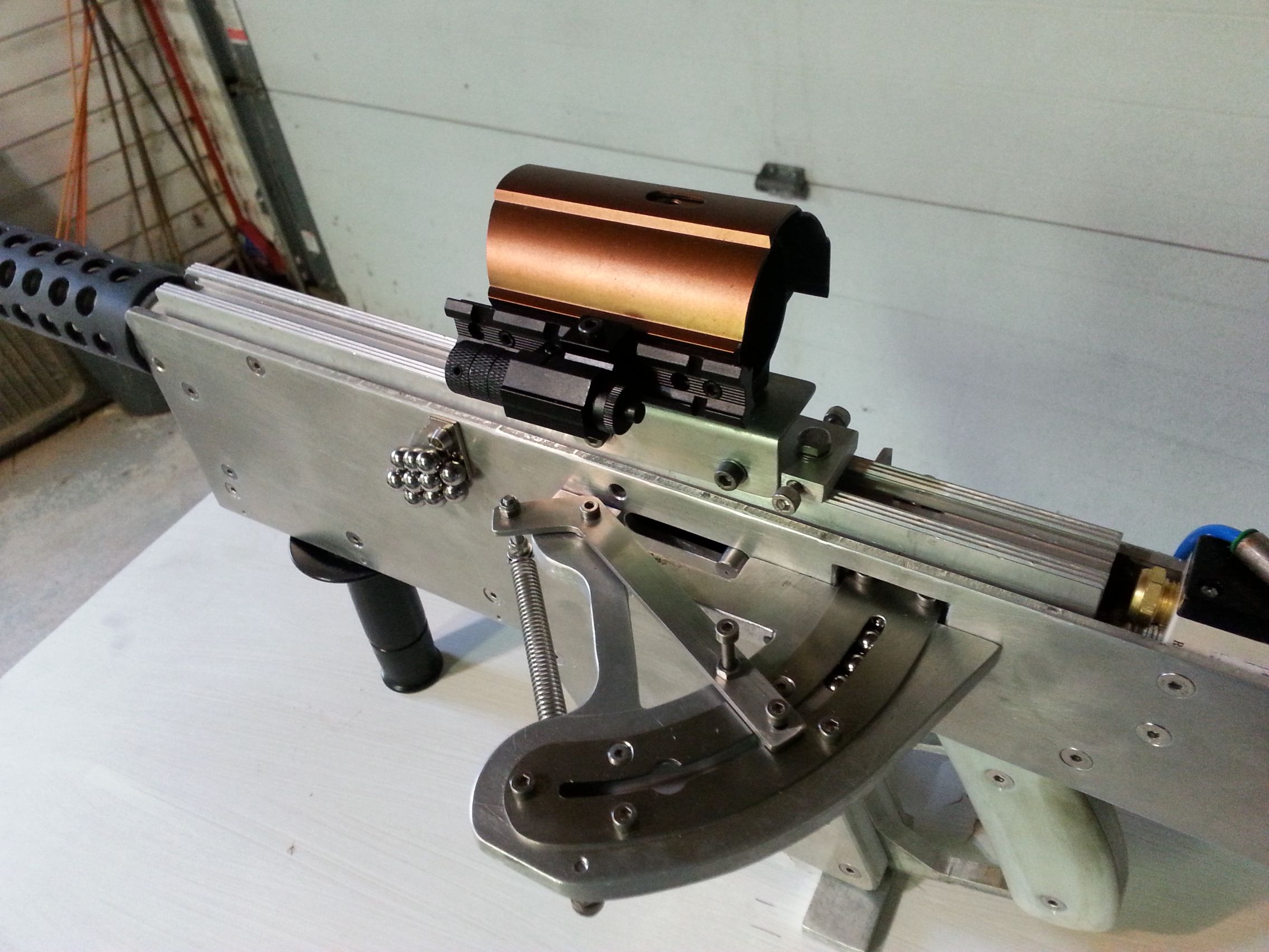

Love the foregrip, it seems like you have a cousin in South Africa ;)

hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Mon Oct 08, 2018 4:47 pm

Ah, he is using the shiny grooved variety
77 (3).jpg
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Tue Oct 09, 2018 9:15 am

farcticox1 wrote:the shiny grooved variety
The posh bastard!

:D
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Tue Oct 09, 2018 4:42 pm

Interesting, noticed that the pellets were a tighter fit in this barrel than the last one, so tight that I had to seat them down the barrel otherwise 150psi was not enough to get it moving. This tube measures 4.60mm ID, the last one I built with a different piece of tube is 4.70mm ID. Just the luck of the draw with tolerences :shock: Going to polish out a small section at the breech end and see if it still works at 150psi.
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Sat Oct 13, 2018 1:03 pm

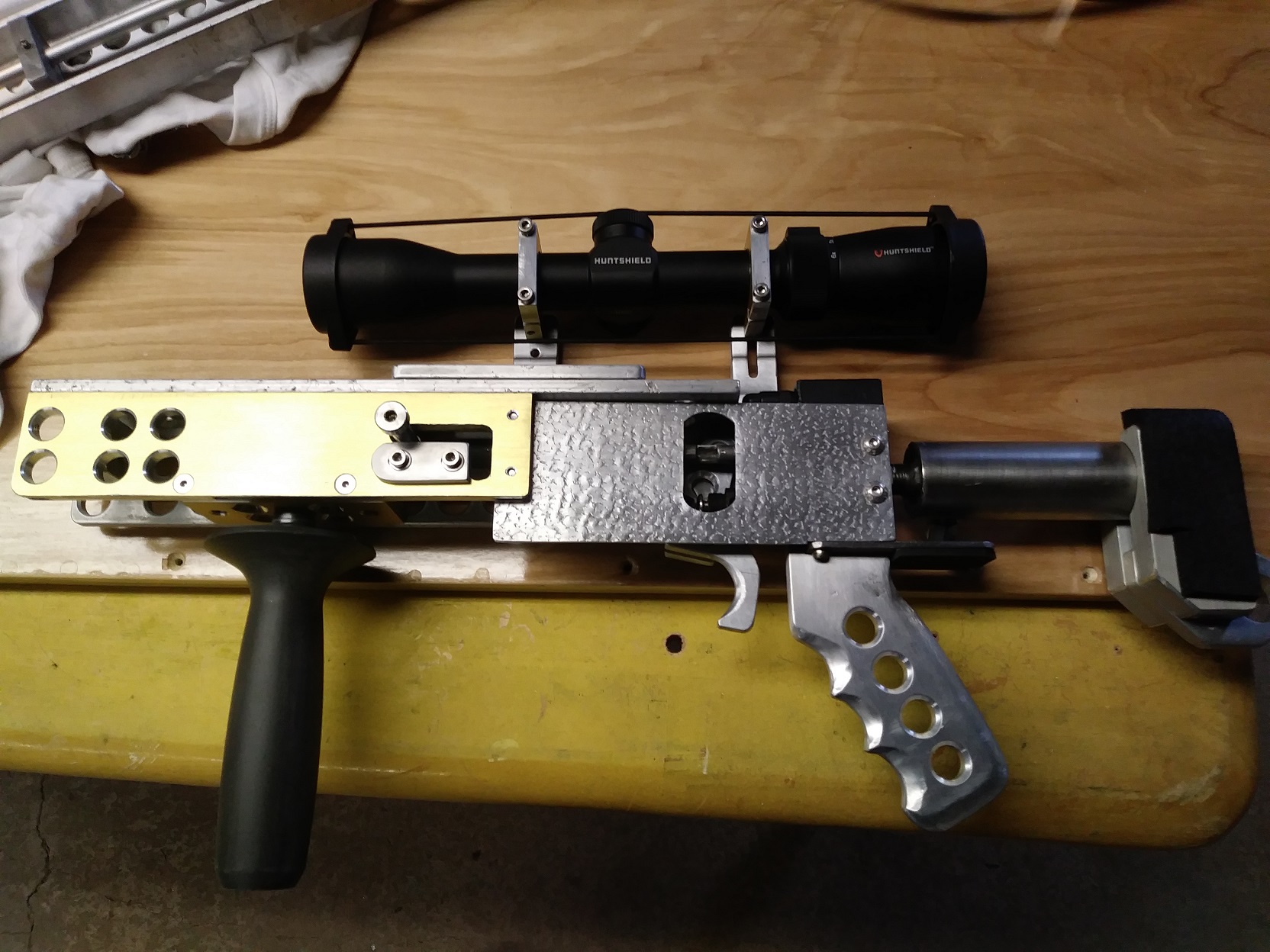

Made a plate to cover the side
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Sun Oct 21, 2018 2:37 pm

Done a short video, target shooting started of well with a bullseye then went off a bit :lol: well that's smooth bore :D

[youtube][/youtube]
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Mon Oct 22, 2018 10:13 am

I like the result. As always, impeccable construction. :) regards
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Thu Mar 14, 2019 5:27 pm

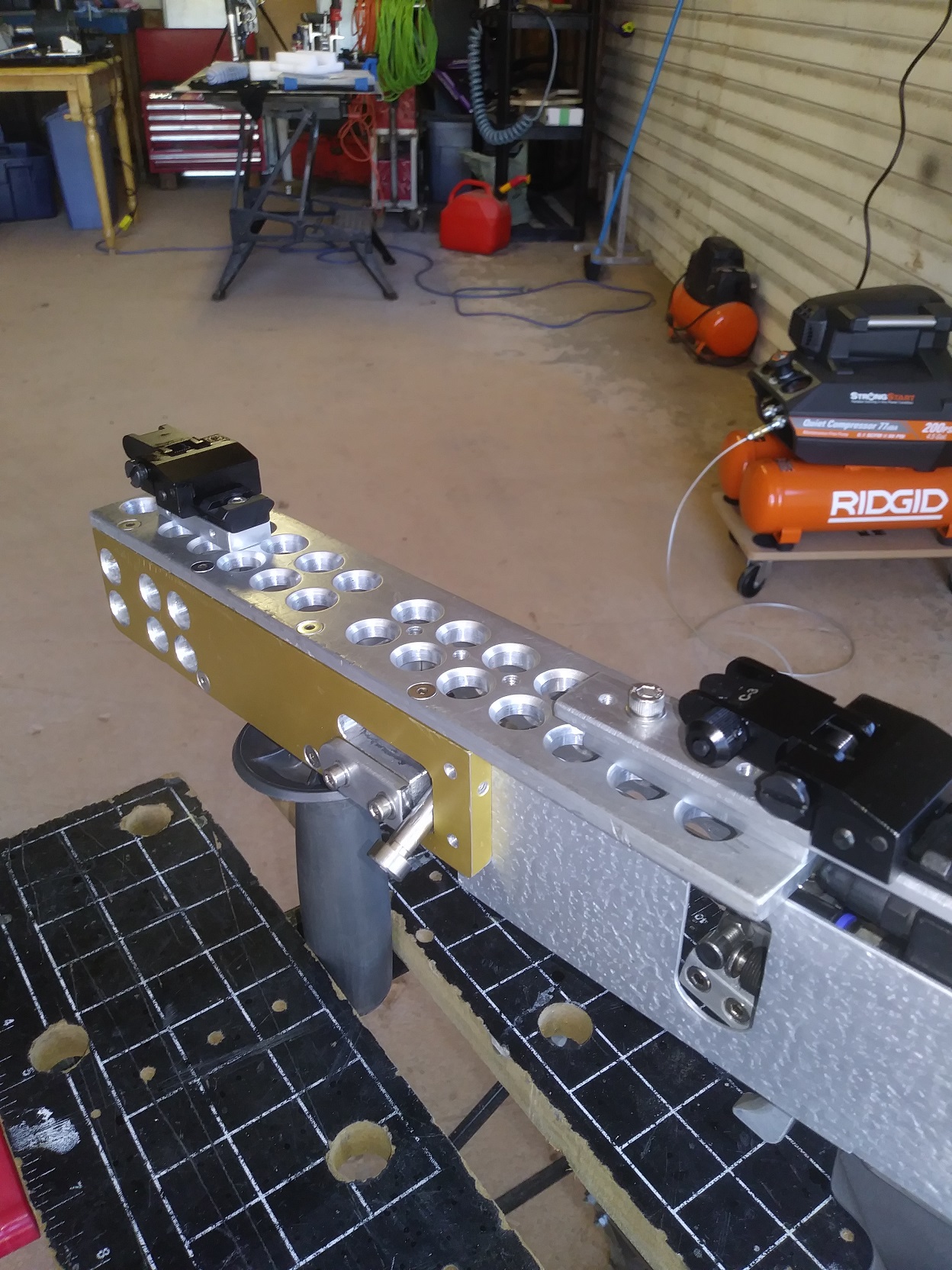

Got some decent ($20) flip up sights off Ebay to try. :D
010 (2).jpg
010 (1).jpg
User avatar
farcticox1
Sergeant
Sergeant
Posts: 1080
Joined: Sun Mar 31, 2013 12:37 pm
Has thanked: 69 times
Been thanked: 96 times

Sun May 05, 2019 10:54 am

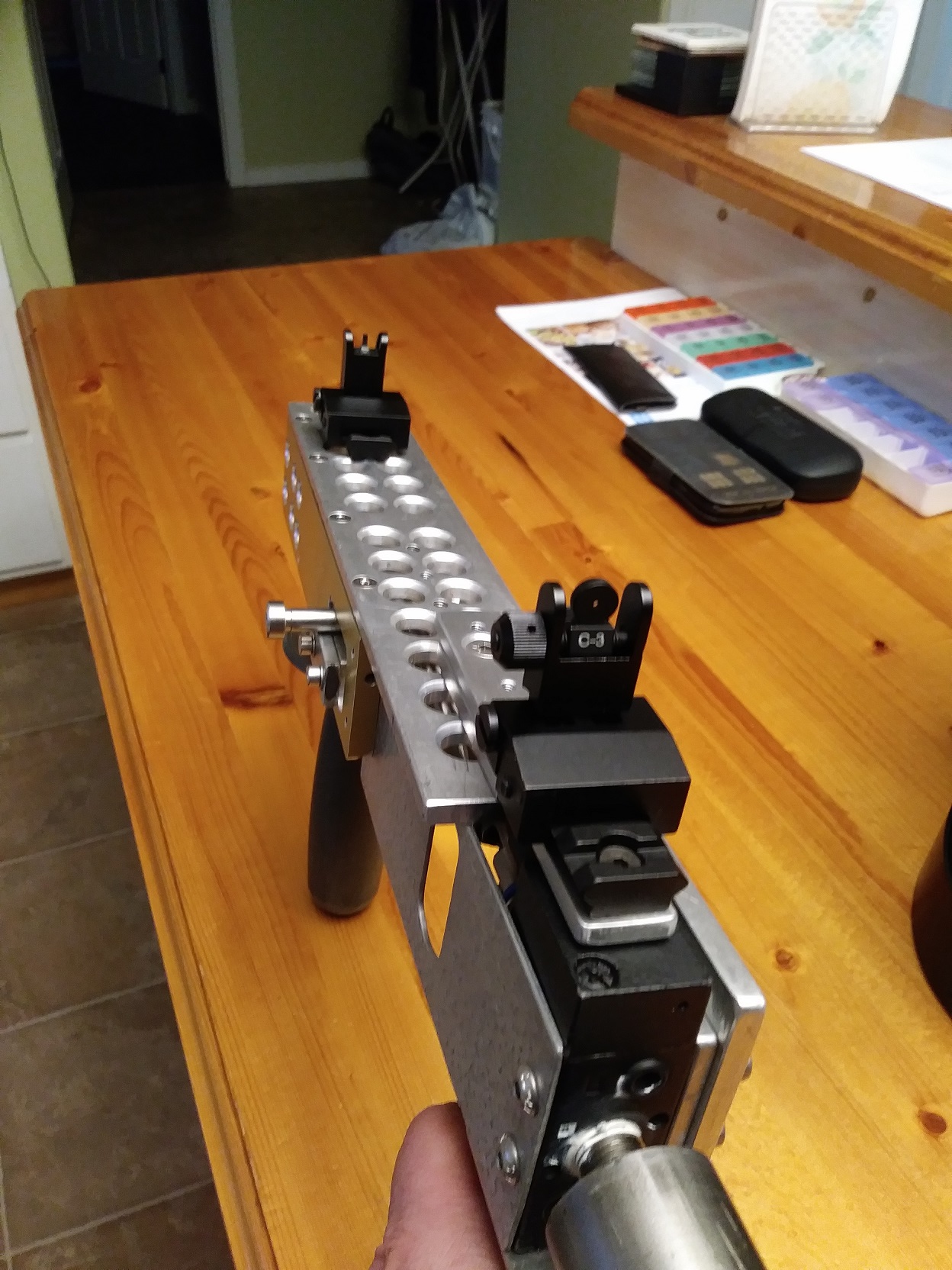

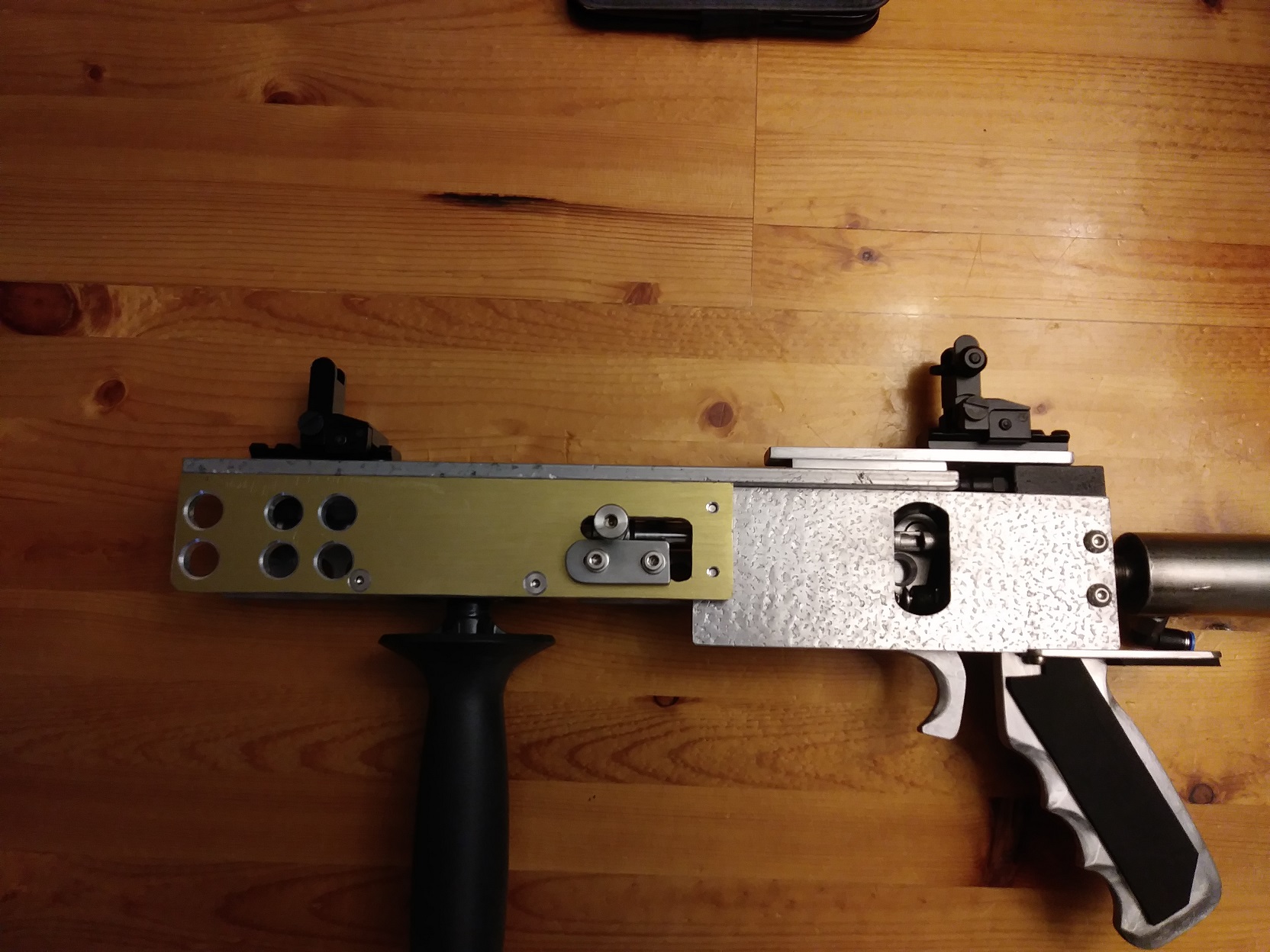

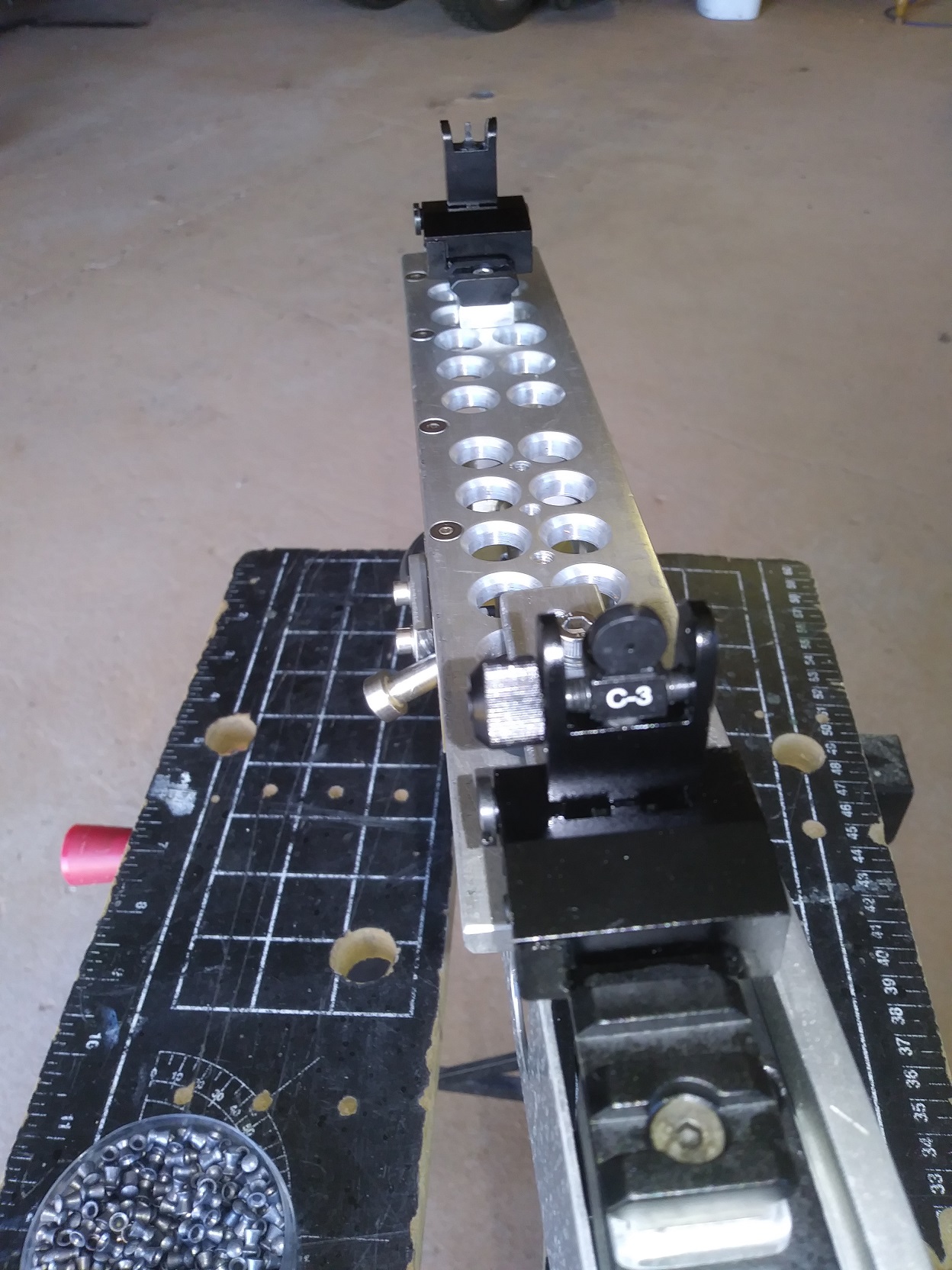

Finally got the flip up sights set up.
011 (3).jpg

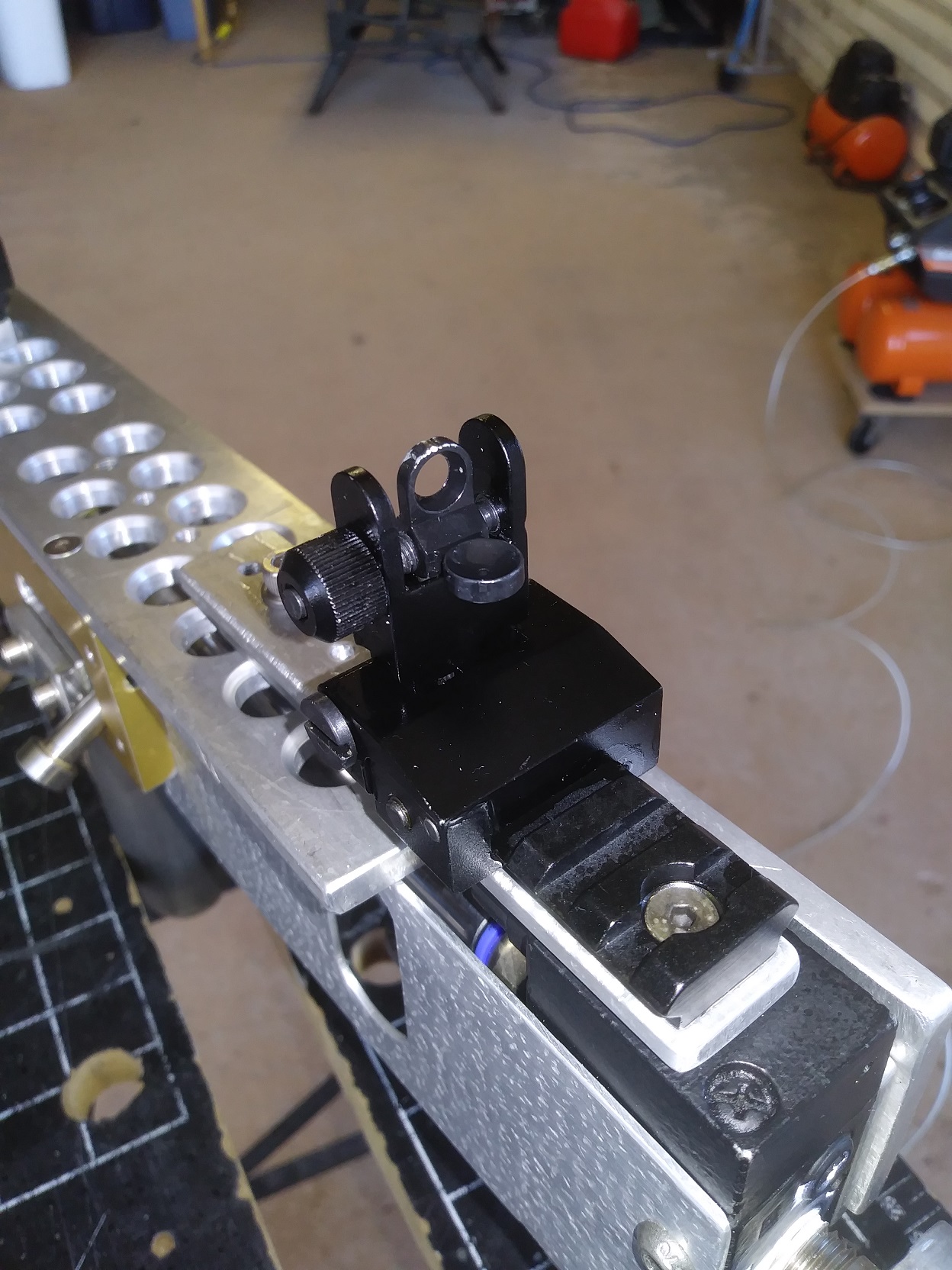

Rear sight has duel apature, the small one seems better at close range.
011 (1).jpg

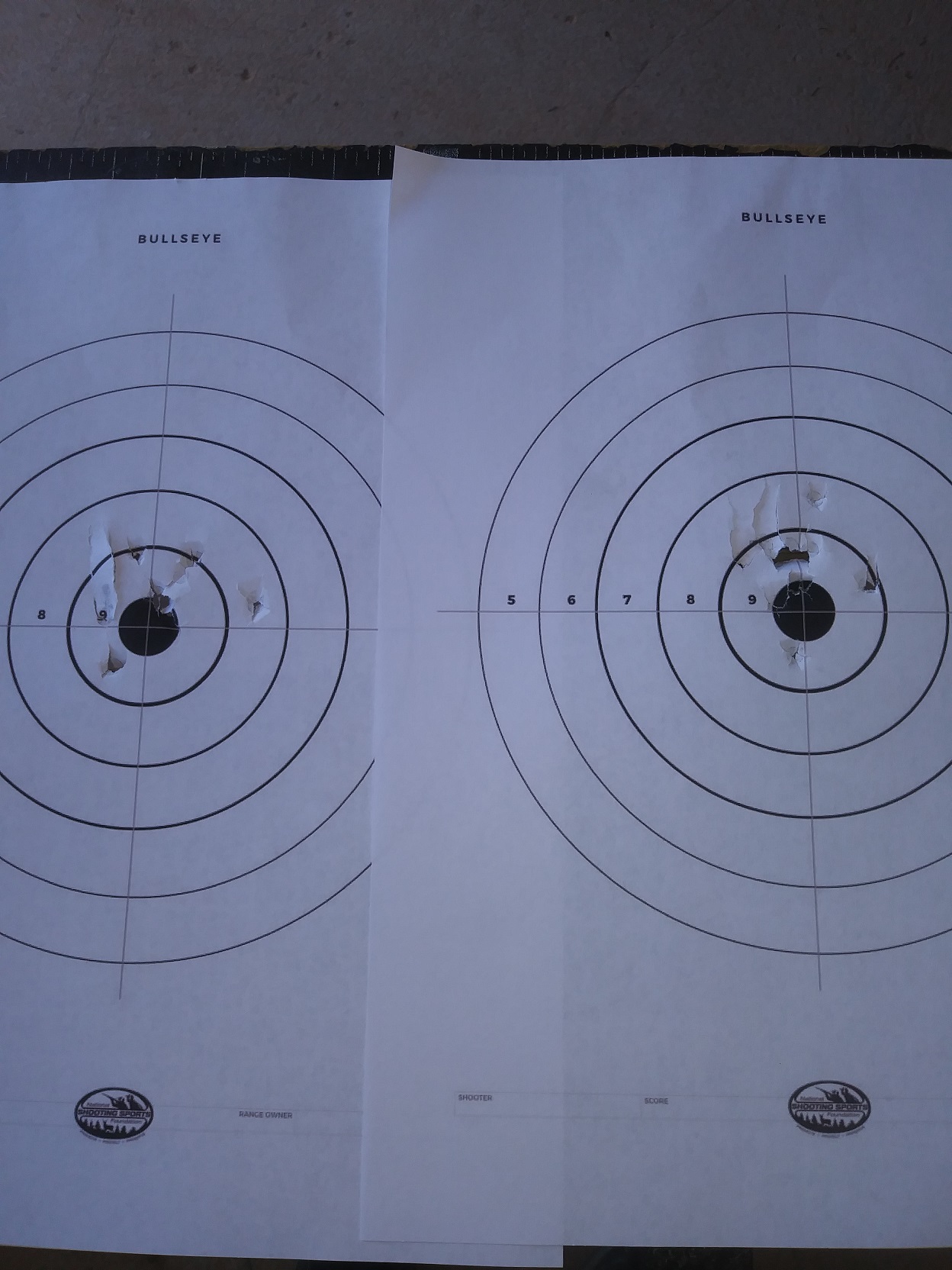

2 x 10 shots at 9m bullseye target.
011 (2).jpg
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed May 08, 2019 9:10 am

For a home-made smoothbore those are excellent groups at 9 meters with open sights, bravo!
hectmarr wrote:You have to make many weapons, because this field is long and short life
hectmarr
Sergeant
Sergeant
Argentina
Posts: 1064
Joined: Sat May 07, 2016 3:49 pm
Location: Argentina
Has thanked: 273 times
Been thanked: 276 times
Contact:

Wed May 08, 2019 10:31 am

Good precision, and as always, an excellent completion of your weapon.
Every time I see a weapon built by you, an idea comes to mind, "Air weapons do not exist, they are manufactured." Good job.
