High pressure pengun V3 *Update 7/18/10
- Mr.Sandman
- Corporal 3
- Posts: 762
- Joined: Fri Mar 28, 2008 9:10 am
- Contact:
The can was filles with water and then shot with a 3mm steel ball. The golfball was obviously shot with a pin. When I get my c02 tank the power will be much more impressive.
Yeah, it's that important.
-
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Thu Jul 15, 2021 1:04 am, edited 1 time in total.
- Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
-
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Thu Jul 15, 2021 1:04 am, edited 2 times in total.
- Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
LOL
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
- clemsonguy1125
- Sergeant 5
- Posts: 1485
- Joined: Tue Jul 21, 2009 4:00 pm
- Location: East Coast
The curse of the pen guns title
I know! I kept looking at the title from the corner of my eye while typing out the post, convinced I had written "penguin" by mistake hehejackssmirkingrevenge wrote:Freefall wrote:When I first saw the title, I read it as "Pneumatic penguin", and wondered what you were doing with small flightless birds. Then I clicked the link and all made sense.
That is all.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
With high pressure, small calibre projectiles can be accelerated to high velocities which compensates for their diminutive side. Mypengun v2 was surprisingly powerful, though granted it had the advantage of barrel length beyond what would fit into a pen-sized pachage.SpudBlaster15 wrote:The damage shots are fairly impressive for a 3mm projectile, but as always, more pressure would be nice.
My ultimate goal would be to make one that can take 3000 or so psi - and I believe that on such a small scale, epoxy construction would be up to the task - though it would then be a chore to pilot it, and I'm not sure a schrader would stand up to repeated use at those pressures so perhaps some sort of custom fill/pilot valve would be required.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Mr.Sandman
- Corporal 3
- Posts: 762
- Joined: Fri Mar 28, 2008 9:10 am
- Contact:
I was thinking the same thing. @3000 psi this thing would have incredible power for it's size, probably near or higher than that of the pop shot micro. I think that I will build a nice brass pump for this gun similar to that that jord2daje built here.jackssmirkingrevenge wrote:With high pressure, small calibre projectiles can be accelerated to high velocities which compensates for their diminutive side. Mypengun v2 was surprisingly powerful, though granted it had the advantage of barrel length beyond what would fit into a pen-sized pachage.SpudBlaster15 wrote:The damage shots are fairly impressive for a 3mm projectile, but as always, more pressure would be nice.
My ultimate goal would be to make one that can take 3000 or so psi - and I believe that on such a small scale, epoxy construction would be up to the task - though it would then be a chore to pilot it, and I'm not sure a schrader would stand up to repeated use at those pressures so perhaps some sort of custom fill/pilot valve would be required.
Yeah, it's that important.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
I'm thinking it would be easier to put together a schrader attachment for my SCUBA tankMr.Sandman wrote:I think that I will build a nice brass pump for this gun similar to that that jord2daje built here.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Mr.Sandman
- Corporal 3
- Posts: 762
- Joined: Fri Mar 28, 2008 9:10 am
- Contact:
I should invest into a scuba tank, having that kind of pressure at my disposal would be rather nice.
Yeah, it's that important.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times

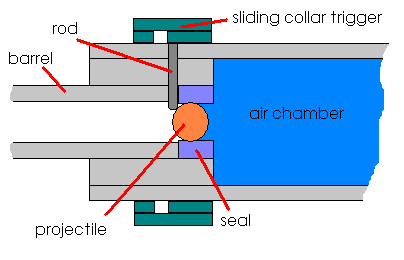

Since "valveless" is my word of the now, how about this for a super-efficient pengun
- Attachments
-
- vlcollartrigger.gif (12.2 KiB) Viewed 3736 times
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times

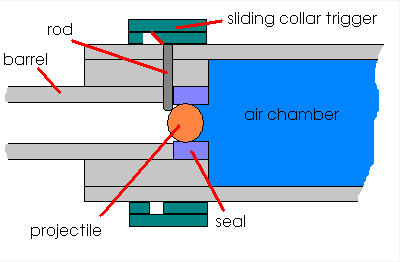

The pin restrictor would need an angle on it so it can reset the pin, like this:
- Attachments
-
- mod.png (5.86 KiB) Viewed 3731 times
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
- clemsonguy1125
- Sergeant 5
- Posts: 1485
- Joined: Tue Jul 21, 2009 4:00 pm
- Location: East Coast
Did you ever make a succcessful valveless gun JSR?
That is all.
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
not a bad idea... esspecially since you can use QC fittings to build it (ohh BTW there are smaller QC than those normally used for pneumatics... IDK what they are called but I think you can find them somewhere)
Children are the future
unless we stop them now
unless we stop them now
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
of course, that was just the concept drawingGun Freak wrote:The pin restrictor would need an angle on it so it can reset the pin, like this
Aside from my breech detent prototypes - where a valve feeds air into a chamber sticking the projectile in the breech until enough pressure builds up - I had made one design where the projectile is already held by the pressure and required to be physically released via the detent.clemsonguy1125 wrote:Did you ever make a succcessful valveless gun JSR?
LeMaudit had suggested something similar here, though I think I prefer to "roll my own"POLAND_SPUD wrote:not a bad idea... esspecially since you can use QC fittings to build it (ohh BTW there are smaller QC than those normally used for pneumatics... IDK what they are called but I think you can find them somewhere)
hectmarr wrote:You have to make many weapons, because this field is long and short life
