mini pneumatic ballistic knife

Miniature guns are novelty custom, unique, and sometime downright crude! Common construction materials often include pill bottles or pens. Show us your work!
User avatar
Zeus
Staff Sergeant
Staff Sergeant
Posts: 1505
Joined: Tue Oct 27, 2009 7:34 pm
Location: 'Straya, C*nt

Sun Sep 04, 2011 6:00 pm

Thanks for the advice. I'll let the thread return to it's original topic
/sarcasm, /hyperbole
Coablt96
Recruit
Recruit
Posts: 1
Joined: Mon Sep 05, 2011 1:24 pm

Mon Sep 05, 2011 1:55 pm

hey if any one can tell me how does this release mech. work i don't seem to get how it works on the pneumatic ballistic knife :?:
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Mon Sep 05, 2011 2:25 pm

It works just like quick connect fittings, when the collar is pushed forward, the bearings are free to move and release the blade.


Here's an example of an actual quick connect fitting being used as a release valve:


Another possibly way of putting it togther, in this case the air propells a piston as opposed to acting directly on the knife itself, with the added benefit of the gasses being retained thus greatly reducing firing noise.

hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
urgle the danish cow
Specialist
Specialist
Posts: 176
Joined: Sun Jul 26, 2009 4:48 pm

Wed Sep 21, 2011 4:46 pm

i know this is an old thread but jack. eat your heart out
built this some time ago and finally got to finish blade

[/url]
PVC Arsenal 17
Staff Sergeant 3
Staff Sergeant 3
Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States

Wed Sep 21, 2011 6:36 pm

jackssmirkingrevenge wrote:Another possibly way of putting it togther, in this case the air propells a piston as opposed to acting directly on the knife itself, with the added benefit of the gasses being retained thus greatly reducing firing noise.

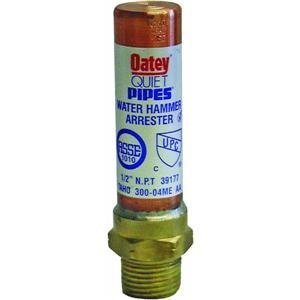

I wonder if you could adapt a water hammer arrester to drive a blade in the same manner.


I have the same arrester as that one and what I noticed was that it required a lot of force just to move the internal piston about an inch. I'm not sure if it could give the blade adequate acceleration. I'd also be concerned about the pushrod damaging the [plastic] internal piston due to the force. Only one way to find out...
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Sep 21, 2011 11:07 pm

PVC Arsenal 17 wrote:I wonder if you could adapt a water hammer arrester to drive a blade in the same manner.
Interesting thought, but you're still limited to what you can recock inline (unless you use a lever, vice or hydraulic press etc.) which is similar to the spring powered ballistic knives - as opposed to pneumatics where you add the pressure incrementally with a pump and can achieve a lot more compression.

I actually bought a couple of quick-connects with the intention of building the last design posted but now I'm not so sure that a how-to of a quiet ballistic knife that can be built by "anyone" is such a good idea.
i know this is an old thread but jack. eat your heart out
builtthis some time ago and finally got to finish blade
Looks good :) seems a bit on the heavy side though. How easy is it to fire, I imagine there's a lot of friction on that single contact point.
hectmarr wrote:You have to make many weapons, because this field is long and short life
PVC Arsenal 17
Staff Sergeant 3
Staff Sergeant 3
Posts: 1762
Joined: Mon Mar 27, 2006 4:18 pm
Location: United States

Thu Sep 22, 2011 12:18 am

jackssmirkingrevenge wrote:but now I'm not so sure that a how-to of a quiet ballistic knife that can be built by "anyone" is such a good idea.
Make one but never tell anyone 8)

I'm sure a lot of us here follow that rule given some of the crazy laws these days...
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Sep 22, 2011 1:08 am

PVC Arsenal 17 wrote:Make one but never tell anyone 8)
... but in that case, what's the use of using standard parts when I have a lathe and mill?
I'm sure a lot of us here follow that rule given some of the crazy laws these days...
Certainly much of the stuff I've done recently I haven't published. I was talking to a technician doing some maintenance on one of our instruments and casually mentioned I had invested in some machine tools and his immediate reply was "What do you want them for? Weapons?" - I was a bit taken aback, "Well... uh, steam engines?". "Sure ;)"

:roll:
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
urgle the danish cow
Specialist
Specialist
Posts: 176
Joined: Sun Jul 26, 2009 4:48 pm

Thu Sep 22, 2011 4:00 pm

Looks good :) seems a bit on the heavy side though. How easy is it to fire, I imagine there's a lot of friction on that single contact point.[/quote]

its not to heavy bc the rear is aluminiom and the steel blade keeps it front heavy and going straight. also it has a lot of air volume. it used to be hard to shoot but i filed a 45 degree angle where the 90 degree angle was at the end of the notch to help with that
maklaw
Private 2
Private 2
Posts: 20
Joined: Thu Aug 05, 2010 11:16 am
Location: España

Thu Oct 06, 2011 6:26 pm

very good, simple and effective
Un poco de color y de llavero
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Thu Oct 06, 2011 11:13 pm

Gracias, tengo un otro planeado, utilizando esta hoja hecha por jakethebeast:


hectmarr wrote:You have to make many weapons, because this field is long and short life
maklaw
Private 2
Private 2
Posts: 20
Joined: Thu Aug 05, 2010 11:16 am
Location: España

Fri Oct 07, 2011 5:21 am

Eso es increíble, tiene muy buen aspecto
Ya tengo ganas de verlo acabado
Me preocuparía mantenerse recto a una distancia de unos 6metros ?!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Fri Oct 07, 2011 6:28 am

maklaw wrote:Me preocuparía mantenerse recto a una distancia de unos 6metros ?!
Hay que ver la relacion entre centro de presion y centro de gravedad, el primero tiene que ser detras el segundo:

hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
jakethebeast
Corporal 5
Corporal 5
Finland
Posts: 945
Joined: Sat Jul 03, 2010 4:20 pm
Location: Jakes cave

Fri Oct 07, 2011 2:38 pm

JSR, you posted the blade i made for you, it would be kind to tell me what ya guys were talking about it :D
Est Sularus Oth Mithas
User avatar
al-xg
Corporal 2
Corporal 2
Great Britain
Posts: 643
Joined: Fri Jan 19, 2007 12:29 pm

Fri Oct 07, 2011 2:58 pm

"Nice, you should make it pretty."
"!I have other plans: Look shiny!"
"?but Jack will it fly straight?"
"Have a look at this wonderful diagram illustrating the CP-CG relationship with stability."

Context translator :)
