You have a good point, if it had to be built as an auto it would probably fire in bursts as opposed to single shots.
hectmarr wrote:You have to make many weapons, because this field is long and short life
Hey jack I got this new idea going. It combines ur valveless design with my slidevalve idea. The bb's are pushed past the valve which in your case stops the bb's from flying out and presses in that valve for a burst of air. here is the link:)jackssmirkingrevenge wrote:This is an idea I had a while back.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
The 3/4" chamber was for a high pressure test single shot launcher, while the BBMG was just a concept that I never built.
edit: a more practical incarnation of the idea
edit: a more practical incarnation of the idea
hectmarr wrote:You have to make many weapons, because this field is long and short life
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
IDK... I'd have to test that but I 6mm bbs are the smallest ammo that I have and I don't think I have any 8X6 fittings ATMwould they be adaptable to the valveless concept as a trigger?
they are useful for all sorts of things... I use them also as an air hose because they are a lot lighter than hydraulic hoses
have a look at some of their function fittings as well -> http://www.cmatic.it/moduli/catalogo/view/serie/MV/0/0
Children are the future
unless we stop them now
unless we stop them now
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
I'm assuing this is what they look like inside:
Doesn't look like it can be readily adapted to hold a projectile in a reliable and airtight manner...
Doesn't look like it can be readily adapted to hold a projectile in a reliable and airtight manner...
hectmarr wrote:You have to make many weapons, because this field is long and short life
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
well you are probably right... though who said you have to use spherical ammo
lol you might as well use sabots
I know I know... I am overusing the word 'lol'...
lol you might as well use sabots
I know I know... I am overusing the word 'lol'...
Children are the future
unless we stop them now
unless we stop them now
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Ok, lol (lol!) but even assuming you're using sabots, how would you fit it into the design? I'm having a hard time imaginining it lol.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Lockednloaded
- Staff Sergeant
- Posts: 1566
- Joined: Thu Sep 03, 2009 9:38 pm
- Location: Texas, USA
- Been thanked: 7 times
you could try to use the male fitting as the sabot, I don't no how you could incorporate that efficiently into a launcher.
I love lamp
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times

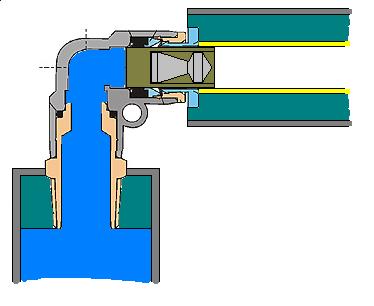

Hmm... not very appealing.
- Attachments
-
- vlpushfit.JPG (12.85 KiB) Viewed 3559 times
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Lockednloaded
- Staff Sergeant
- Posts: 1566
- Joined: Thu Sep 03, 2009 9:38 pm
- Location: Texas, USA
- Been thanked: 7 times
Pretty is as pretty does despite the fact that that design is pretty awk. If I had some of these fittings I may try it out, but I don't think it is worth ordering some, but then again, I've never understood your love of small caliber or, as I see it, overcomplicated innovation
I love lamp
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Urban surroundings, 'nuff said.Lockednloaded wrote:I've never understood your love of small caliber
If anything that involved fabrication beyond sticking a couple of store-bought fittings together was "overcomplicated", this would be a rather boring and static hobby.overcomplicated innovation
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Lockednloaded
- Staff Sergeant
- Posts: 1566
- Joined: Thu Sep 03, 2009 9:38 pm
- Location: Texas, USA
- Been thanked: 7 times
fair enough, to each his own, live and let live, etc..
will you keeping your valve-less attempts single shot at the moment, or will you make the big leap to full/semi auto valve-less?
will you keeping your valve-less attempts single shot at the moment, or will you make the big leap to full/semi auto valve-less?
I love lamp
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
I don't think this particular "detent triggered" design is ideal for full auto, unless you are cycling it externally as I had proposed here.
For full auto, the ideal would be to have a sealed breech that will only release the projectile at a given pressure and reset instantly - something like this with an airtight seal - and the cycle would be as follows:
1 - Air feed valve to projectile chamber opened
2 - Projectile moves to breech and is held by seal
3 - Pressure builds up in the chamber until the projectile is released
The next projectile then moves to the breech and the cycle is repeated until the air feed is closed or projectiles run out.
The only way I see the "detent triggered" design work as semi or full auto is using cartridges, maybe looking like this. The issue is that they're a bit complex to produce in bulk without machining facilities.
For full auto, the ideal would be to have a sealed breech that will only release the projectile at a given pressure and reset instantly - something like this with an airtight seal - and the cycle would be as follows:
1 - Air feed valve to projectile chamber opened
2 - Projectile moves to breech and is held by seal
3 - Pressure builds up in the chamber until the projectile is released
The next projectile then moves to the breech and the cycle is repeated until the air feed is closed or projectiles run out.
The only way I see the "detent triggered" design work as semi or full auto is using cartridges, maybe looking like this. The issue is that they're a bit complex to produce in bulk without machining facilities.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
well maybe it isn't the best idea but some of their products are just great... if you try those push-to-connect fittings & tubing you won't be using anything else
Children are the future
unless we stop them now
unless we stop them now
