mini hybrid cannon
this is my mini hybrid cannon inspired by JSR's mini hybrid.
barrel; 40cm x .5cm
chamber; 11cm x 1.3cm
chamber volume; 13ml
valve type; burst disk - photo paper
fill valve; schrader
spark gap; .5mm - .25mm
fueling; directly injected into the chamber with syringe
ignition; 9v DC ignitor
fuel; butane
well here are some pics tell me what you think!

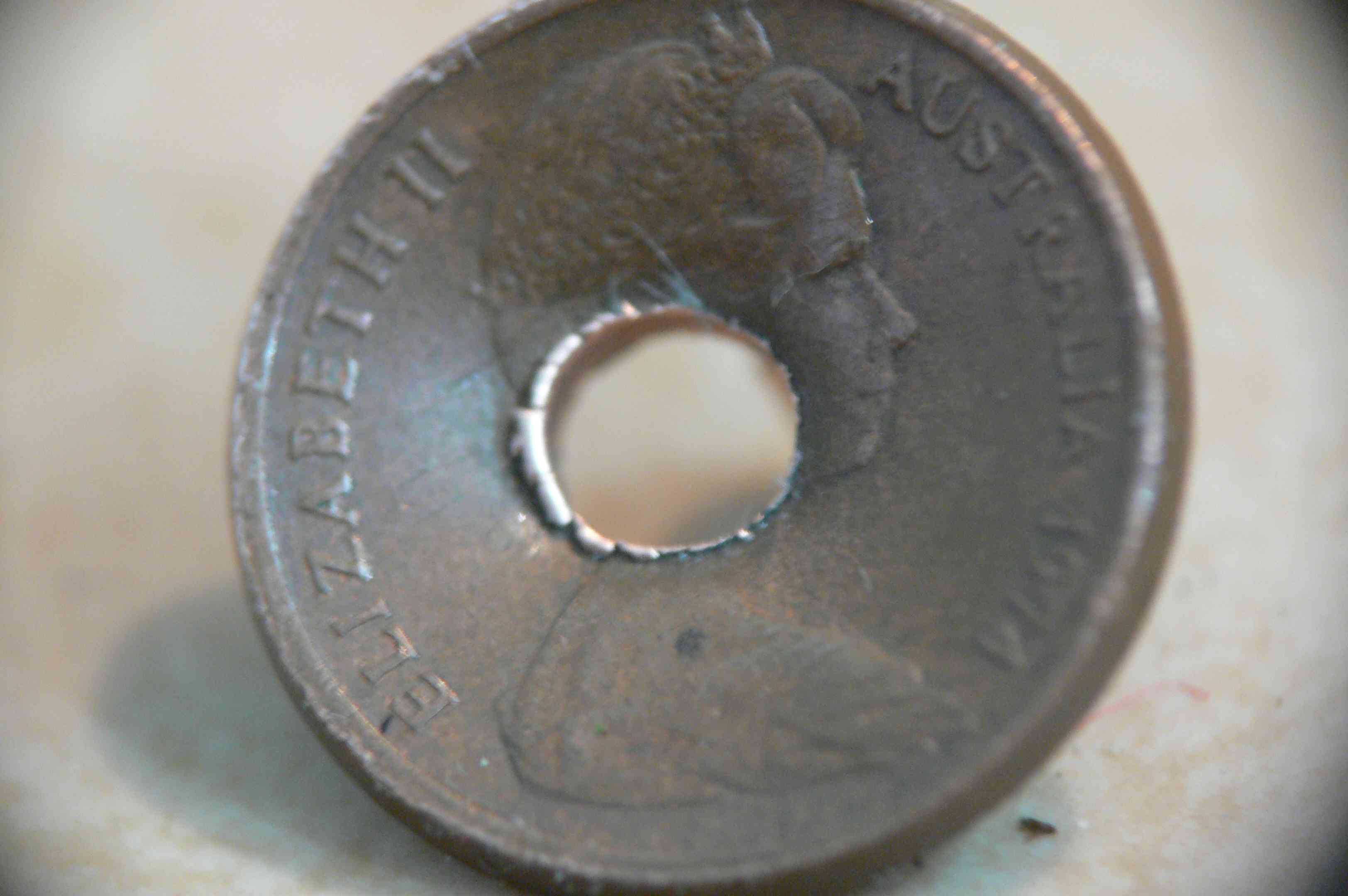

this shot was at 11x with a 4.5mm steel bb at point blank, hopefully i can get a vid soon
barrel; 40cm x .5cm
chamber; 11cm x 1.3cm
chamber volume; 13ml
valve type; burst disk - photo paper
fill valve; schrader
spark gap; .5mm - .25mm
fueling; directly injected into the chamber with syringe
ignition; 9v DC ignitor
fuel; butane
well here are some pics tell me what you think!
this shot was at 11x with a 4.5mm steel bb at point blank, hopefully i can get a vid soon
Last edited by ilovefire on Tue Sep 14, 2010 3:07 am, edited 7 times in total.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Looking good!
We need more details though, mix number, projectile type, filling system (are you injecting directly into the chamber or are you using a separate premixed chamber?) etc.
oh, and videos!
Just replace ( and ) with [ and ]
We need more details though, mix number, projectile type, filling system (are you injecting directly into the chamber or are you using a separate premixed chamber?) etc.
oh, and videos!
Easy, (url=http://www.spudfiles.com/forums/mini-hy ... 21655.html)your text here(/url)ilovefire wrote:(can someone PM me on how to put a link on some text or where i can find out how?)
Just replace ( and ) with [ and ]
hectmarr wrote:You have to make many weapons, because this field is long and short life
- jakethebeast
- Corporal 5
- Posts: 945
- Joined: Sat Jul 03, 2010 4:20 pm
- Location: Jakes cave

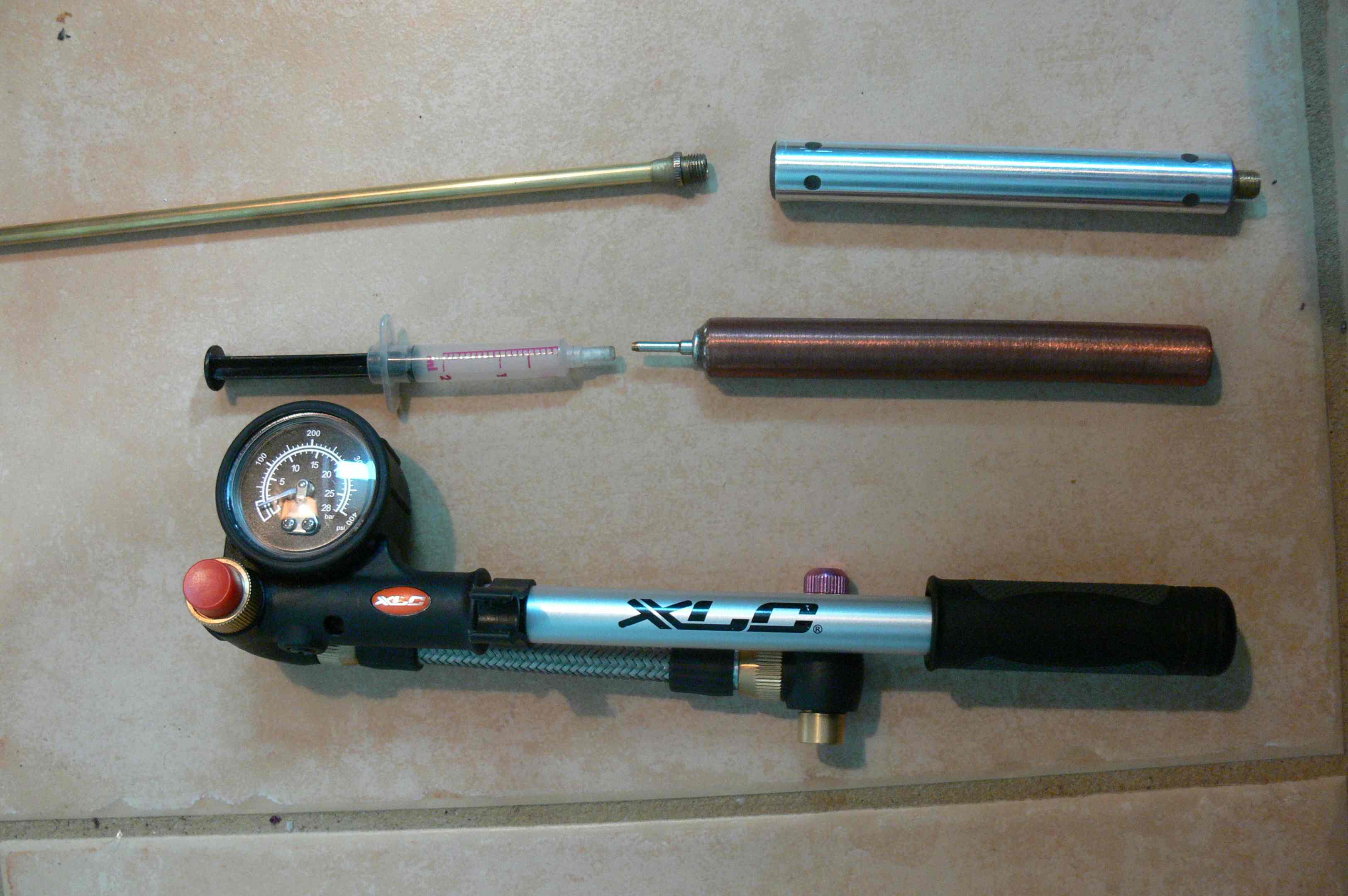

yeah this mini hybrid mayhem is the best, every day something new to read just tell me what is that copper thing
yea i love this thing i think im addicted to the mini hybrid stuff wouldnt mind trying a bolt action cartridgejakethebeast wrote:yeah this mini hybrid mayhem is the best, every day something new to read just tell me what is that copper thing
oh yea i probably sould have said this before, its a mini refillable lighter refill i made, makes it a bit easier then having to use one of those big bulky ones
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Good stuff, what are you using for a burst disk?
hectmarr wrote:You have to make many weapons, because this field is long and short life
- Gun Freak
- Lieutenant 5
- Posts: 4971
- Joined: Mon Jan 25, 2010 4:38 pm
- Location: Florida
- Been thanked: 8 times
Did you use syringe epoxy or a different type? Building a hybrid is very intriguing... lol. Looking very good, have you tried higher mizes yet?
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
oh yea right im using photo paper like you, and i score it when i use it at low mixturesjackssmirkingrevenge wrote:Good stuff, what are you using for a burst disk?
yes i do use syringe epoxy iv got some 30min 3500psi stuff so that is hopefully enough, i think the highest i have gone is 11x but might try 15x soonGun Freak wrote:Did you use syringe epoxy or a different type? Building a hybrid is very intriguing... lol. Looking very good, have you tried higher mizes yet?
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Good luck with higher mixes, I have to say this looks really good, it's even more mini than mine at 5mL less chamber volume. I have plans to go even smaller though
hectmarr wrote:You have to make many weapons, because this field is long and short life
well i just took it to 15x and i am quite impressed i should have some pics soon, it is also not my smallest and is a beast compared to my 3ml ill try get some pic of that tojackssmirkingrevenge wrote:Good luck with higher mixes, I have to say this looks really good, it's even more mini than mine at 5mL less chamber volume. I have plans to go even smaller though

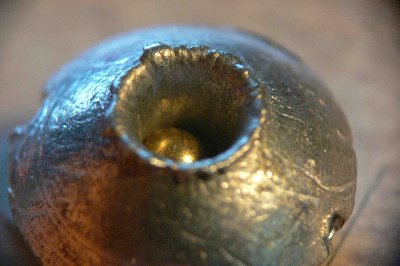

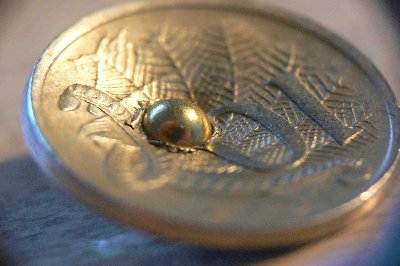

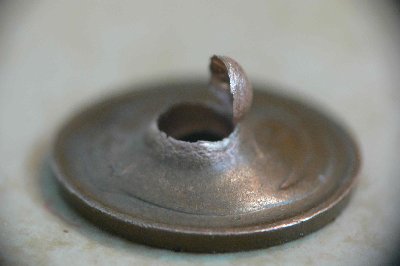

edit: got some more damage pics both were done at 15x with 4.5mm steel bbs
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Agreed!SpudFarm wrote:Impressive
Seems that after the pengun revival, the mini-hybrid revolution is spreading now
hectmarr wrote:You have to make many weapons, because this field is long and short life
- jakethebeast
- Corporal 5
- Posts: 945
- Joined: Sat Jul 03, 2010 4:20 pm
- Location: Jakes cave
yeah, now im building my own
