mini pneumatic ballistic knife

Miniature guns are novelty custom, unique, and sometime downright crude! Common construction materials often include pill bottles or pens. Show us your work!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 03, 2011 8:12 am

Following a discussing in the knife thread, decided to put a little prototype together.

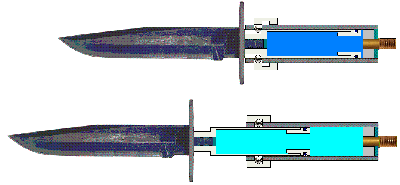

Concept:


Here it is in action at 300 psi in real time, 420 frames per second and 1000 frames per second:

[youtube][/youtube]

[youtube][/youtube]

[youtube][/youtube]

The knife blade is from a cheap little made-in-Taiwan knife, the rest of it is in Delrin. Chamber is an aluminium tube with a Delrin collar and 3mm steel bearings as a detent.

Some photos:
Attachments

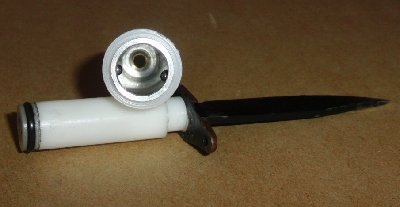

close up of the detent in the closed position
close up of the detent in the closed position

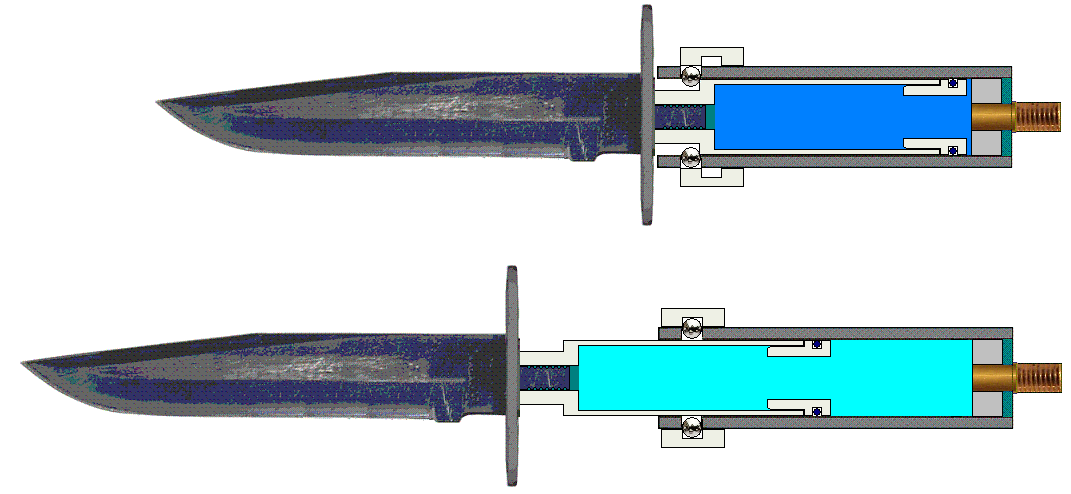

Firing sequence and internal details
Firing sequence and internal details

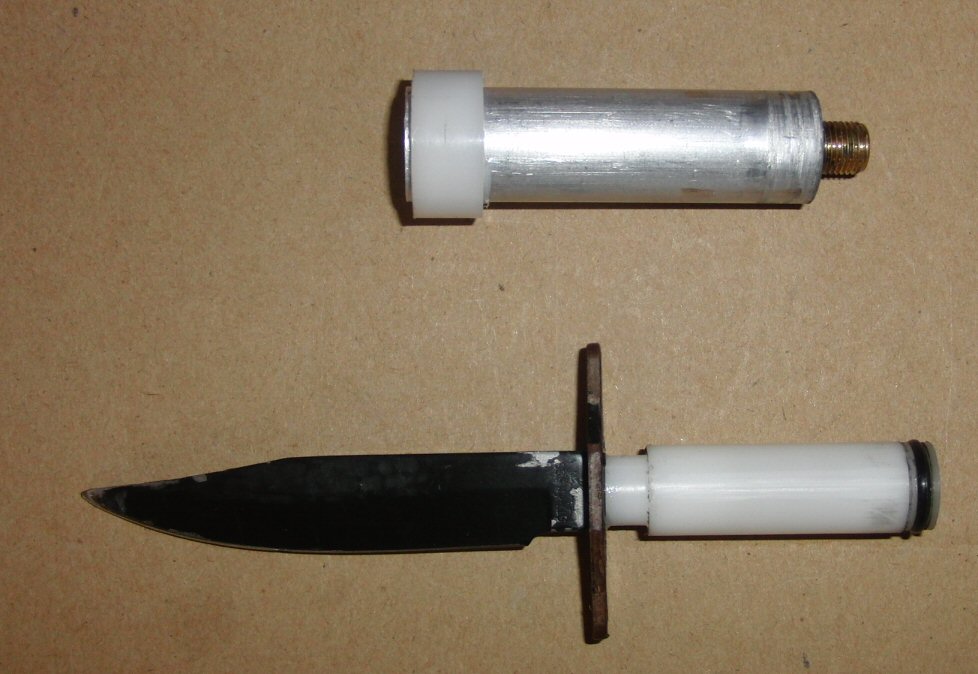

knife and chamber
knife and chamber
Last edited by jackssmirkingrevenge on Wed Feb 13, 2019 7:44 pm, edited 1 time in total.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
al-xg
Corporal 2
Corporal 2
Great Britain
Posts: 643
Joined: Fri Jan 19, 2007 12:29 pm

Sat Sep 03, 2011 8:18 am

I'd be interested to know at what pressure the ring fails.

Interestingly this is one occasion where slow motion does not make it look cooler :D
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 03, 2011 8:22 am

al-xg wrote:I'd be interested to know at what pressure the ring fails.
I made it out of Delrin because it's so easy to work with, seems ok at 300 psi. I'll take it higher after I'm sure the epoxy is fully cured.
Interestingly this is one occasion where slow motion does not make it look cooler :D
hehe that's exactly what I was thinking :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
LeMaudit
Corporal 2
Corporal 2
Posts: 665
Joined: Thu Apr 16, 2009 2:48 pm

Donating Members

Sat Sep 03, 2011 8:31 am

Great work :D
I love it!
I HAZ A BANG!
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Sat Sep 03, 2011 8:48 am

That's so cool!! :D
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 03, 2011 9:20 am

Cheers guys, this thing is really a lot of fun! Here's some more shots, with a little something the Dutch members might appreciate :)

[youtube][/youtube]
Last edited by jackssmirkingrevenge on Wed Feb 13, 2019 7:45 pm, edited 1 time in total.
hectmarr wrote:You have to make many weapons, because this field is long and short life
warhead052
Staff Sergeant 3
Staff Sergeant 3
Posts: 1769
Joined: Mon Mar 21, 2011 5:41 pm

Sat Sep 03, 2011 9:20 am

Nice job! Are you going to try a higher pressure when the epoxy has fully cured? If so, I may try making one of these.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 03, 2011 9:38 am

Took it to 400 psi and the shoulder on the "handle" which comes into contact with the detent deformed and released the knife. A brass collar would have been a good idea :)

One other thing worth noting, the collar is extremely difficult to push forward past 350 psi.
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
Labtecpower
Sergeant 3
Sergeant 3
Eritrea
Posts: 1297
Joined: Sat Feb 20, 2010 6:38 am
Location: Pyongyang
Has thanked: 5 times
Been thanked: 13 times

Sat Sep 03, 2011 10:06 am

Heineken! because it's empty i'll take it as a compliment :D

I prefer Hertog Jan, Palm, or Grolsch however :)

If you polish the thing, and make a brass collar it will look very nice.
User avatar
clemsonguy1125
Sergeant 5
Sergeant 5
Posts: 1485
Joined: Tue Jul 21, 2009 4:00 pm
Location: East Coast

Sat Sep 03, 2011 10:17 am

That looks pretty cool, but in america I know spring powered ballistic knives are illegal and can carry jail time. My guess would be pneumatic ones as well. Since I have no idea what country you are in.
That is all.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Sat Sep 03, 2011 10:51 am

Labtecpower wrote:Heineken! because it's empty i'll take it as a compliment :D
Do I sound like a guy who would shoot a full can of beer, even if was a shítty brand ;)
I prefer Hertog Jan, Palm, or Grolsch however :)
It's not the best Dutch beer but definitely the easiest to get hold of outside of Holland.
If you polish the thing, and make a brass collar it will look very nice.
Yeah, cap for the schrader, strip down and polish the blade... but you know me and aesthetics.
That looks pretty cool, but in america I know spring powered ballistic knives are illegal and can carry jail time. My guess would be pneumatic ones as well. Since I have no idea what country you are in.
Sounds a bit silly in a country where you can freely buy a semi-automatic rifle, unless they are considered to be in the same category as a suppressor - but even so, this is a horrible choice of weapon, you only get one shot and unless you have spare blades to hand, you're just left with a handle.

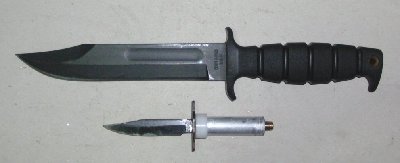

For scale, here it is with my 7 inch blade spec plus - if it didn't have sentimental value, I would be thinking of scaling up and launching the latter knife...
