Hi, This is my Mini Mag-Lite Coaxial gun.

Specs
.177 steel bb/pellets
600 fps as per the soda can chronograph
Plastic/Rubber Piston
So far only 200 PSI
Shrader Cap used to press valve Stem
**Piston is Servicable** :D

Ok I dont want to take it over 200 PSI because I dont know how much the Mag-Lite Can Handle. Also I can shoot a varity of ammo, for example you can fill the hollow point pellets with anything, glow paint for tracers, and "Magic powder" if a fairy is kind enough to lend you some.
( edited by BTB )


Now here are some pics
Attachments

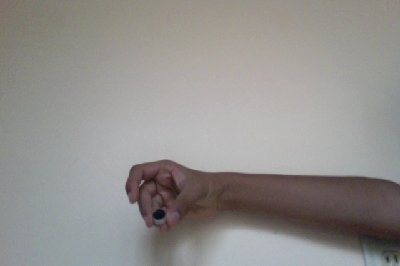

Fill/Pilot Valve
Fill/Pilot Valve

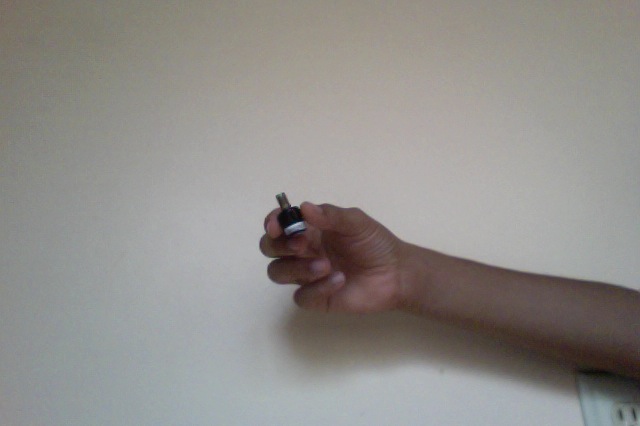

The Piston<br />Plastic cap with rubber glued on
The Piston
Plastic cap with rubber glued on
With the Front and Firing Cap Taken off
With the Front and Firing Cap Taken off

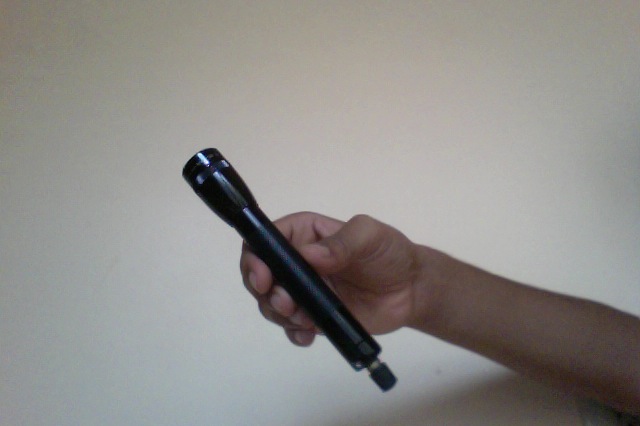

The Gun In Firing Position
The Gun In Firing Position
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Aug 08, 2012 11:30 am

Very nice, must be quite loud too :)

200 psi sounds like a good limit to stick too, you're getting pretty good performance anyway - and nicely done keeping it largely intact externally as a maglite!
hectmarr wrote:You have to make many weapons, because this field is long and short life
sagthegreat
Specialist 3
Specialist 3
Posts: 343
Joined: Thu Feb 16, 2012 5:23 pm
Location: Leesburg
Contact:

Wed Aug 08, 2012 11:40 am

Not that loud at 200PSI, but does anyone know the max pressure a mag lite can go to.
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Wed Aug 08, 2012 12:04 pm

What's the wall thickness and diameter of the aluminium tube?
hectmarr wrote:You have to make many weapons, because this field is long and short life
User avatar
mattyzip77
Sergeant 3
Sergeant 3
United States of America
Posts: 1249
Joined: Tue Jun 28, 2011 12:22 pm
Location: Taxachusetts

Donating Members

Wed Aug 08, 2012 12:51 pm

That is quite impressive. Will it actually hold the air for a decent amount of time??
Go Bruins!!!!
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Wed Aug 08, 2012 1:39 pm

sagthegreat wrote:Not that loud at 200PSI, but does anyone know the max pressure a mag lite can go to.
These aren't of the Mag Lite brand but I've taken both of these up to about 350PSI without any trouble. Stick under 400PSI and you should be fine in my opinion; though I don't blame you for wanting to stay lower than that.

edit: nice build by the way! I've been patiently waiting what must be about two years for another person to pick up on using these metal flashlights as coaxials.
sagthegreat
Specialist 3
Specialist 3
Posts: 343
Joined: Thu Feb 16, 2012 5:23 pm
Location: Leesburg
Contact:

Wed Aug 08, 2012 3:06 pm

mattyzip77 wrote:That is quite impressive. Will it actually hold the air for a decent amount of time??
It will hold air for at least 4 hours, i didn't go any longer because i thought it would mess up the sealing face

Also Mr.Crowly you took your real mag-lite one to 350? wow im going to try that lol
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Wed Aug 08, 2012 4:07 pm

Na, neither of them are actually Maglites; sometimes I just use that in the title to attract more viewers.

I would bet that a Mag Lite is built just as well, if not better, than that green 'Kathmandu' branded flashlight I modified. Put it this way, the aluminium is not going to fail at 350PSI; as long as your epoxy joints were applied correctly it should be fine at such pressures. You can always put it in a box or protective cover while you pressurize it and leave it for half an hour or so.
User avatar
Crna Legija
First Sergeant 2
First Sergeant 2
Posts: 2333
Joined: Sun Jul 20, 2008 5:14 am
Location: australia

Thu Aug 09, 2012 6:39 am

iv used one of the two AA mini maglites to 600psi when i used it for a air cylinder for my semi auto.
'' To alcohol... The cause of, and solution to, all of life's problems.”
--Homer Simpson

Add me on ps3: wannafuk, 8/11/11 cant wait
sagthegreat
Specialist 3
Specialist 3
Posts: 343
Joined: Thu Feb 16, 2012 5:23 pm
Location: Leesburg
Contact:

Thu Aug 09, 2012 2:59 pm

Okay So i found out that hollow tip pellets are awesome!

Pellet filled with glow paint=Tracers
Pellet filled with bleach= Poison Pellets
Pellets with a x cut in them= Frag Pellets
and various other pellet loads that I cant discuss here
sagthegreat
Specialist 3
Specialist 3
Posts: 343
Joined: Thu Feb 16, 2012 5:23 pm
Location: Leesburg
Contact:

Fri Sep 14, 2012 7:20 pm

So i sold 4 of these, how do i file a patent :D
User avatar
mattyzip77
Sergeant 3
Sergeant 3
United States of America
Posts: 1249
Joined: Tue Jun 28, 2011 12:22 pm
Location: Taxachusetts

Donating Members

Fri Sep 14, 2012 7:51 pm

Thats awesome man. How much did you charge??
Go Bruins!!!!
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Fri Sep 14, 2012 8:07 pm

and now realize that back in year 2007 200psi was considered high pressure
Children are the future

unless we stop them now
sagthegreat
Specialist 3
Specialist 3
Posts: 343
Joined: Thu Feb 16, 2012 5:23 pm
Location: Leesburg
Contact:

Sat Sep 15, 2012 11:52 am

i charge $40 per one, and poland, my customers can take it to 600psi if they want after they sign a wavier, i mean i dont wanna do it lol.
User avatar
MrCrowley
Moderator
Moderator
Posts: 10078
Joined: Fri Jun 23, 2006 10:42 pm
Location: Auckland, New Zealand
Been thanked: 3 times

Sat Sep 15, 2012 3:56 pm

Nice! $40 each isn't too bad. I received more than a few requests after uploading the videos and how-to guide of my one but figured it would be too much of a hassle, especially since I live in a different hemisphere.
