I've been commissioned to build a pen gun similar to this and though I would document the build process for those who are interested

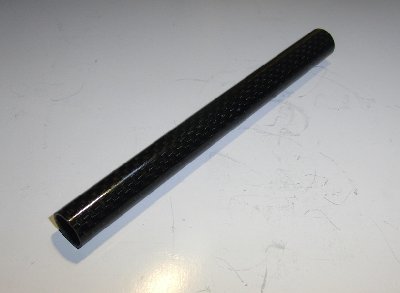

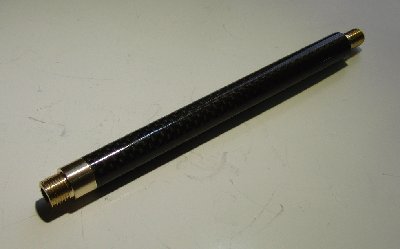

First step is rather basic, the CF body is cut to size and the ends are squared up on the lathe using a carbide tool at high rpm:
First step is rather basic, the CF body is cut to size and the ends are squared up on the lathe using a carbide tool at high rpm:
hectmarr wrote:You have to make many weapons, because this field is long and short life
- jakethebeast
- Corporal 5
- Posts: 945
- Joined: Sat Jul 03, 2010 4:20 pm
- Location: Jakes cave
I bet JSR used epoxy somewhere
Est Sularus Oth Mithas
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Don't worry, epoxy will feature here toomark.f wrote:Sweet. Should be interesting to see your construction methods in use that don't involve epoxy. :p
hectmarr wrote:You have to make many weapons, because this field is long and short life
this looks awesome! Been absent from the forums for awhile, but this looks interesting, can't wait to see it.
"Some say his pet elephant is pink, and that he has no understanding of "PG rated forum". All we know is, he's called JSR. "
-
- Private
- Posts: 13
- Joined: Tue May 22, 2012 7:12 pm
How much psi are you planning to operate at?
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Should be able to take 400 psi safely.yodabeast14 wrote:How much psi are you planning to operate at?

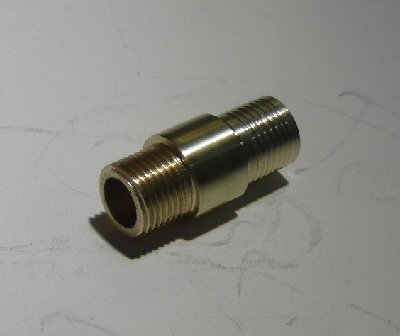

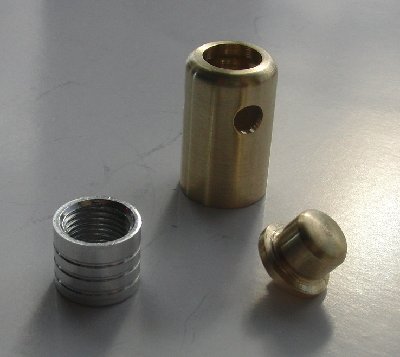

Here's the front endcap, threaded 1/8" BSP to allow a 0.177" barrel adapter to be fitted to the 0.22" barrel. Note the grooves to improve the adhesive grip.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
10mm ID 12mm OD tube sold as outriggers for quadcopters.jrrdw wrote:Arrow shaft?

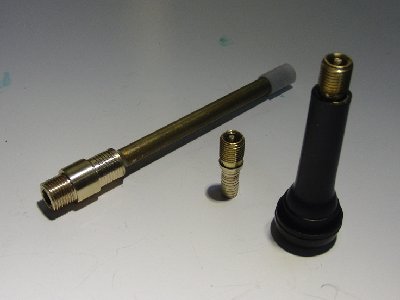

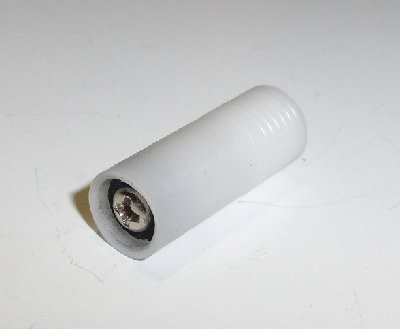

Here's the barrel setup, note the delrin sleeve at the breech end which increases the area on which the piston seal pushes, reducing wear. The OD of this sleeve is 8mm, you would think that it leaves too small a gap between barrel and chamber for air to flow but in fact, the cross sectional area is greater than that of the 5.5mm barrel.
Also illustrated is the schrader valve prepared for attachment, along with a "virgin" example.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- jakethebeast
- Corporal 5
- Posts: 945
- Joined: Sat Jul 03, 2010 4:20 pm
- Location: Jakes cave
Hehe nice work, your almost finished, now all you need is... epoxy
Est Sularus Oth Mithas
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
- jakethebeast
- Corporal 5
- Posts: 945
- Joined: Sat Jul 03, 2010 4:20 pm
- Location: Jakes cave
Nice one! How´s the power?
