Fork in the road here...

A place for general potato gun questions and discussions.
User avatar
Sticky_Tape
Sergeant 2
Sergeant 2
Posts: 1175
Joined: Thu Jan 31, 2008 6:35 pm
Location: Sydney, Nova Scotia, Canada.

Tue Apr 08, 2008 4:16 pm

Yeah be reasonable you can't eat a baby!

Note the word (luncher).[/b]
You can tell how awesome a cannon is by the pressure used.
http://www.spudfiles.com/forums/high-pr ... 12803.html
xnt rnm ne z ahtbg
User avatar
Blitz
Corporal 2
Corporal 2
United States of America
Posts: 627
Joined: Sat Apr 07, 2007 1:48 am
Location: Illinois
Been thanked: 3 times

Tue Apr 08, 2008 5:20 pm

jackssmirkingrevenge wrote:I bet Blitz is really regretting using that expression in the title now :roll: :D
Comes with the territory, I found it amusing actually. :)

Well, after some review and analysis of parts I already have on hand, I felt it'd be cheaper and more rewarding to go pneumatic. If I want to make a huge combustion launcher, I'm sure I can scrounge up some large diameter pipe somewhere and I'll just worry about it later. Although like schmanman said when he was considering upgrading his SWAT, switching to more 4" volume means higher pressure, and my compressor can handle 200psi. But what the hell, I'll stick with 6" anyway.

I do need to devise a breech of some sort however, which I think would just be fine with a set of metal cam-and-groove hose couplings on a floating barrel. I'll start another post with my project.
User avatar
SpudMonster
Specialist 2
Specialist 2
Posts: 250
Joined: Mon Aug 08, 2005 5:54 pm

Tue Apr 08, 2008 6:46 pm

If you fuck in the road, you'll get arrested for indecent exposure.
User avatar
starman
Sergeant Major
Sergeant Major
United States of America
Posts: 3027
Joined: Wed Dec 12, 2007 12:45 am
Location: Simpsonville, SC

Donating Members

Tue Apr 08, 2008 7:06 pm

Being a combustion leaning guy myself, I would like to throw my hat in your ring to say ....go big combustion. I want to challenge the notion that a pneumatic design will automatically offer you a more powerful big-bore spud cannon, assuming that's what you're looking for of course. Pneumatics will ultimately win against a burst-disked 1x combustion but you'll have to use big airtank, a lightening fast piston, and large psi to do it.

A feature almost totally ignored on 1x combustions is the simple addition of a burst disk union or camlock burst disk option. I have been getting noticable power and speed increases using the burst disk below. These burst around 80 psi and offer amazing results over a humble standard advanced combustion.

Even using a modest 30 psi disk will show a noticable performance improvement. I'm using the male camlock plugs shown below as a barrel stump by itself to use in my noise cannons I'm building.

With that big chunk of 6" pipe you have, you could build a whole fleet of big combustion chambers.
Attachments

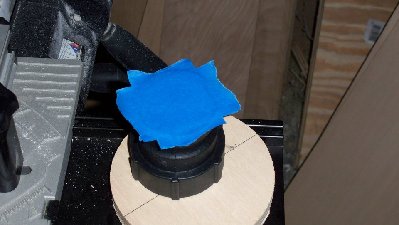

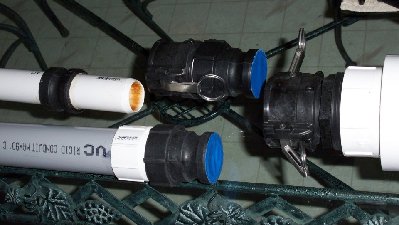

Spud barrel and burst disk adapter and golfball barrel with burst disk installed. 4 tape layers = 80 psi, 2 tape layers = 30psi. Tape is the blue 3M 2" masking tape. Clean and easy to cut and use. Blast bits are easy to see and clean up.
Spud barrel and burst disk adapter and golfball barrel with burst disk installed. 4 tape layers = 80 psi, 2 tape layers = 30psi. Tape is the blue 3M 2" masking tape. Clean and easy to cut and use. Blast bits are easy to see and clean up.
4 layers cris-crossed = 80 psi
4 layers cris-crossed = 80 psi

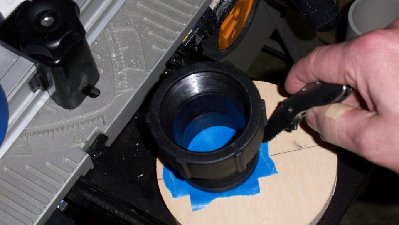

Easy to trim.
Easy to trim.

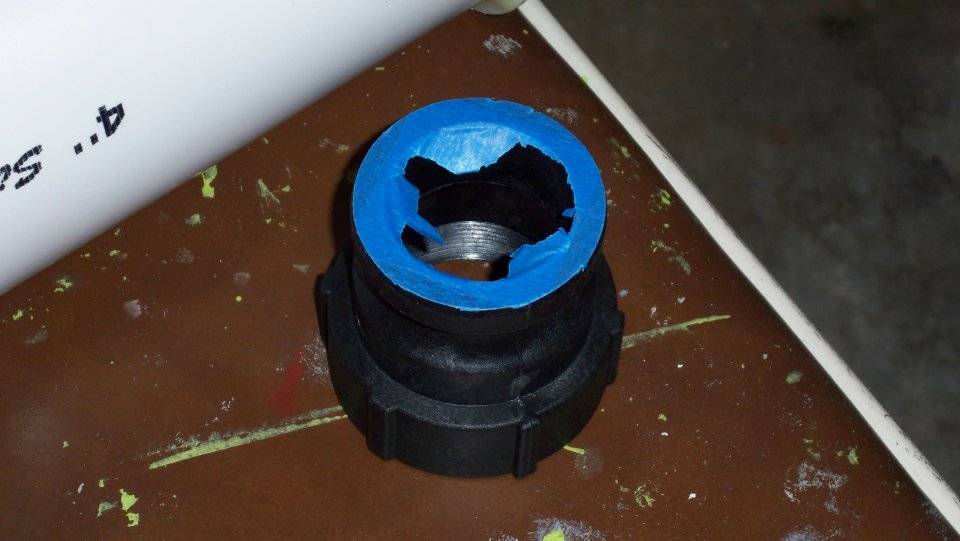

Nice clean burst.
Nice clean burst.
