It's something I welded myself, It's 1/8" stainless tubing and flat plate ends, the ends are slightly recessed so the weld holds them more captive. Rating? not sure, but it will have a safety relief blow off valve.
I am typically atypical

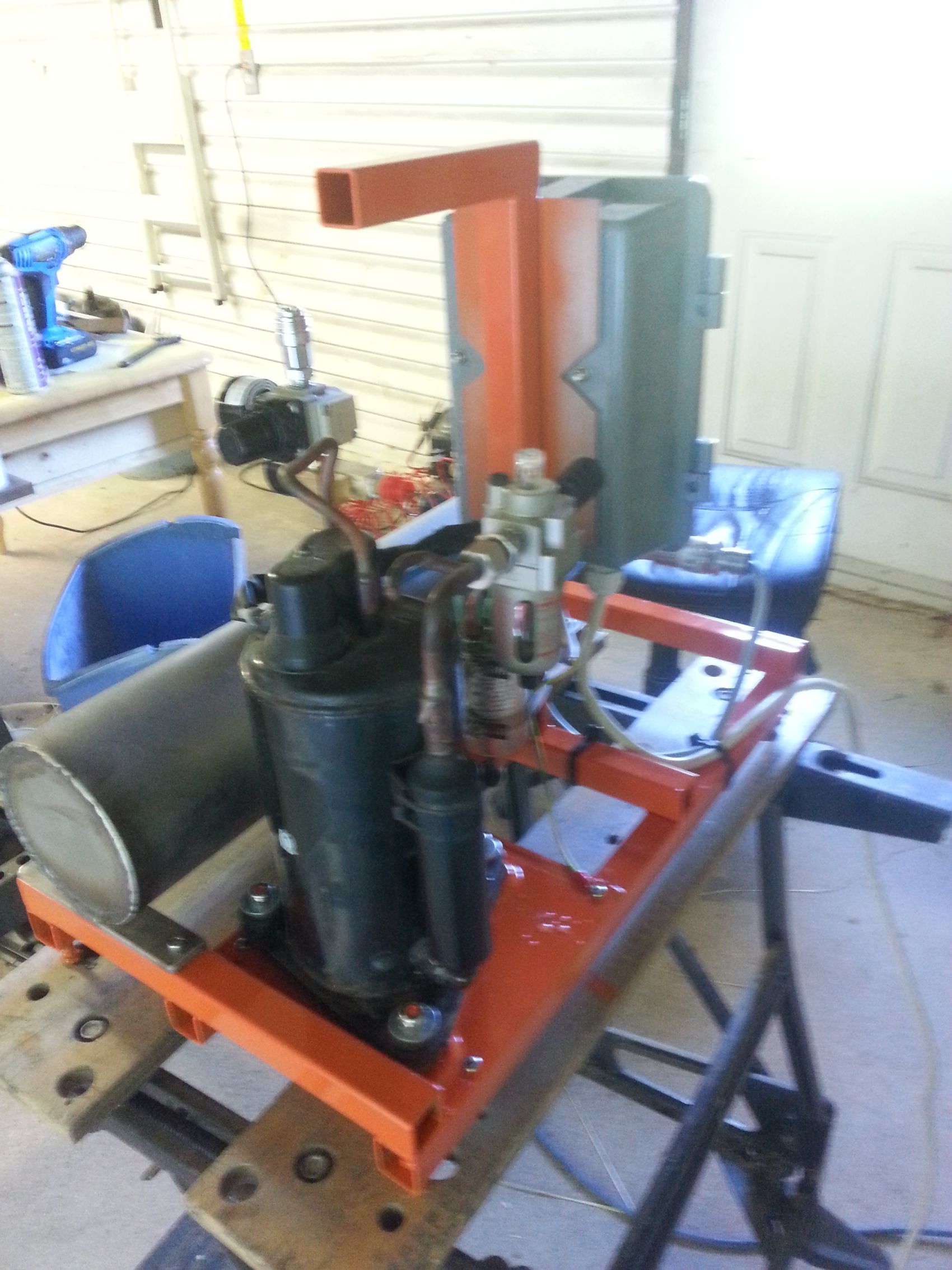

My AC compressor
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
I've been using it at 125psi for a few years
-
- Sergeant
- Posts: 1064
- Joined: Sat May 07, 2016 3:49 pm
- Location: Argentina
- Has thanked: 273 times
- Been thanked: 276 times
- Contact:
Hydraulic pressure test, without any doubt.farcticox1 wrote:It's something I welded myself, It's 1/8" stainless tubing and flat plate ends, the ends are slightly recessed so the weld holds them more captive. Rating? not sure, but it will have a safety relief blow off valve.
I am typically atypical
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

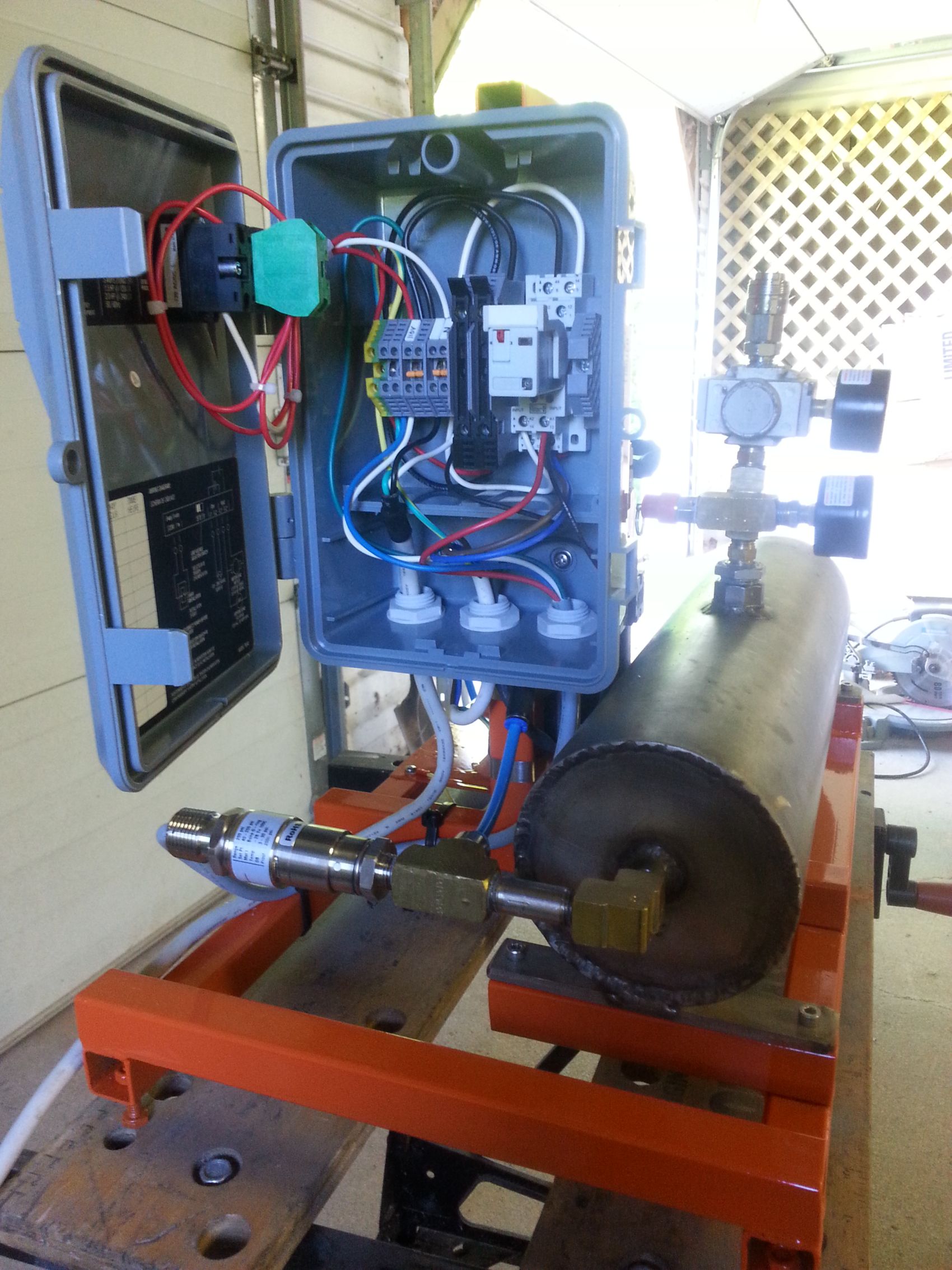

Compressor up and running, giving a steady 135psi output, that's the maximum the regulator will output.
Last edited by farcticox1 on Sun Jul 09, 2017 8:25 am, edited 1 time in total.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

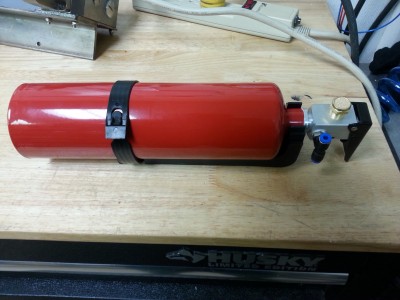

Got a nice little fire extinguisher to add as an extra tank on the low pressure side, so basically an extension of the gun chamber.
-
- Specialist 2
- Posts: 222
- Joined: Wed Apr 12, 2017 5:30 am
Very nice.
Are you going to paint it?
Are you going to paint it?
-
- Sergeant
- Posts: 1064
- Joined: Sat May 07, 2016 3:49 pm
- Location: Argentina
- Has thanked: 273 times
- Been thanked: 276 times
- Contact:
Interesting to use something like what you got for low pressure air tank for air launcher in my weapons. Now that I see it, I remember that my friend has a couple of these in disuse ...
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
And it's rated at 300 psi
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

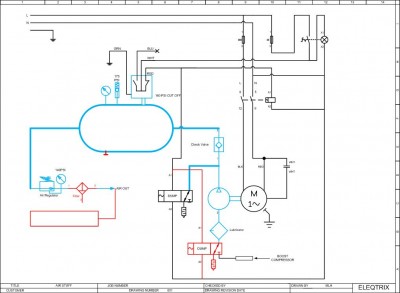

Got all the parts to do the mods to the compressor, dump valve for the suction side, filter for the out let and accumulator for the low pressure side. This is the new layout.
