If it leaks over the rating, take the compression fitting off and put epoxy all over the joint before reassembling. If it leaks under the rating, take it back.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna" ■ M16 BBMG ■ Pengun ■ Hammer Valve Airsoft Sniper ■ High Pressure .22 Coax
Holy Shat!
-
- First Sergeant 3
- Posts: 2400
- Joined: Wed Oct 18, 2006 11:12 pm
- Has thanked: 2 times
- Been thanked: 10 times
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras nec placerat erat. Vivamus dapibus egestas nunc, at eleifend neque. Suspendisse potenti. Sed dictum lacus eu nisl pretium vehicula. Ut faucibus hendrerit nisi. Integer ultricies orci eu ultrices malesuada. Fusce id mauris risus. Suspendisse finibus ligula et nisl rutrum efficitur. Vestibulum posuere erat pellentesque ornare venenatis. Integer commodo fermentum tortor in pharetra. Proin scelerisque consectetur posuere. Vestibulum molestie augue ac nibh feugiat scelerisque. Sed aliquet a nunc in mattis.
Last edited by SpudBlaster15 on Wed Jul 14, 2021 8:28 pm, edited 1 time in total.
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:
Found this little video about a hammer valve
I understand how it works, but will that inner piston really work? For a hammer valve I think that piston is unnecessary and will only diminish the flow, but still a interesting concept, maybe helpful to make multi shots
What do you guys think?http://www.youtube.com/watch?v=MPyTlqXc ... re=related
I understand how it works, but will that inner piston really work? For a hammer valve I think that piston is unnecessary and will only diminish the flow, but still a interesting concept, maybe helpful to make multi shots
What do you guys think?http://www.youtube.com/watch?v=MPyTlqXc ... re=related
CpTn_lAw wrote: "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? "
- Brian the brain
- Moderator
- Posts: 3496
- Joined: Mon Dec 05, 2005 2:06 am
- Location: Holland
- Been thanked: 4 times
That's not just a hammervalve.
It's a regulator and hammervalve combination.
The piston closes off the airflow as the pressure overcomes the spring.
So it's a regulator...
It's a regulator and hammervalve combination.
The piston closes off the airflow as the pressure overcomes the spring.
So it's a regulator...
Gun Freak wrote:
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
Oh my friggin god stop being so awesome, that thing is pure kick ass. Most innovative and creative pneumatic that the files have ever come by!
Can't ask for a better compliment!!
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
how many ports does it have?
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
- Staff Sergeant 3
- Posts: 1769
- Joined: Mon Mar 21, 2011 5:41 pm

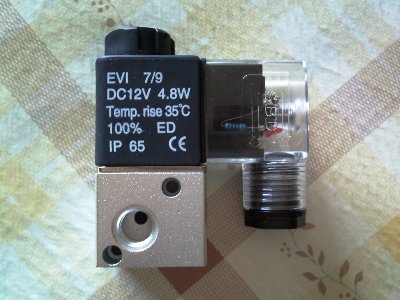

It looks like it has 3, I would say its a 3 way valve, but if you can't identify, there's only one other way to find out.
http://www.solenoidvalvesuk.com/solenoidsymbols.asp
Edit: I think is a Two position, three way, normally closed push button
operated valve with spring return.
Edit: I think is a Two position, three way, normally closed push button
operated valve with spring return.
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time

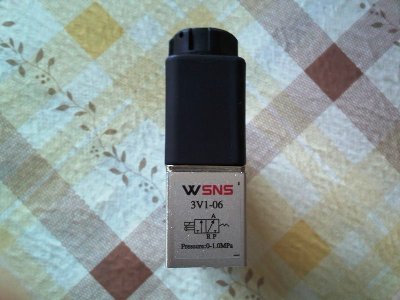

yup you're almost right...I think is a Two position, three way, normally closed push button
operated valve with spring return.
It is a 2 position, 3 way, normally closed solenoid valve with spring return (and a manual overide - I can't see a button or lever there but the symbol suggest that there is one somewhere (maybe the screw on top of acts as it)
@wyz
make sure it has 3 threaded ports
it is very likely that it has one of the ports on the top (under the cap) if that third port isn't threaded you can use it as an universal valve (one that can be used either as a NO and NC valve)
EDIT

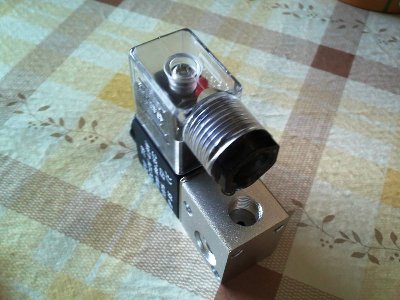

yup, it has its third port there >>
http://www.stcvalve.com/STC-DOWNLOAD/SOP-2V025.pdf
ohh and wyz put more pics of it and test it - I am acctualy considering getting a 2 way version of them and I found them for like 9$
Children are the future
unless we stop them now
unless we stop them now
- wyz2285
- First Sergeant 2
- Posts: 2385
- Joined: Sat Mar 06, 2010 7:50 am
- Location: Porto, Portugal
- Has thanked: 1 time
- Been thanked: 3 times
- Contact:
Yes!!! DAMN!!!!Does that little hole in the sides ports go right through ?
The air-tac ones do, which makes them useless.
I will have to tap one side and use it as a super lame solenoid valve
CpTn_lAw wrote: "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? "
- POLAND_SPUD
- Captain
- Posts: 5402
- Joined: Sat Oct 13, 2007 4:43 pm
- Been thanked: 1 time
uhmm what do you mean by that?? I assume it has something to do with the fact that they can be used in manifolds but I just want to be sure I get you rightDoes that little hole in the sides ports go right through
