Short question topic

A place for general potato gun questions and discussions.
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Fri Feb 03, 2012 3:05 pm

It means there is no way to "choose" the air flow, you can only open another way, so the air can go out in 2 ports, but one of them is always open :evil:
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Fri Feb 03, 2012 3:09 pm

It means there is no way to "choose" the air flow, you can only open another way, so the air can go out in 2 ports, but one of them is always open
Unscrew the cap on top of it and check if there is a port there
Children are the future

unless we stop them now
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Fri Feb 03, 2012 4:13 pm

check if there is a port there
Not exactlly a port... But it does leaks at there!!! :evil:
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Fri Feb 03, 2012 4:34 pm

Not exactlly a port... But it does leaks at there!!!
yeah... if you blow air into one of the ports air goes through that port/opening... once the valve is energized air will flow from the port that was previously closed to the one that was connected with the top one earlier... so don't worry everything is ok


are there any standard threads on the outside or inside that can be used ??


I have a bunch of similar valves (unfortunatelly all in 230V) and they are NC too...
some have and internal 5mm thread and I can used them as universal valves but the rest doesn't
(well apart from standard metric outside threads that are used with a nut to keep the solenoid in place... I'd need a female metric to bsp coupling or make one myself to use them as NO valves)
Children are the future

unless we stop them now
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Fri Feb 03, 2012 5:21 pm

yeah... if you blow air into one of the ports air goes through that port/opening... once the valve is energized air will flow from the port that was previously closed to the one that was connected with the top one earlier... so don't worry everything is ok
No I have opened te valve... It´s not a port. What a useless valve !! :evil: :evil:
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Sat Feb 04, 2012 2:55 am

well it isn't useless... you've simply got a valve that can't be used as a universal valve - that's all

it can still be useful for spudding don't worry

ohh and it's not unusual that there are two ports that are connected toghether - thx to that you can stack them toghether in a sort of manifold
Children are the future

unless we stop them now
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Sat Feb 04, 2012 6:37 am

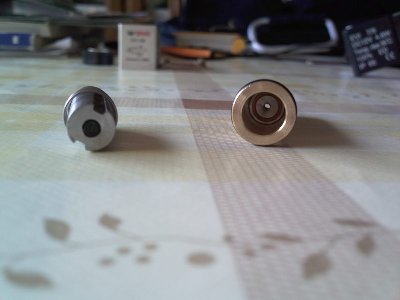

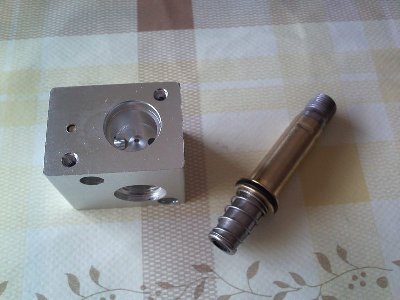

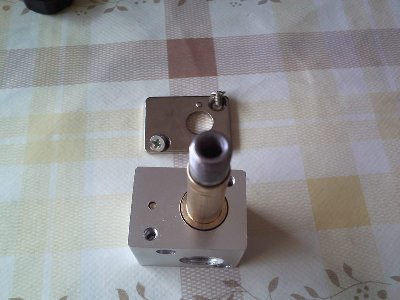

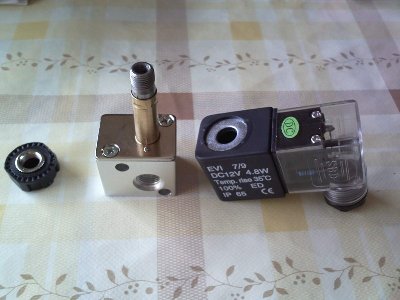

Here are more pics about the internal... I will post a diagram if you don´t get how it works (and fails) :evil:
Attachments
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Sat Feb 04, 2012 7:42 am

thx

but hey it doesn't fail - it does exactly what it should -> it's a NC valve - that's all
Children are the future

unless we stop them now
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Sat Feb 04, 2012 1:40 pm

What is a NC valve? Can it does something useful like pilot a 1/4 QEV?
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
Gun Freak
Lieutenant 5
Lieutenant 5
Posts: 4971
Joined: Mon Jan 25, 2010 4:38 pm
Location: Florida
Been thanked: 8 times

Sat Feb 04, 2012 6:58 pm

Normally closed, and yes.
OG Anti-Hybrid
One man's trash is a true Spudder's treasure!
Golf Ball Cannon "Superna"M16 BBMGPengunHammer Valve Airsoft SniperHigh Pressure .22 Coax
Holy Shat!
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Mon Feb 06, 2012 2:48 pm

It´s not a normally closed valve, it leaks from the top normally if charged from the front port. When powered, air comes out from the side ports(both of them as they are connected). I could tap the top and use it as a superb lame solenoid valve with less than 1mm D orifice :evil:
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
wyz2285
First Sergeant 2
First Sergeant 2
Austria
Posts: 2385
Joined: Sat Mar 06, 2010 7:50 am
Location: Porto, Portugal
Has thanked: 1 time
Been thanked: 3 times
Contact:

Tue Feb 07, 2012 5:23 pm

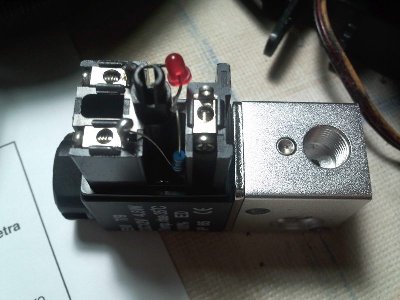

Here is the connection, anybody know how I can put this to work?
And I´m hoping this valve can be used as the following diagram, is that possible?
Attachments
CpTn_lAw wrote: :D "yay, me wanna make big multishot pnoob with 1000 psi foot pump compressor using diamond as main material. Do you think wet bread make good sealant? " :D
User avatar
POLAND_SPUD
Captain
Captain
Posts: 5402
Joined: Sat Oct 13, 2007 4:43 pm
Been thanked: 1 time

Tue Feb 07, 2012 6:30 pm

It´s not a normally closed valve, it leaks from the top normally if charged from the front port. When powered, air comes out from the side ports(both of them as they are connected). I could tap the top and use it as a superb lame solenoid valve with less than 1mm D orifice
ImageYour side ports are P (pressure source - normally closed)
and the front port is A (exhaust - normally open to the exhaust)
I´m hoping this valve can be used as the following diagram, is that possible?
that's almost exactly what your valve looks internally - the only question is.... is the third (top port) threaded?
Here is the connection, anybody know how I can put this to work?
Just attach wires to the connectors - check if there are any clues as to polarity of each...
if there are none check the polarity of the LED and attach the wires accordingly
Children are the future

unless we stop them now
Proxywars
Specialist
Specialist
Posts: 147
Joined: Mon Jan 09, 2012 11:12 am

Tue Feb 07, 2012 8:32 pm

How can I make or use as a pump or compressor?
User avatar
dewey-1
Sergeant 3
Sergeant 3
Posts: 1298
Joined: Wed Mar 28, 2007 10:24 am
Location: NE Wisconsin USA

Tue Feb 07, 2012 8:40 pm

Here is typical wiring for 43650 DIN connectors:

pin 1 is DC positive
pin 2 is DC negative
pin 3 is earth/chassis ground

http://www.majordin43650.com/rha11c.html
Post Reply
