Semi-auto valve for under $20

AircannonSweden · Tue Jul 17, 2012 3:18 pm

Thanks JSR

i maybe will buy it

jackssmirkingrevenge · Tue Jul 17, 2012 3:22 pm

Careful though, the orifice is probably very small - so for anything over 4.5mm you'll want to use this is a pilot valve for a QEV or piston valve rather than a main valve.

AircannonSweden · Tue Jul 17, 2012 3:56 pm

Okey :/ i are building on a QEV gun right now so i probely wait to buy that electric valve...the only thing missing on the QEV gun right now is a airtank but i will go to Swedol( http://www.swedol.se/en/ ) this week and buy a bulkhead to the tank so i can be finished with it so i can put it up on spudfiles

dewey-1 · Sun Sep 02, 2012 4:35 pm

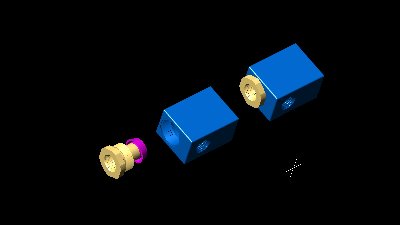

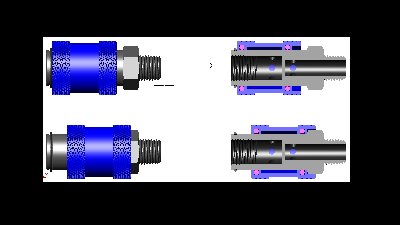

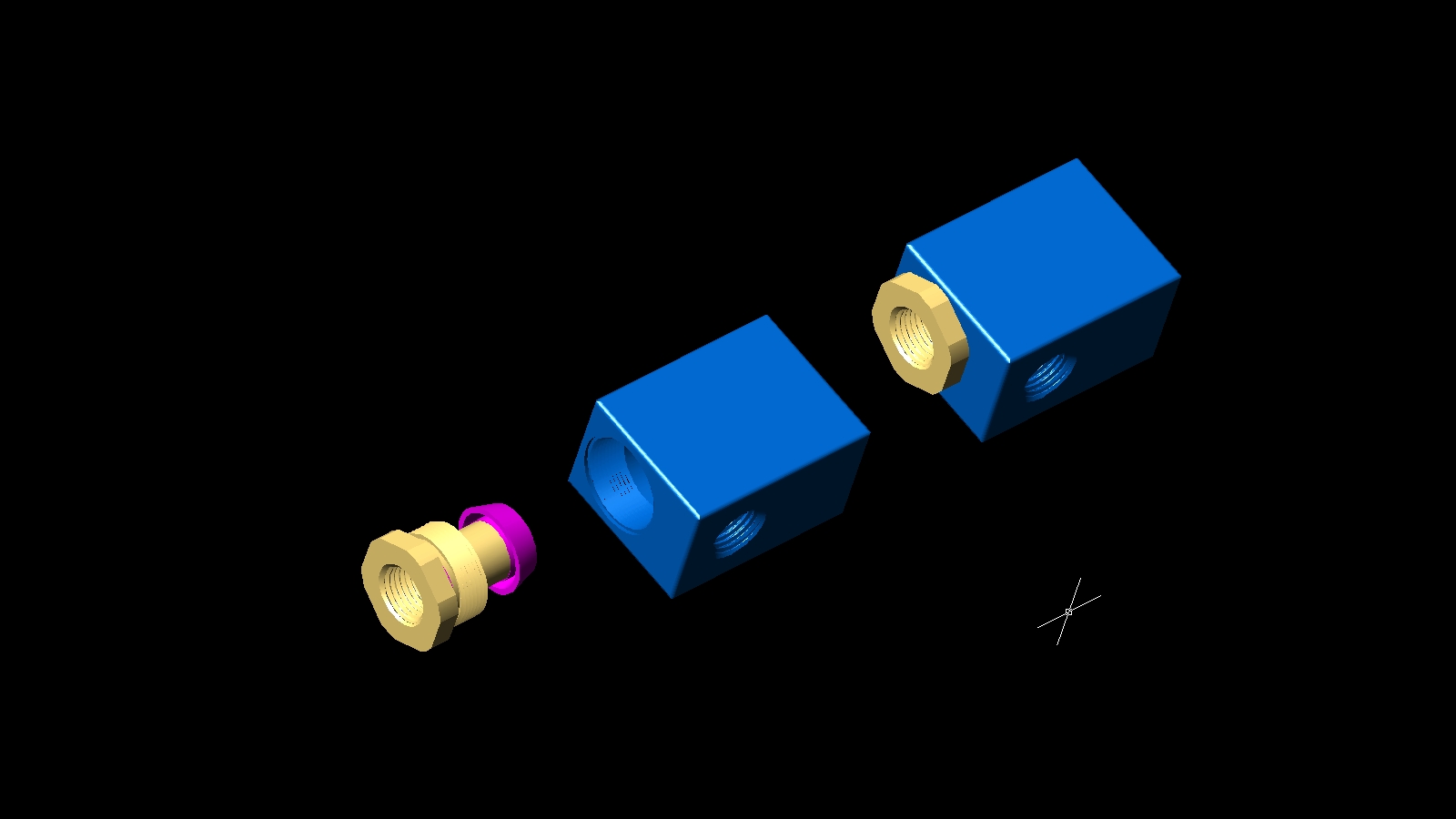

Here is CAD rendering for QE-02 and slide valve.
If any one one wants .sat file please PM me.

jackssmirkingrevenge · Sun Sep 02, 2012 4:39 pm

Brilliant dewey, cheers

dewey-1 · Sun Sep 02, 2012 4:42 pm

Thanks JSR.
I added the slide valve while you were posting.

jackssmirkingrevenge · Sun Sep 02, 2012 4:45 pm

So I see, that I can take a bit of credit for

dewey-1 · Sun Sep 02, 2012 4:52 pm

You can have all the credit except for the threads and knurling!

jackssmirkingrevenge · Mon Sep 03, 2012 3:09 am

*bows*

Added them to the first page. Can you do section views? I tried in SW but it's a uniform grey colour...

iknowmy3tables · Mon Sep 03, 2012 4:03 am

just wondering since this slide vlave comes with bsp threads could I cut bsp threads with an NPT tap/die to make them fit structurally fit npt

jackssmirkingrevenge · Mon Sep 03, 2012 4:12 am

1/4 BSP is 19 TPI, 1/4 NPT is 18 TPI, so it sounds doable, but I couldn't trust the joint unless it was also secured with an appropriate adhesive.

dewey-1 · Mon Sep 03, 2012 7:39 am

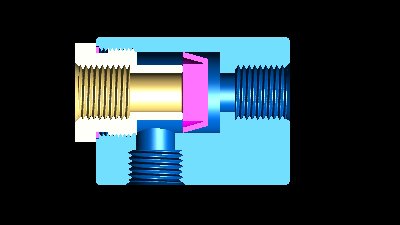

jackssmirkingrevenge wrote: Can you do section views? I tried in SW but it's a uniform grey colour...

Done!
I can not believe you can not do colors with SW.
There must be a way to do that.

jackssmirkingrevenge · Mon Sep 03, 2012 8:13 am

Cheers! first page updated

When I open the .sat file in SW I cannot differenciate between individual components...

shiny455 · Thu Sep 13, 2012 6:17 am

i was finally happy with a design then i had to come along and read this to find out all i have to do is turn the slide valve around for semi auto

now i just gotta find a way to have a reservoir connected to the back of the gun, a chamber and it still look good.

AircannonSweden · Thu Sep 27, 2012 3:47 pm

Is it hard to pull back the slide-valve when you have preassure "in it"?
