Hey everyone i have recently started to build my first pneumatic spud gun as i have only ever built propane ones before. I purchased a solenoid sprinkler valve and have epoxied the solenoid cavity and attached a blow gun with a brass nipple as a guide on you tube suggested. The problem i have is that air still flows out of the barrel not quickly but at a noticeable pace also the blow gun does not increase the air flow when triggered. i was reading so threads about how a bigger equalizing hole would help but i don't think mine even has one. what should i do should i poke a pin through the diaphragm? to crate one?
Thanks Mason
Help QEV Sprinkler valve trouble
-
jackssmirkingrevenge
- Five Star General
- Posts: 26204
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 572 times
- Been thanked: 345 times
Photos of your setup?
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
jackssmirkingrevenge
- Five Star General
- Posts: 26204
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 572 times
- Been thanked: 345 times
what model sprinkler valve?

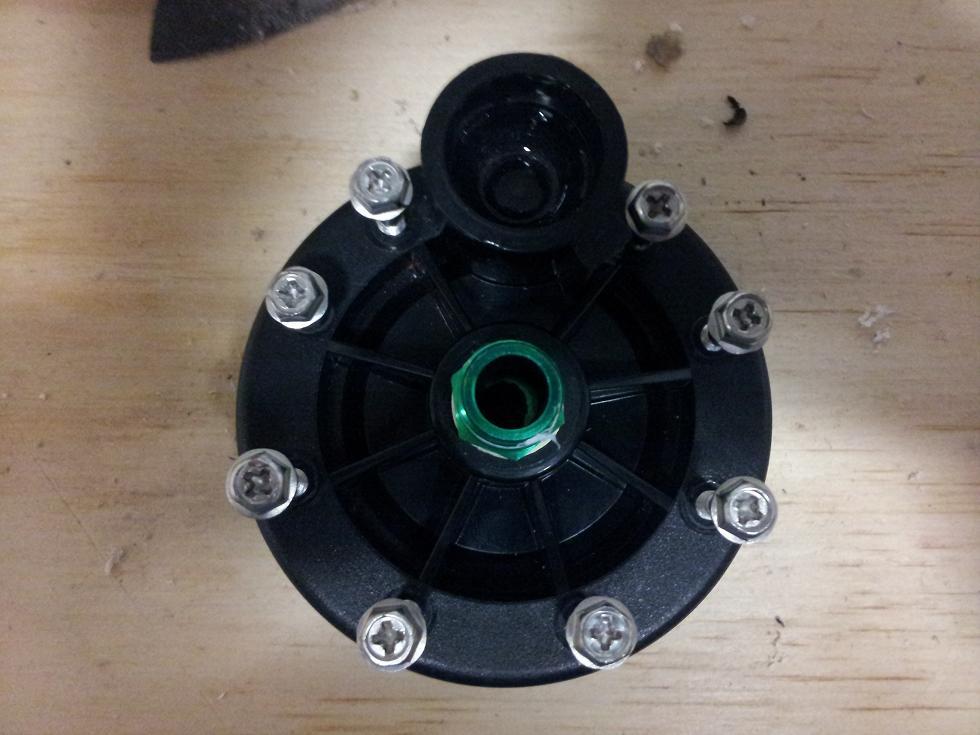

can you take pictures of how and where you installed the brass nipple?
It's hard to give advice without looking at the thing.
can you take pictures of how and where you installed the brass nipple?
It's hard to give advice without looking at the thing.
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
jackssmirkingrevenge
- Five Star General
- Posts: 26204
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 572 times
- Been thanked: 345 times
You seem to have done everything right, my feeling is that you are not filling the chamber fast enough. Are you sure there was no dirt on the diaphragm when you put it back together?
- Attachments
-
-
hectmarr wrote:You have to make many weapons, because this field is long and short life

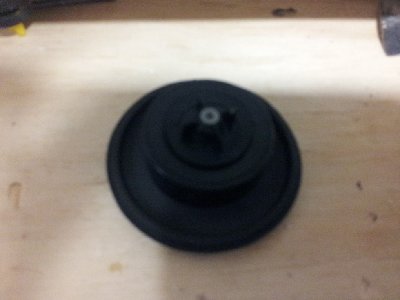

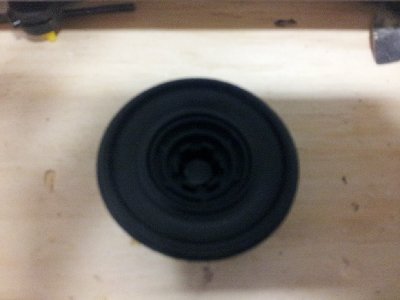

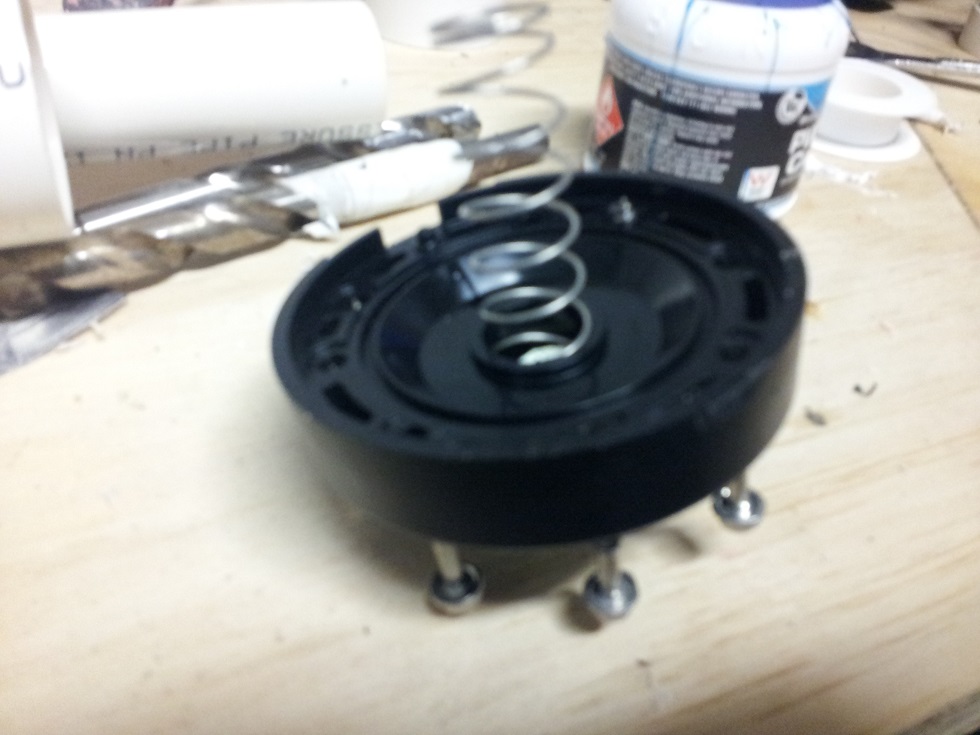

Also need pictures of spring location and diaphragm which may help.
What brand and model is the sprinkler valve?
What brand and model is the sprinkler valve?
-
jackssmirkingrevenge
- Five Star General
- Posts: 26204
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 572 times
- Been thanked: 345 times

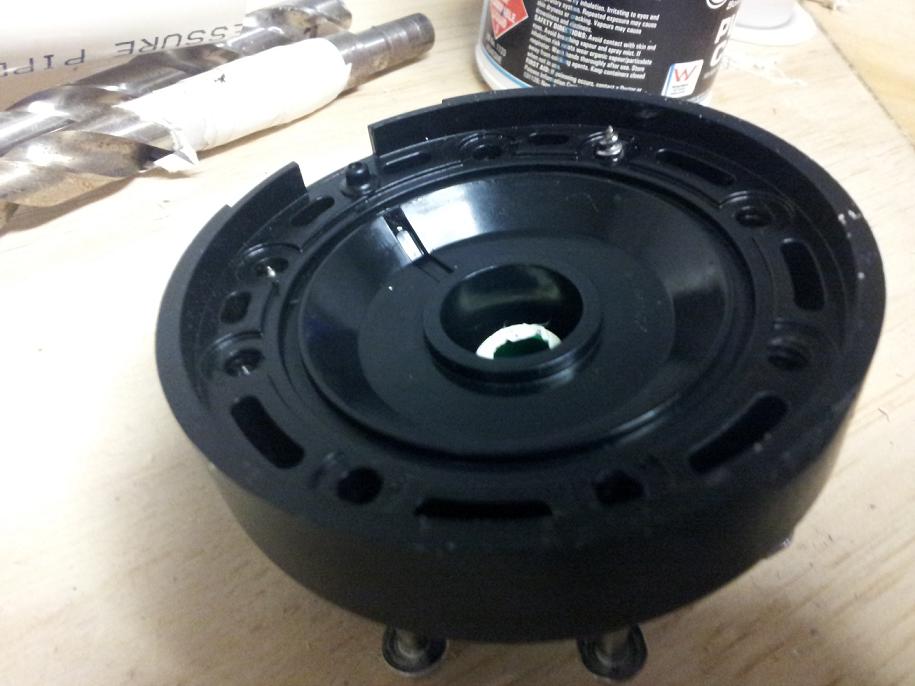

here you go
- Attachments
-
-
-
hectmarr wrote:You have to make many weapons, because this field is long and short life
I'm using a compreser and I have tryed a hand pump. If I think I know how these work, shouldnt the area above the diaphragm be the same pressure as the air tank? If so I don't think its happening in this valve is the diaphragm is completely air tight. Even when I block the barrel side and open the blow gun no air comes out. Could it be that with no air going in above the diaphragm that it is a lower pressure there already and the diapgram moves slightly up allowing small air flow??
What brand and model?
Is there a hole in the center of the diaphragm with a screen in it?
Is there a hole in the center of the diaphragm with a screen in it?
Yes, drill out that epoxy with about a 2.0mm drill,
You need an equalization hole.
You need an equalization hole.
Hey everyone sorry to bump the thead but i kinda have it working. I drilled out the epoxy and it works well at 30-35 psi i have a resonbly small tank just the stock. I have pressued it to 120 psi however the valve does not fire correctly. It kinda just vibrates and makes a honk noise and the projectile will just fall out the end of the barrel.any ideas on how to fix? Is the equalization hole to big its 1mm atm
