fridge compressor help needed

[Crna Legija]

i just check the cable in the red its has 4 wires in it black blue green/yellow and purple

i put black blue to gethere nothing happend
blue and purple and my house circuit breaker cut out

the blue is hot and black is nutale i dont know what to do with the earth or purple

[POLAND_SPUD]

lol so there were 4 wires

black blue green/yellow and purple

green&yellow is almost always ground

the blue is hot and black is nutale i dont know what to do with the earth or purple

I assume that you did it the other way round..

blue and purple and my house circuit breaker cut out

this suggest that blue & purple are hot and neutral... you shouldn't connect them as that shorts the circuit

most likely you've got to connect purple to black...

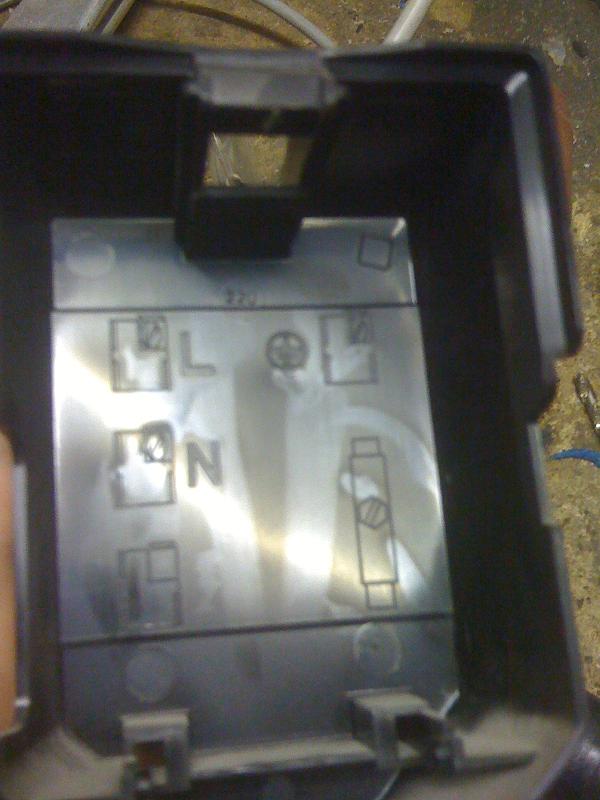

though, you should remove the plastic cover and find out for yourself to be sure... you should find there something similar to what MrCrowley found on his

once you check that and you can tell for sure which wires you should join you should know what to do...

tryiong to draw a diagram as dewey suggested also would be a good idea

[Crna Legija]

ffs my net crashed 3 times trying to post this

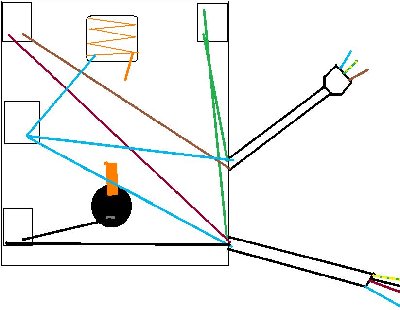

i took new pics and made a diagram

on the top is says
5.5k11 google tells me thats the relay
220 dont know about same as 87338

[POLAND_SPUD]

that's what I thought...
blue is probably NEUTRAL
brown/red is HOT
green/yellow is GROUND

you've got to put an on/off switch between RED and BLACK wire in that cable
once the two are connected the circuit is closed and the compressor should start

also you can also use BLUE and RED from that cable to power a fan if you want to... though keep in mind that 220V AC so you need a fan like that too
if you don't need it now just make sure the other wires are insulated (so they don't touch each other)


if it doesn't work then either something is wrong with the wiring (not likely) or one of the relays is broken or the compressor itself is broken

EDIT

[Crna Legija]

ok thanks ill give it a shot tomornig my dad cracked the shits at me when the breaker cut out

how can i make a comprestion fitting on a pipe like 3mm in dia do i just crush something in between 2 fittings like a end cap with hole in it and a 1/2 inch tee what the best stuff to squish

[POLAND_SPUD]

my dad cracked the shits at me when the breaker cut out

heh heh I knew it...
joining the red and blue wire together (hot and neutral) is the same as if you put both ends of a hair clip or both ends of a bent wire or nail right into the socket

heh but don't worry... you're not the first.. I have done it too
lol just another example showing that it can be dangerous

[Crna Legija]

there is no red wire the red one is brown i have some electrical experience but its mostly in PLC

[POLAND_SPUD]

yeah, it's brown-redish... uhmm ok, it's brown

PLC

then kudozz... I can understand only the most basic circuits...

[dewey-1]

i took new pics and made a diagram

on the top is says
5.5k11 google tells me thats the relay
220 dont know about same as 87338

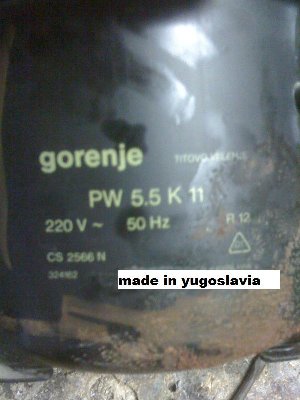

The compressor is a gorenje model PW 5.5K11 running on 220vac 50hz and had R12 as the Freon type.

I do not see a start/run cap anywhere? Where is it?

Do you know what brand the refrigerator was?

My best guess would be to connect the violet to black of the 4 conductor cable. This would act like the thermostat switch.

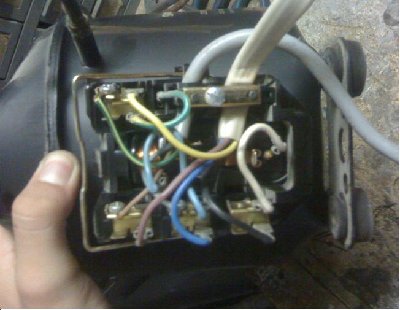

Can you get a better picture of the "box" wiring? Better focus or better camera.

The 3-conductor grey cable was the original power plug correct?

My best guess is to connect the black and violet together. This would simulate the thermostat switch. You could use a switch between those wires for On-Off control.

[Crna Legija]

awwwww yeah i got it to work it was the purple and brown wire il get pics up when i put the swich and a nice box for it.

i got 1/2 inch compression fitting and just layered hose on the pipe till it fit tight and i cant pull it off with the fridge camped down and winch the to the compression fitting, snapped 600 pound rope before the fitting moved

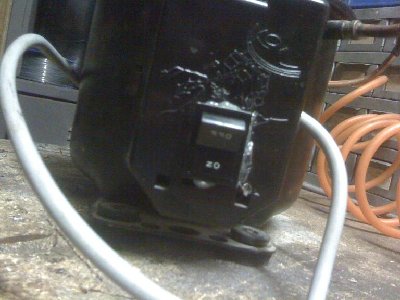

start/run cap is the copper thing in the pic img_0058 its behind the wire
thanks for all the help guys really really appreciate it.

edit: is a 240v 15 amp swich good for this or will it blow out

[POLAND_SPUD]

is a 240v 15 amp switch good for this or will it blow out

sure...

was the purple and brown wire

hmm I can't even find them in the diagram... are you sure about it, I'd say it's almost certain that you had to connect the red/brown wire to black one ??

[Crna Legija]

yea its is purple/brown to the black my mistake

and holy crap it has low flow took like 7 min to fill 1l FE to 90 psi.
i put 90psi in the input it zoomed to 180 in 5 sec i need a 350+ gage ill look at a welding shop for it

i blow up coke bottles today well three 2l bottles they pop at 140-150

1.25l ones blow at 160-165, ill get some 500ml ones tomoz


i need a fan for it too got hot in 7min solid run, ill try make a alu heat sink, would it work if i make a bunch of U shaped bits and bolt it to a round plate bent to fit the compressor and is perforated aluminum sheet good for it or only flat sheet.

[POLAND_SPUD]

and holy crap it has low flow took like 7 min to fill 1l FE to 90 psi

you must have some leaks then... normally it's almost 10 times that

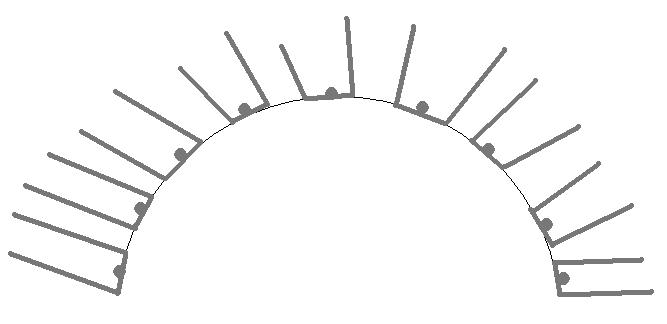

heat sink.jpg

heh I tested something like that...
somehow it didn't help much, probably becasue I glued them to the casing

[Crna Legija]

yer i do have leaks but when i kink the hose it go to 180 super fast but the hose in 1mm id fan out of PTFE ill fix it tomorrow, surprisingly lock tight didn't work.

i was thinking of using magnets like magnet heat sink steal case of fridge
i have 4 neodymium magnets that let go at 300g each, would they fuk with the motor?

dam gages cost lots

side note: WHERE THE F@#K IS MY QEV i ordered it 2 weeks ago ill call up in the mornig

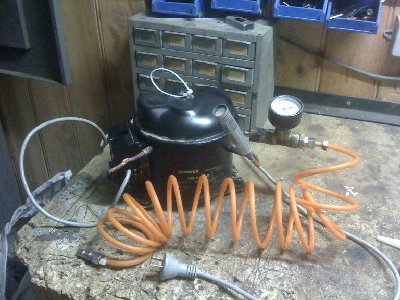

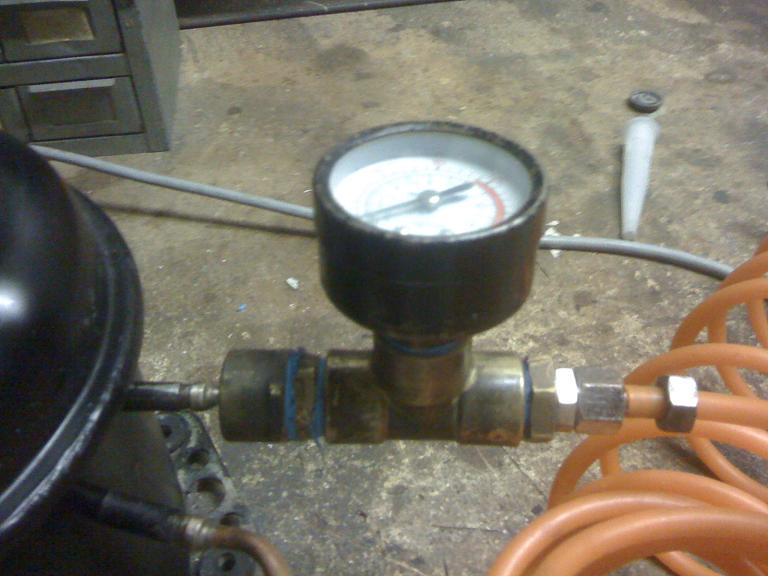

edit: added switch and put a gage and hose tho i need a 350+ gage im going to get one soon.
i filled my gun to 180 and it exploded my cpvc barrel and scared the shit out of me i put a nice 25mm id chrome steel barrel on it. and it a lot louder at 180 than 120
