Question: Modding a sprinkler valve
-
frankrede
- Sergeant Major 2
- Posts: 3220
- Joined: Thu Jul 20, 2006 9:47 pm
- Has thanked: 1 time
- Been thanked: 1 time
Instead of drilling a hole in the sprinkler valve could you get a hose adapter that can thread in where solenoid went? Because I have a U shaped sprinkler valve which I cant drill becaue of thingies in the way. How Blunt.
- Attachments
-
- This is the hose adapther which will lead to a blowgun.
- 048643069787md.jpg (2.3 KiB) Viewed 5976 times
-
- This is the valve.
- das_asvf.jpg (6.09 KiB) Viewed 5976 times
-

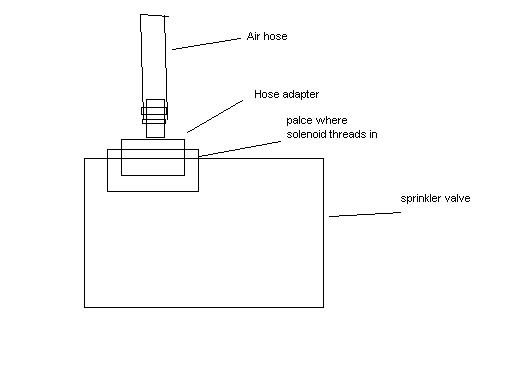

- Sorry its a very bad drawing. Giant box is the sprinkler valve
- draft schem.JPG (11.55 KiB) Viewed 5976 times
-
carlbelcher
- Corporal
- Posts: 532
- Joined: Mon Jun 12, 2006 6:54 pm
No, that wouldn't work you obviously don't understand how sprinkler valve modification works.
Is your Google.com Broken?!
-
chosen_way
- Specialist
- Posts: 106
- Joined: Sun Jul 02, 2006 4:31 am
well then maybe you could enlighten him and me carlbelcher, instead of just saying it wont work, most normal people would post why it wouldnt work aswell.
-
killagorrila99
- Sergeant 2
- Posts: 1100
- Joined: Tue Jul 25, 2006 2:35 am
- Location: Australia.
u could try using the how to on no drill valve modification its near the top
"I'm sorry, Mr.Bush cant come to the phone right now, He's playing cleudo with Mr. Cheney And he has him in the Cupboard with a broom stick" -White house receptionist.
-
carlbelcher
- Corporal
- Posts: 532
- Joined: Mon Jun 12, 2006 6:54 pm
well then maybe you could enlighten him and me carlbelcher, instead of just saying it wont work, most normal people would post why it wouldnt work aswell.
Don't get an attitude with me, noob!
(removed unneccary comment)
Here you go:
It won't work because when you modify a sprinkler valve you enlarge the pilot hole behind the diaphragm, in doing so you are able to vent the pilot pressure from behind the diaphragm faster which allows the valve to open faster. If you modify it this way (by replacing the solenoid) you will still be using the same size pilot hole, the solenoid isn't the weak link it's the pilot hole size. so this idea won't work because your not increasing the flow of air from the pilot your just replacing the solenoid with a blow gun (or valve).
EDIT:
Sorry, I was pissed off.
Last edited by carlbelcher on Sat Aug 05, 2006 10:21 pm, edited 2 times in total.
Is your Google.com Broken?!
-
frankrede
- Sergeant Major 2
- Posts: 3220
- Joined: Thu Jul 20, 2006 9:47 pm
- Has thanked: 1 time
- Been thanked: 1 time
Okay. So it would work(sort of) so i wouldnt need my electronic control box anymore. Thanks for the help. I now understand it better now.carlbelcher wrote:well then maybe you could enlighten him and me carlbelcher, instead of just saying it wont work, most normal people would post why it wouldnt work aswell.
Don't get an attitude with me, noob!
I didn't feel like wasting my time to tell you something that anyone with half a brain should be able to figure out by looking around the site and god forbid SEARCHING!
But since you damn noobs can't find anything out on your own!
Here you go:
It won't work because when you modify a sprinkler valve you enlarge the pilot hole behind the diaphragm, in doing so you are able to vent the pilot pressure from behind the diaphragm faster which allows the valve to open faster. If you modify it this way (by replacing the solenoid) you will still be using the same size pilot hole, the solenoid isn't the weak link it's the pilot hole size. so this idea won't work because your not increasing the flow of air from the pilot your just replacing the solenoid with a blow gun (or valve).
Thanks man.
-
frankrede
- Sergeant Major 2
- Posts: 3220
- Joined: Thu Jul 20, 2006 9:47 pm
- Has thanked: 1 time
- Been thanked: 1 time
I would drill a hole but like i said." There is no room for me to drill it out.WOW!! wrote:It would work a little better, but you would be better off drilling a hole in the center and doing it that way. You could try it.
-
BoomerGer
- Private
- Posts: 14
- Joined: Fri Jul 14, 2006 9:42 pm
- Location: Blackboard Jungles of Southern California
If CarlBelchfart had talked to me that way, I would have to him to fuck off, noob or not. Seems like some of these people on this forum think they are Jesus Christ Superstar and can talk to you any way they want.
BOOMERGER said it.....(I'll make sure to fart on YOU!)
BOOMERGER said it.....(I'll make sure to fart on YOU!)
Hells Bells, I have a .45 Glock, why do I even need to see how this crapola is made...because it's FUN!!
-
frankrede
- Sergeant Major 2
- Posts: 3220
- Joined: Thu Jul 20, 2006 9:47 pm
- Has thanked: 1 time
- Been thanked: 1 time
Ok so I modified the valve by removing the flow control valve and drilling a hole big enough for an air gun.
The gun has so much more power than before.(1 1/2 barrel) I fired it twice so far at 130 psi. The first time with a steel slug. It broke my brick wall! Second time I shot water. The recoil was so much more than before the mod. It tore my hand open pretty bad.The hook on the air tool caught my hand after i shot nearly taking my fingers with it.
The gun has so much more power than before.(1 1/2 barrel) I fired it twice so far at 130 psi. The first time with a steel slug. It broke my brick wall! Second time I shot water. The recoil was so much more than before the mod. It tore my hand open pretty bad.The hook on the air tool caught my hand after i shot nearly taking my fingers with it.
