hybrid cartridge protoype without burst disk

[jackssmirkingrevenge]

"Kurdish" as they say at Patator

Good ol' French casual racism

Can I say duck tape?

No no no!

And if I tell you I'm shopping for some green laser...

Very old hat, what you want is something like this

[LeMaudit]

Very old hat, what you want is something like this

ohhhhhh.... how the hell did you guess that I had in mind this Predator three dots sight!! Amazing!

I want one!

(what!? yes darling...)

Green!!

[dewey-1]

LeMaudit; Here is a reasonably priced one that works great in the daylight.
I got one and some others on the forum have them as well. See Moonbogg's combustion pictures and video.

http://www.spudfiles.com/forums/viewtop ... tml#238507

I also have complete 3D CAD drawings for it!
See page 5 in Sketchup Sticky!


http://www.dealextreme.com/p/mystery-jg ... uded-13137

[LeMaudit]

Thanks dewey-1!

I'll definitely check those.

[Insomniac]

I have (had) a bike pump that had a presta attachment, since I own a bike that has presta tire valves. On the connection, there's one for schrader valves and one for presta. Does that design suffer from the adapter problem?

The bike pump I currently use has something like an adjustable detent that clamps onto either a presta or schrader valve, but it hasn't had any seal damage after being unattached and reattached a great many times.

No, they should be fine. It's only the screw-on adapters I've got, which require a tight O-ring to be pushed over the threads each time it's used.

[jackssmirkingrevenge]

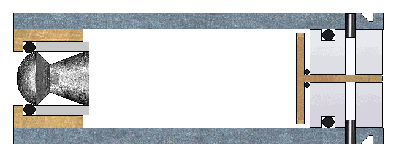

Having another go at this with a more precisely defined spark gap:

[jackssmirkingrevenge]

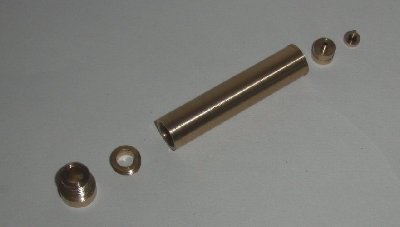

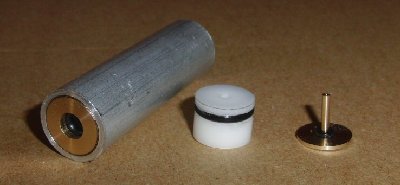

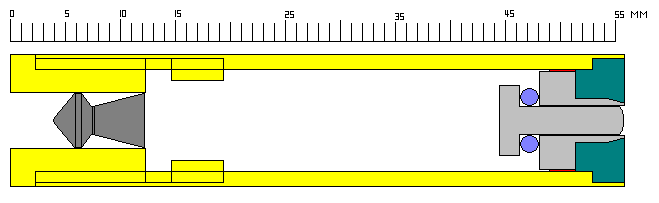

Another <s>blind stab at</s> work in progress on this idea following this discussion:

[jackssmirkingrevenge]

Some mixed results:

fill rig - win! - no leaks, cartridge held pressure beautifully. Still a bit fiddly but it can be refined.

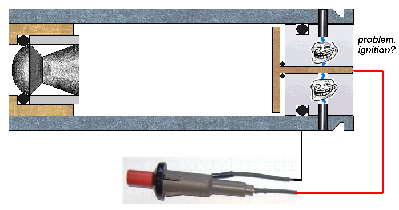

ignition - fail! - click click click... and I think I know why, might have missed an obvious short point with the retaining pins...

[POLAND_SPUD]

might have missed an obvious short point with the retaining pins

don't tell me there is a hole all the way through the plug...

if yes then FAIL

[warhead052]

Wow, its amazing how such simple mistakes are overlooked. Glad to hear the fill rig worked. Any pictures of it?

[jackssmirkingrevenge]

don't tell me there is a hole all the way through the plug...

if yes then FAIL

There has to be, otherwise you can't push the pins in far enough to free the plug... going to try with some delrin plugs, which will probably shear if I'm lucky enough to get it to work

Glad to hear the fill rig worked. Any pictures of it?

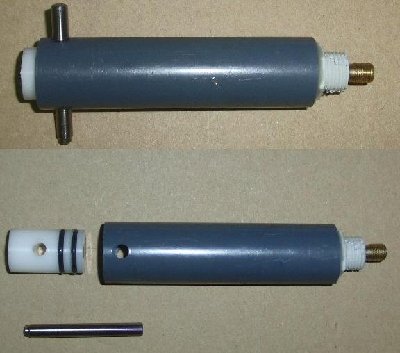

Here it is, closed and open. The schrader fitting is from my original fill rig, now permanently epoxied in place.

[Hotwired]

don't tell me there is a hole all the way through the plug...

if yes then FAIL

There has to be, otherwise you can't push the pins in far enough to free the plug... going to try with some delrin plugs, which will probably shear if I'm lucky enough to get it to work

I don't follow why you're using pins

If it needs to be flush then grub screws or even countersunk screws will be usable.

[jackssmirkingrevenge]

Linonophobia but you're right, and threading Delrin is a piece of cake anyway.

[jackssmirkingrevenge]

going to try with some delrin plugs, which will probably shear if I'm lucky enough to get it to work

One carefully calculated 10x mix later:

[youtube][/youtube]

HAHAHA!

YES!

*ahem*

Of course the delrin pins sheared as predicted and the end plug blew out, but on the plus side:

- the fill rig worked perfectly

- the detent sealed and held pressure, then released the projectile in spite of the end plug blowout.

Good result in my book now to refine it, I have some ideas to scribble.

[Hotwired]

GET SOME GRUB SCREWS
