Inline BBMG M249 SAW
So I was in need of a little more modern weapon for air soft considering I have a M1A1 Thompson and a Colt 1911 ( hey I like World War 2 weapons alot). So I decided to build a M259 Saw as a test project to see what I could do with a BBMG. The gun is a complete replica of the real thing aside from a few details that I was to lazy to put on. Its 41 inches long, and three inches wide at the receiver. I used a modified blow gun for the trigger with some brass compression fitting to channel the air to the vortex block which is a few inches away from the pistol grip. The barrel is made out of brass tubing which had the same inner diameter of a old air soft barrel. I made the stock, front grip and the pistol grip out of some scrap wood. I made the sights and receiver cover out of sheet metal, along with the mag. I have yet to test it with a regulated airflow from an air compressor, and after I get it to work I will get an HPA tank for some mobility. Oh, and this is my first BBMG.
- Attachments
-

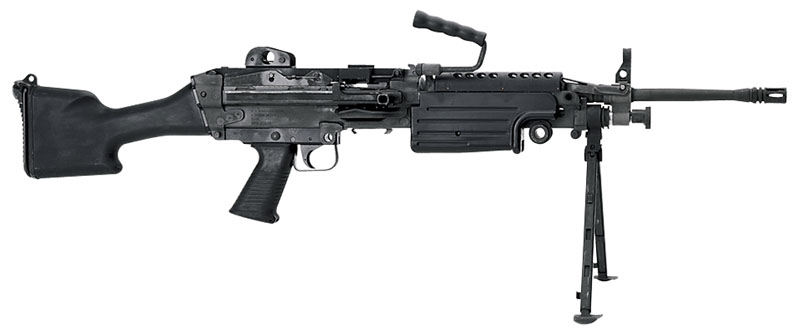

- This is not my version of it but I based my gun off of The MKII, I liked the stock and extended barrel.
- m249saw.jpg (24.31 KiB) Viewed 4283 times
Yeah I know, use the edit thing lol but I have more than one or two pictures to add. I have other pictures but i just edit them in later.
- Attachments
-
- A close up of the Vortex block
- P1010016.JPG (18.08 KiB) Viewed 4213 times
-

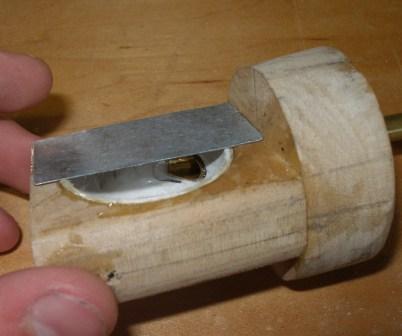

- The Vortex block With the brass barrel epoxied in, Its a 1" hole
- P1010014.JPG (9.74 KiB) Viewed 4213 times
-

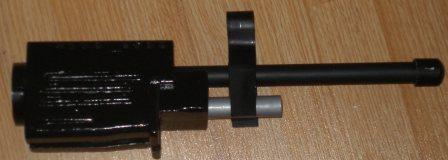

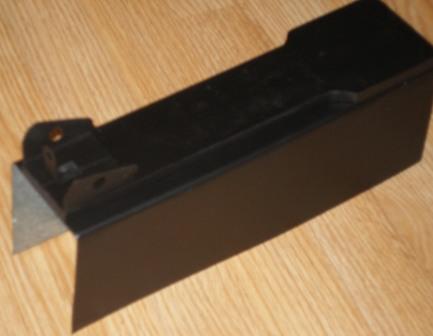

- Outer cover for the receiver, with rear sight
- P1010013.JPG (16.58 KiB) Viewed 4214 times
-

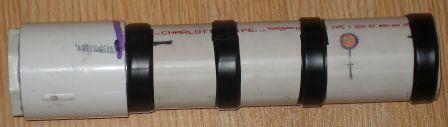

- The 2" PVC bb chamber
- P1010012.JPG (12.65 KiB) Viewed 4214 times
-

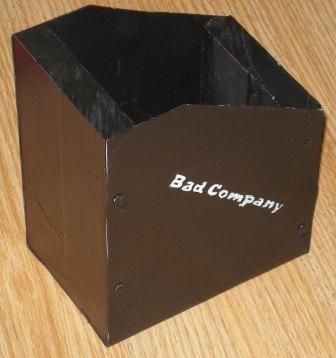

- The Mag
- P1010011.JPG (20.8 KiB) Viewed 4214 times
-

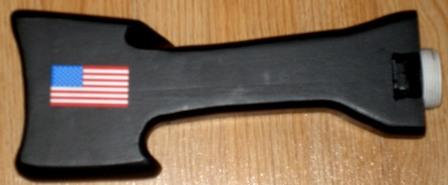

- Stock, had to put the American flag on it.
- P1010009.JPG (14.23 KiB) Viewed 4214 times
-
- Front Grip
- P1010010.JPG (15.98 KiB) Viewed 4214 times
-

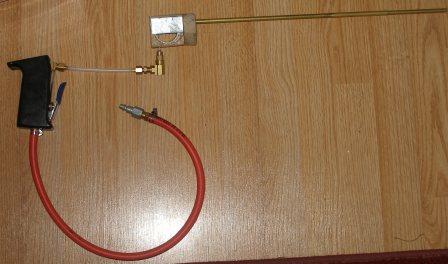

- The Pistol grip and the Air system in the gun.
- P1010017.JPG (25.3 KiB) Viewed 4207 times
- jackssmirkingrevenge
- Five Star General
- Posts: 26204
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 572 times
- Been thanked: 345 times
Interesting!
I based this one's outline on the M249 too: http://www.spudfiles.com/forums/vortex- ... -t166.html
never finished it aesthetically though.
Have you actually finished yours?
I based this one's outline on the M249 too: http://www.spudfiles.com/forums/vortex- ... -t166.html
never finished it aesthetically though.
Have you actually finished yours?
hectmarr wrote:You have to make many weapons, because this field is long and short life
Yeah i remember reading that thread when i was doing research. I just finished it today, hopefully i can put up pictures soon, and begin test firing.
- Attachments
-
- Yeah the mag is not in the right place at all.
- P1010021.JPG (25.69 KiB) Viewed 4165 times
-
- P1010021.JPG (25.69 KiB) Viewed 4165 times
-

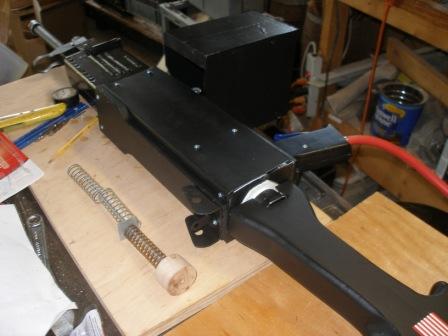

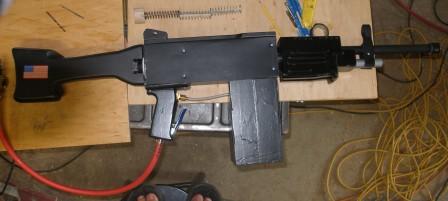

- Completed Gun, well almost the epoxy is drying.
- P1010020.JPG (18.06 KiB) Viewed 4165 times
-
- Specialist
- Posts: 100
- Joined: Tue Apr 10, 2012 6:33 pm
Wow that gun is nice!
Do you plan on using it in an airsoft war? Amazing job for your first gun (it is your first right?)
![Razz :P](./images/smilies/icon_razz.png)
Yep that is the intentional use , did some test firing earlier shoot pretty good, sorta gets a bird shot affect, and I think i need more epoxy on the air inlet due to me moving it to much. Also the plunger was to strong so i will have to work on that some more and its also a pain in the a$$ to load.
