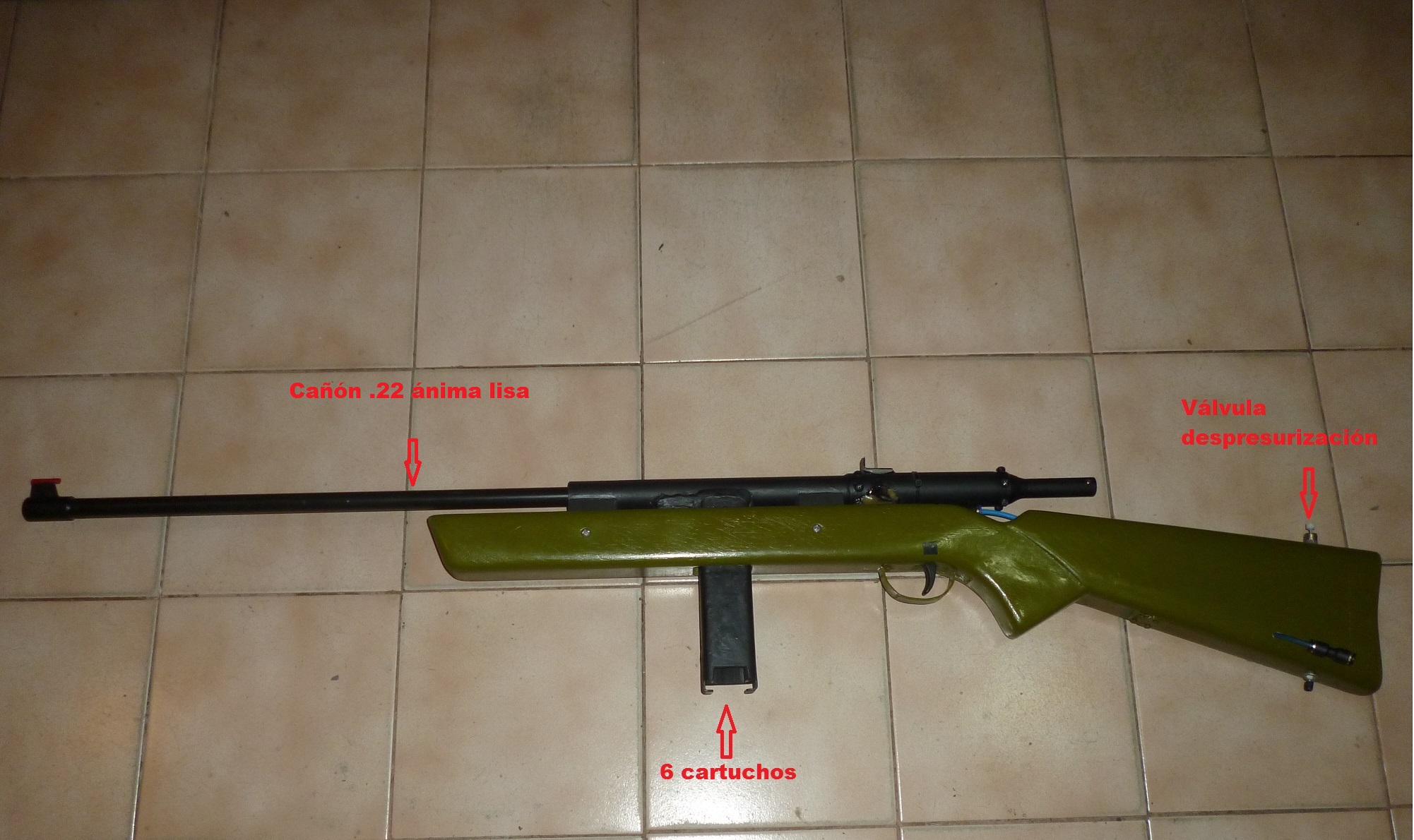

The weapon of the photo, is only for tests. I'm going to change the woods to house the components inside. The system, cannon, ammunition loading system, are the ones I'm going to use.

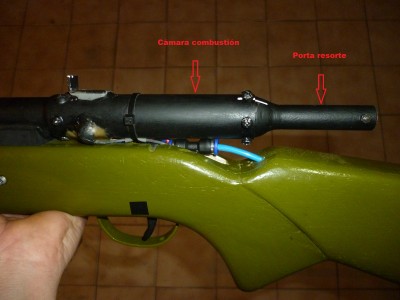

It is the Autonomous Hybrid Cartuchos 2 Repetición. Work at 6X and shoot 5.5mm lead spherical ammunition.
It is a small hybrid weapon to repetition. Just move the bolt forward, and eject the cartridge, then move back, and load the new cartridge housed in the magazine.It is the same as in this video:

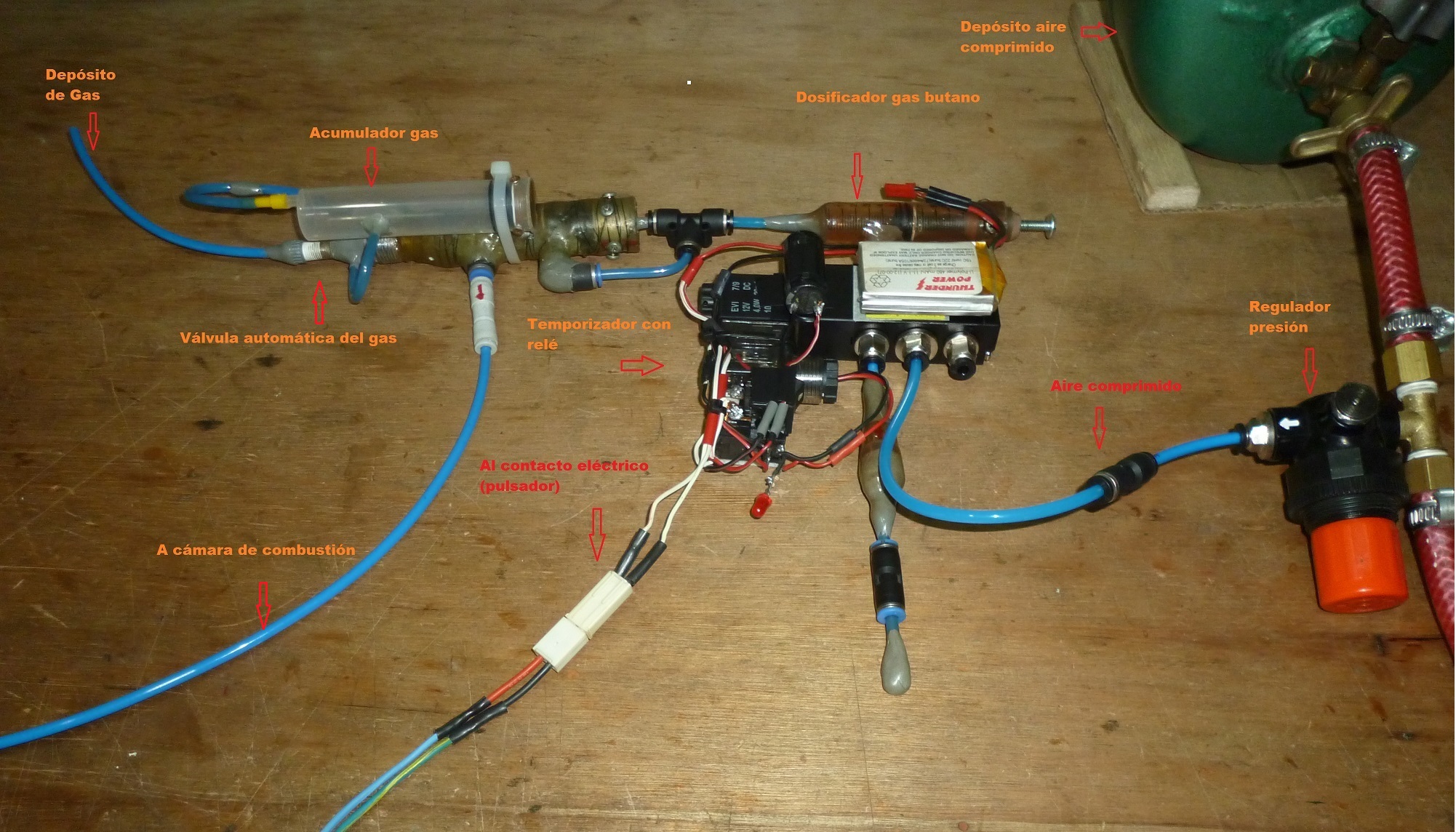

When turning the crank to lock the bolt, the automatic charging system of air - butane gas is activated by an electric contact, and is ready to fire.
It will be model 2019 because these days it is impossible to concentrate on this.
I have tried it a lot, (and shot about 350 cartridges), and it works correctly, although for now I have it distributed on the work table.
I'll make the corresponding video, (I have to do several that I owe).
The air reservoir has 150 psi and fires 15 times. It is an adapted carafe, which is the only thing I have in the present. At the moment it will be left out of the prototype weapon, because it is large ... I need a small air tank, about 800 ml, to incorporate the weapon, it must have about 25 bar for a more or less decent autonomy.

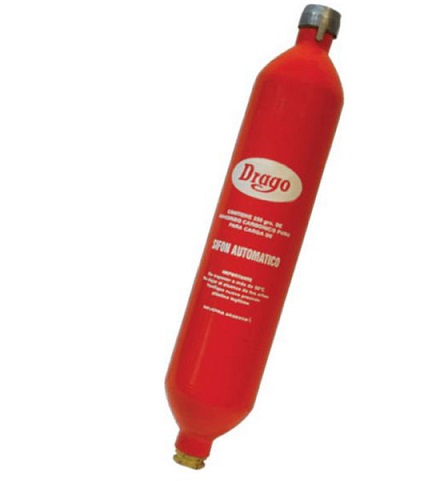

I have thought about using a "Drago" tube for CO2, which is small but heavy, and not of high price, maybe it is an inexpensive solution, I do not know, I have to try it
