My newest airsoft strafer, thrown together for the competition. It utilizes a clear 1" SDR 21 chamber, a spring powered plunger, ghetto cut (but very clean) threads in the back, a 2 foot 9/32" brakeline barrel, a fake silencer that looks really kickass, a modified blowgun in a PVC handle, some clear epoxy, a clear vortex block with no shrouds and the front filed away for better feed, and some other stuff. It's about as strong as the Pocket Strafer but has a higher ROF and lasts longer (compared to the 1 second of firing out of the Pocket Strafer

).
Edit: Sorry for the bad pics....

-
Attachments
-

- You DO NOT want to be here
-

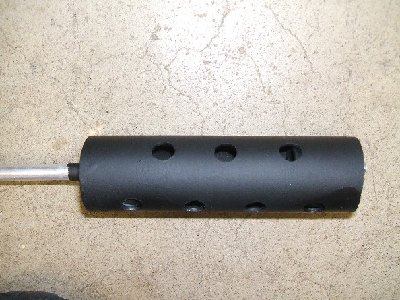

- Kickass silencer
-

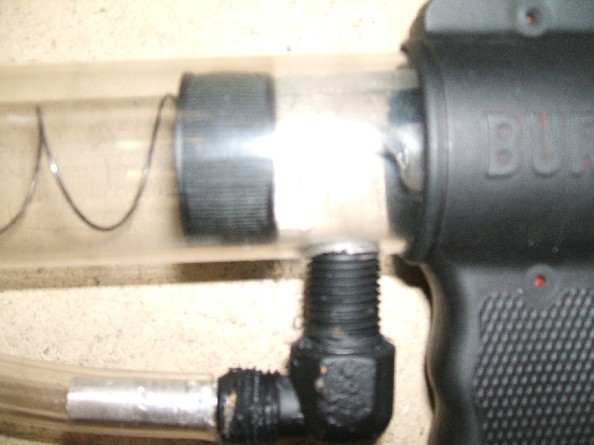

- The plunger and air feed. The block was kind of covered by the flash
-

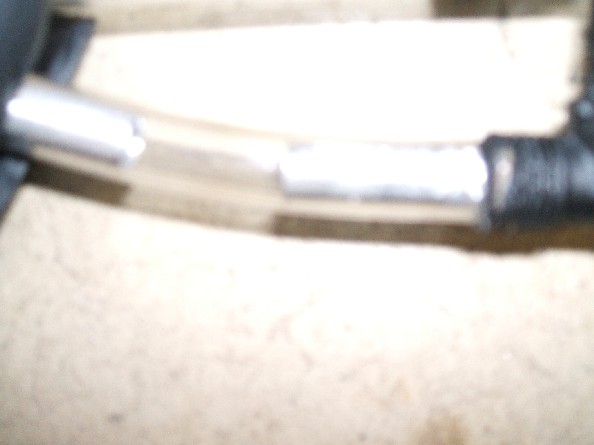

- The air tube feed system
- comp 011.jpg (31.42 KiB) Viewed 7431 times
-

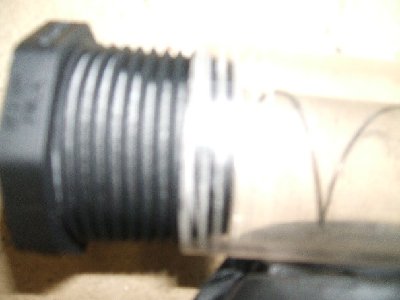

- The self tapped threads, without a tap. I put a steel nipple up to the end, lightly blowtorched the pipe, and screwed the nipple in, blowtorching to soften the plastic when necessary.
-

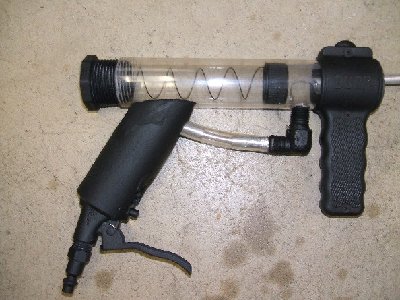

- Closeup of the body
-

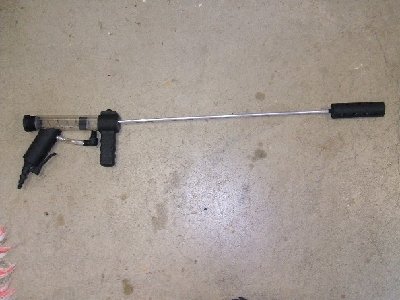

- Overall
-

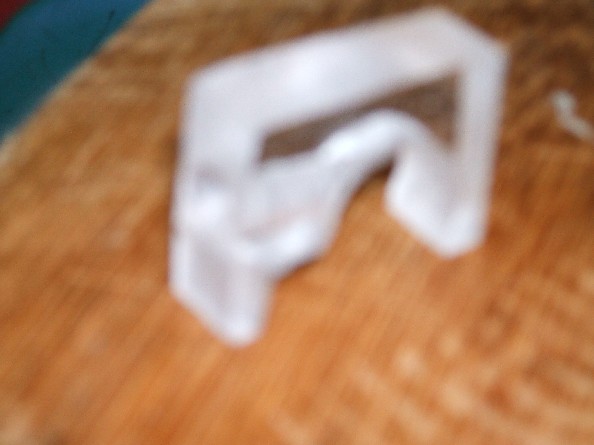

- The vortex block
- comp 008.jpg (39.89 KiB) Viewed 7431 times
-
Redcoat
- Corporal 4

- Posts: 835
- Joined: Tue Feb 13, 2007 1:07 am
- Location: Sydney ,Australia
-
Contact:
Sat May 05, 2007 2:59 am
woah those first couple of photos are blurry but its a nice gun.
video please.
Poo.
-
Insomniac
- Sergeant 3

- Posts: 1297
- Joined: Mon Dec 18, 2006 3:47 pm
- Location: Australia
Sat May 05, 2007 5:10 am
Nice gun, but is that barrel angled upwards or is it just the photo?
I wonder how much deeper the ocean would be without sponges.
Right now I'm having amnesia and deja vu at the same time. I think I've forgotten this before.
Add me on msn!!! insomniac-55@hotmail.com
-
noname
- First Sergeant 4

- Posts: 2698
- Joined: Mon Apr 10, 2006 9:19 pm
- Location: Bay Area, CA
Sun May 06, 2007 5:43 pm
I'm extremely sad I can't get a video. As you can see from the pics, my camera is shitty enough as it is.
The barrel is angled a tiny bit to increase long range accuracy, but the camera exaggerates it.
-
noname
- First Sergeant 4

- Posts: 2698
- Joined: Mon Apr 10, 2006 9:19 pm
- Location: Bay Area, CA
Sat Jun 09, 2007 4:03 pm
With .2 g BBs I get a spread of about 2" from 40 feet.
-
subterranean
- Specialist

- Posts: 171
- Joined: Sat Oct 21, 2006 11:39 am
- Location: columbus, ohio
Mon Jun 11, 2007 7:46 am
speaking of accuraccy, i was hoping to replace the barrel on my airsoft vortex bbmg(currently it's 5/16 brakeline which is very inaccurate), but i need to know which type of barrel is the best choice. So far heres the barrels im considering....
-an actual airsoft gun barrel(probably 8" long to save money)
-8mm OD copper pipe
-9/32 brakeline
i hope that those three will perform better than what i have, but i want to hear some opinions on which is best accuracy wise as well as price.
EDIT: noname- is there any uncommom brakeline size that might be better tham 9/32", i ask this because i know of a local place that sells specialty size brake and hydraulic line.
Last edited by
subterranean on Tue Jun 12, 2007 11:51 am, edited 1 time in total.
-
noname
- First Sergeant 4

- Posts: 2698
- Joined: Mon Apr 10, 2006 9:19 pm
- Location: Bay Area, CA
Mon Jun 11, 2007 8:25 pm
9/32" brakeline and 8 mm OD copper tubing have the same ID, give or take 5 hundredths of an inch. An airsoft barrel is probably a little tighter. An airsoft barrel will also be the most expensive. Copper tubing is next, and brakelin will be the cheapest, at about $2.50 for 3 feet. Brakeline will also mean you have to make absolutely NO modfications to the gun; or even taking out the vortex block. 9/32" brakeline sildes perfectly into 5/16," and friction keeps it from sliding out or slipping in any way. I'd go with the brakeline, hands down, but that's just me.
-
Boomer_
- Private 4

- Posts: 92
- Joined: Wed Jun 28, 2006 4:35 pm
-
Contact:
Wed Jun 13, 2007 10:43 pm
My favorite part is how you threaded that clear pipe. I wish I had those kinds of tools to work with. Great job.
I wish I had a better signature...
-
noname
- First Sergeant 4

- Posts: 2698
- Joined: Mon Apr 10, 2006 9:19 pm
- Location: Bay Area, CA
Wed Jun 13, 2007 10:51 pm
Dude, I used a blowtorch and a steel pipe nipple!

I heated the pipe and forced the nipple in with pliers, I don't know what kind of specialty tools you're talkin' about!
