Self contained airsoft, pump action.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
Experimenting with a self contained pump action airsoft using an air cylinder and springs to provide the power. Using a 1 1/16" bore X 2 " stroke cylinder.
Cylinder is on the top and facing forward which means it needs to be pushed forward to compress springs rather than backwards. Will be self loading if I can make it work, FPS is not critical as I want to use it indoors
- Xamllew
- Private 4
- Posts: 98
- Joined: Sun Aug 21, 2016 11:00 pm
- Location: Belgrade
- Has thanked: 2 times
- Been thanked: 4 times
Neat idea to have the cylinder compress forward instead of back, I've seen this in Nerf guns but never an airsoft. Seems like it would be good for a compact bullpup as you seem to have.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
If this one works I plan on building another with double the size cylinder and barrel, probably forward facing cylinder as well for the compactness.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
The original version of the Silverback SRS A1 cocked the piston on the forward stroke but most users didn't like it, they came out with a conventional rear cocking piston conversion kit shortly after and eventually phased out forward cocking altogether.
hectmarr wrote:You have to make many weapons, because this field is long and short life
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
the only benefit I can see from the forward cocking is it would give rearward recoil effect
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

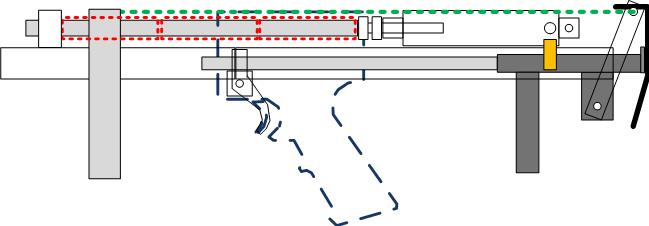

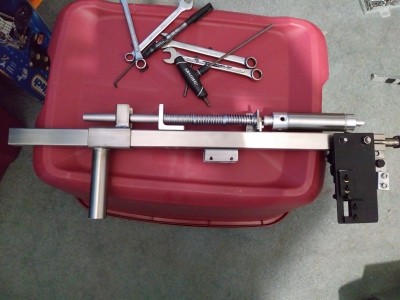

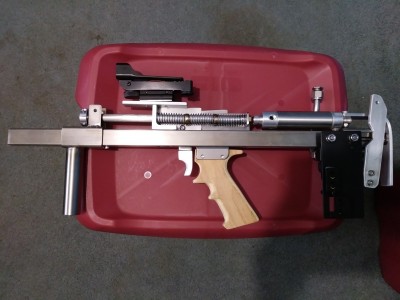

A bit of progress, bracket in the middle is for the grip, sprig guide needs a locking collar for the charge handle to push on, trigger not figured out yet or linkage to rear to load.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

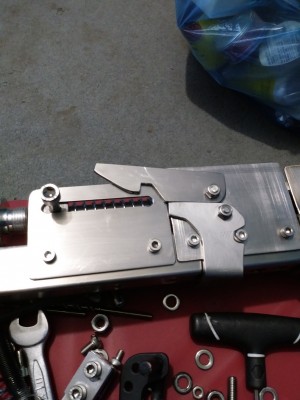

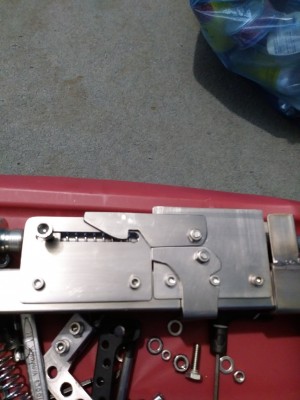

trigger mechanism working with light springs on.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
pretty much all stainless steel
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

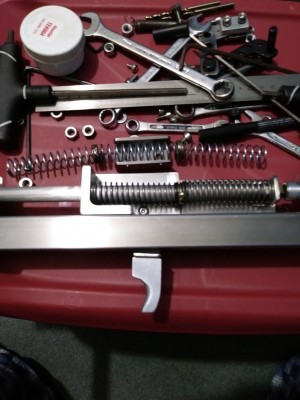

Got a real trigger made, pull is really light. Had to braze the springs together as the ends were binding on the guide as they moved, have 2 lengths to try.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

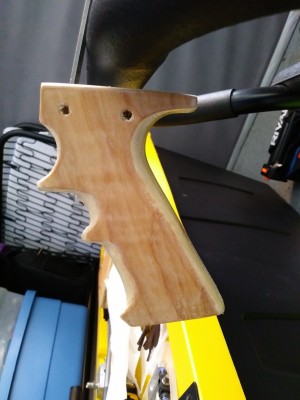

Grip made from 3/4" plywood.

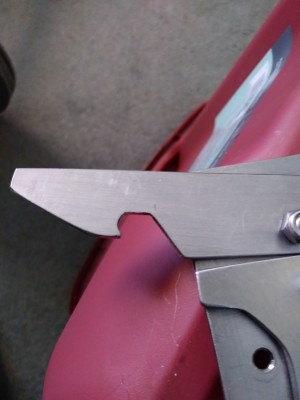

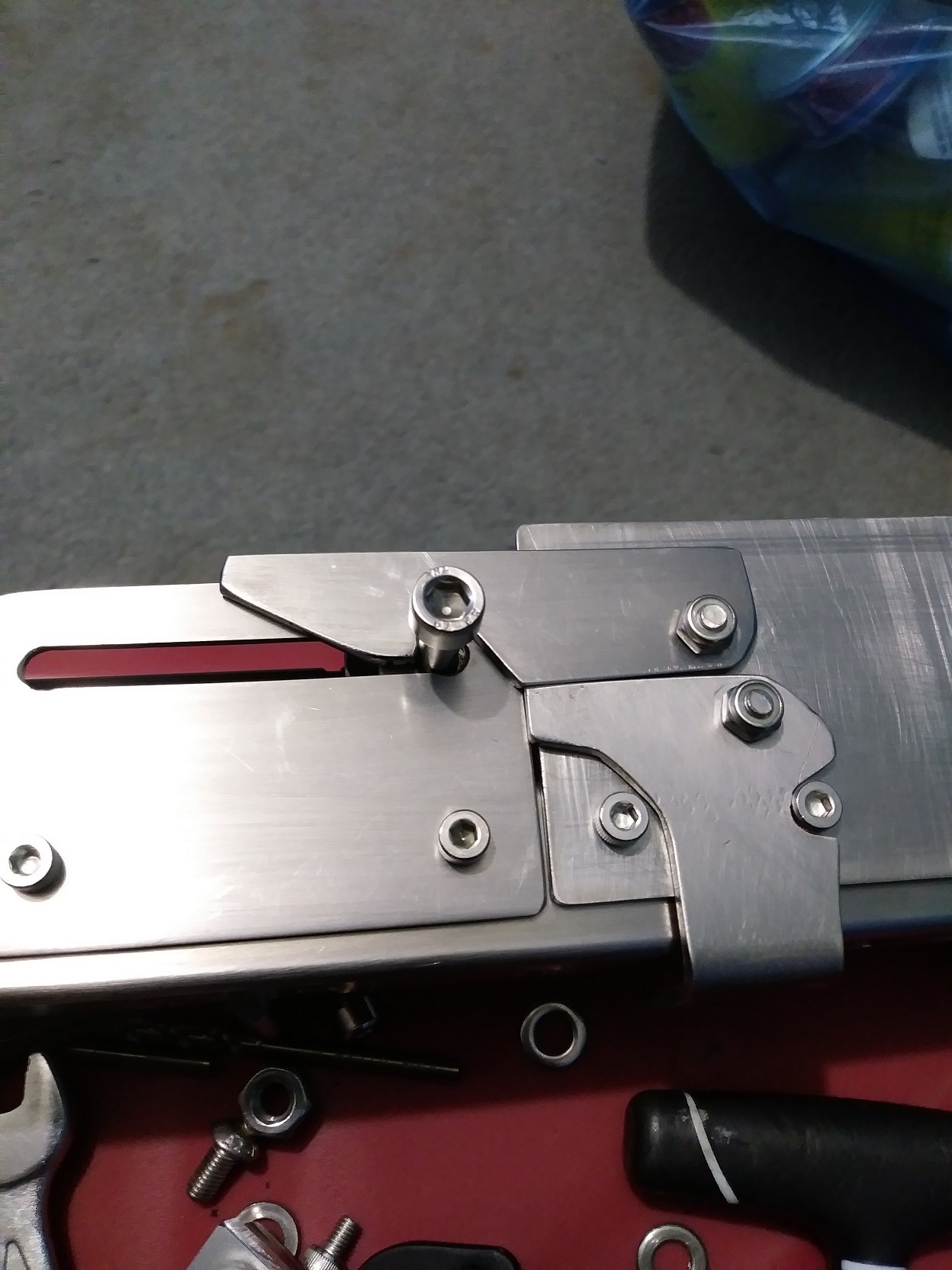

Trigger latch needed a bit of a detent to keep it latched
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

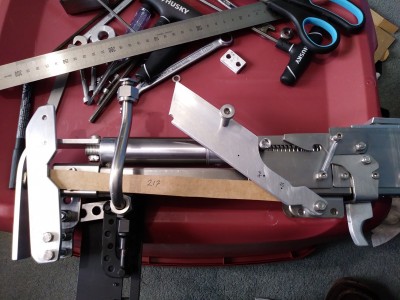

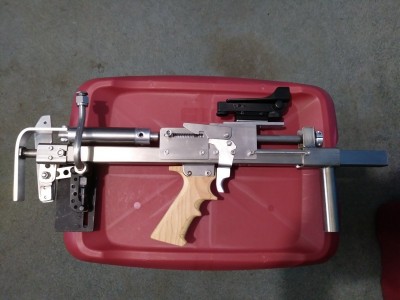

More done, linkage from charge handle to rear to be made and trigger needs a return spring, power seems low but that's what I wanted. The springs are about as much as I can push, rearward charging is definitely needed for more spring tension.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

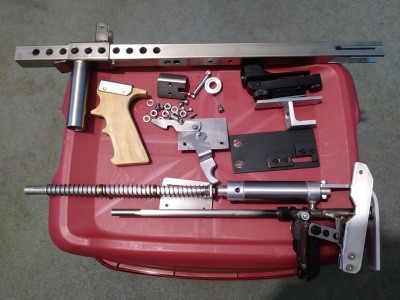

A few tweaks and it's ready to go back together again, just the connecting rod to make from the charge handle to the loading arm at the rear.
-
- Sergeant
- Posts: 1064
- Joined: Sat May 07, 2016 3:49 pm
- Location: Argentina
- Has thanked: 273 times
- Been thanked: 276 times
- Contact:
You see a very good construction, (as always, in your projects). It is nice to see someone who has and carries out a project from these sides. I congratulate you, and I look forward to new things from you.
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times
Trying to make a different/better system for the spring charge/loading handle, this looks much better than the sliding handle I had at the front. The handle would jam very easy because it was trying to twist as it was sliding, the new handle takes much less effort and will be more compact. Still a work in progress
