100mm Copper combustion cannon

Boom! The classic potato gun harnesses the combustion of flammable vapor. Show us your combustion spud gun and discuss fuels, ratios, safety, ignition systems, tools, and more.
Erl
Recruit
Recruit
Posts: 1
Joined: Sat Jan 24, 2015 1:34 am

Sat Jan 24, 2015 2:47 am

Hello Spudfiles. Ive been a lurker here for a long time, thought I would contribute something.

For the last few weeks I've been putting this cannon together. My aim was to make something minimalist and sturdy.

-Almost all of this cannon is copper and brass besides the steel handle and chain on either end. (and a bunch of solder)
-The insides are glued in with clear silicon. Originally I was going to rivet it all together.
-The entire barrel slides through the center of the cannon with a plunger attached to end. The idea is to push fresh air into the chamber as you pull back the barrel to load it. This needs improvement. Maybe a one way valve on the plunger.
-I have a small propane meter that attaches to the air connection under the barrel.


Besides all that its all pretty simple, Let me know what you think.
Also let me know if you can think of any improvements I can make, like a better way to install the lantern ignitor, I really would of liked to have the entire outer surface flat.
Attachments

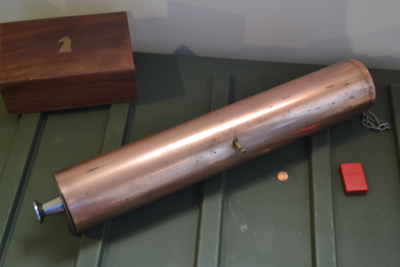

1c coin and a zippo for scale
1c coin and a zippo for scale

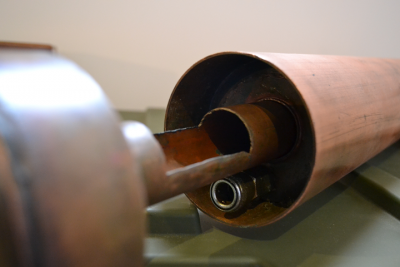

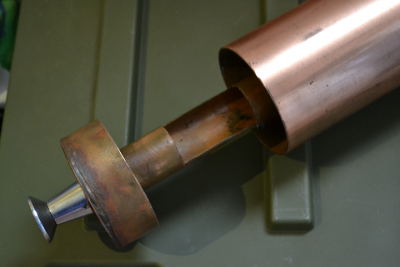

Barrel pulled out
Barrel pulled out

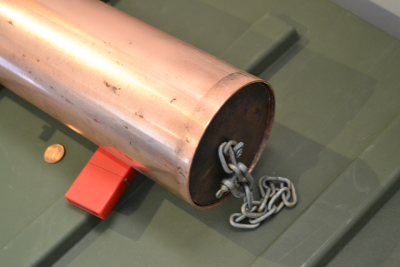

End cap (Just slides in)
End cap (Just slides in)

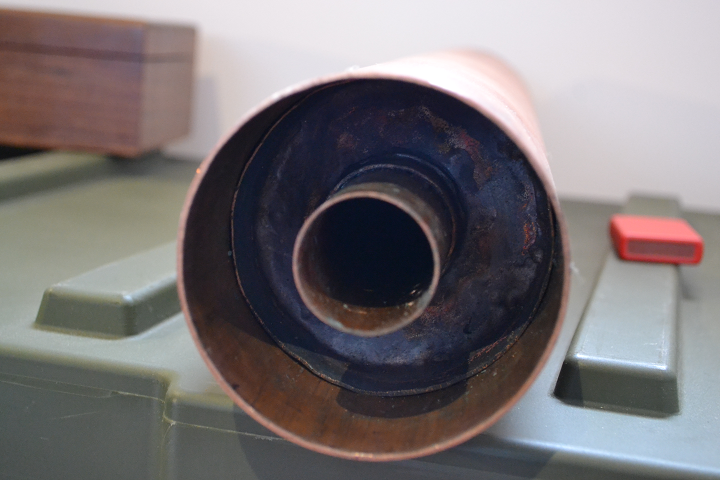

Barrel end
Barrel end
Air connection
Air connection
User avatar
Anatine Duo
Specialist
Specialist
Canada
Posts: 186
Joined: Sat Feb 01, 2014 11:16 am
Location: cottage country
Has thanked: 37 times
Been thanked: 20 times

Mon Jan 26, 2015 10:01 am

THat is super neat...

I am inspired to build a combustion now, this is the layout for me.

Thanks for sharing!
User avatar
jackssmirkingrevenge
Five Star General
Five Star General
Posts: 26203
Joined: Thu Mar 15, 2007 11:28 pm
Has thanked: 569 times
Been thanked: 343 times

Donating Members

Tue Feb 03, 2015 10:39 pm

Fascinating configuration, make sure it's nice and polished on the inside :)
hectmarr wrote:You have to make many weapons, because this field is long and short life
