Can someone good help me ? please
- Anatine Duo
- Specialist
- Posts: 186
- Joined: Sat Feb 01, 2014 11:16 am
- Location: cottage country
- Has thanked: 37 times
- Been thanked: 20 times
Modify blowgun for better flow.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
That would be a way to optimize it but there's probably some restriction here that we're not seeing. At 120 psi he should be seeing good performance regardless given the chamber size, barrel length and QEV.Anatine Duo wrote:Modify blowgun for better flow.
That being said, 8mm counts as "small caliber" in the spudgun world and 120 psi is relatively low.
Here is a GGDT model guesstimated from what we can see in the thread:
10 ft lbs isn't really that much, heck they'll let you own that in the UK without a loicense!
I think Haniball1337 should be looking for a higher pressure source, maybe a fridge compressor as popularized by his fellow countryman.
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
- Private 4
- Posts: 70
- Joined: Thu Mar 07, 2019 12:38 pm
that china qev would be able to hold 450 psi?? Air blowgun is for 12 bars , qev for 8 bars
Will Beto SP-002AG 28bar shock pump be able to pump 28 bar to chamber or this is fake? and this will happen [youtube][/youtube]
If i will put bigger chamber i will get more power?
Will Beto SP-002AG 28bar shock pump be able to pump 28 bar to chamber or this is fake? and this will happen [youtube][/youtube]
If i will put bigger chamber i will get more power?
Last edited by jrrdw on Tue Apr 09, 2019 4:21 pm, edited 1 time in total.
Reason: Triple post. Fixed video tag.
Reason: Triple post. Fixed video tag.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
While exceeding the manufacturer's specifications is never advisable, QEVs of this design have been taken beyond 500 psi by the members of this forum. As to the blowgun, this will be too hard to operate at this pressure so a ball valve pilot would be a better idea.Haniball1337 wrote:that china qev would be able to hold 450 psi?? Air blowgun is for 12 bars , qev for 8 bars
Your chamber is too large for a shock pump, it will take you forever to reach 450 psi.Will Beto SP-002AG 28bar shock pump be able to pump 28 bar to chamber or this is fake? and this will happen
Your best bet is an airgun pump like this one, alternatively a fridge compressor is a way to get that pressure easily and cheaply as per POLAND_SPUD's tutorial.
Not really, more pressure is the solution. Alternatively, if this is not an option, consider going up in caliber. If you keep the same setup but change for a 19mm barrel firing 0.75" steel balls, you will get double the muzzle energy.If i will put bigger chamber i will get more power?
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
- Private 4
- Posts: 70
- Joined: Thu Mar 07, 2019 12:38 pm
Slide valve is good too but , how is this working? He have compressor Hooked up and he is shooting all the time ? Can someone explain me ,
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
The slide valve simultaneously shuts off the air supply from the compressor and vents the pilot to the atmosphere, here's an animation by clide that explains it quite clearly:
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
- Private 4
- Posts: 70
- Joined: Thu Mar 07, 2019 12:38 pm
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times

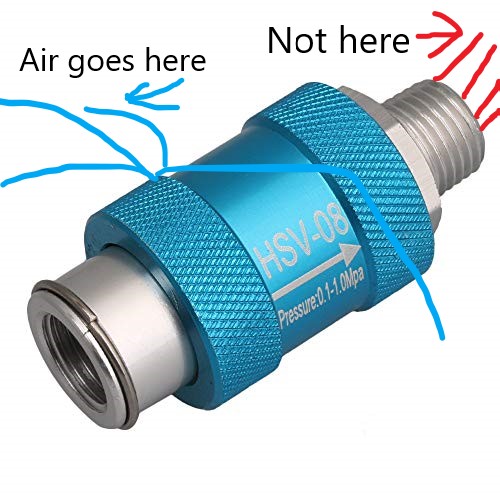

Technically it's more like this but yes, you get the idea. It will work as you drew it.
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
- Private 4
- Posts: 70
- Joined: Thu Mar 07, 2019 12:38 pm
i wanted to make something similar to this , if i will do that it will work? It will be multi shot? I want to use 8 bar pressure
Picture: https://zapodaj.net/2c9fa8a553649.jpg.html
Picture: https://zapodaj.net/2c9fa8a553649.jpg.html
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
It will work, but are you actually planning on using a plastic bottle as a reservoir? You're better off locating a paintball bottle or fire extinguisher, something that will take higher pressure and possibly including a regulator to give you more shots per fill.
hectmarr wrote:You have to make many weapons, because this field is long and short life
-
- Private 4
- Posts: 70
- Joined: Thu Mar 07, 2019 12:38 pm
I think i will use fire extinguisher , i want only to get 3-4 shots like him
-
- Private 4
- Posts: 70
- Joined: Thu Mar 07, 2019 12:38 pm
- farcticox1
- Sergeant
- Posts: 1080
- Joined: Sun Mar 31, 2013 12:37 pm
- Has thanked: 69 times
- Been thanked: 96 times

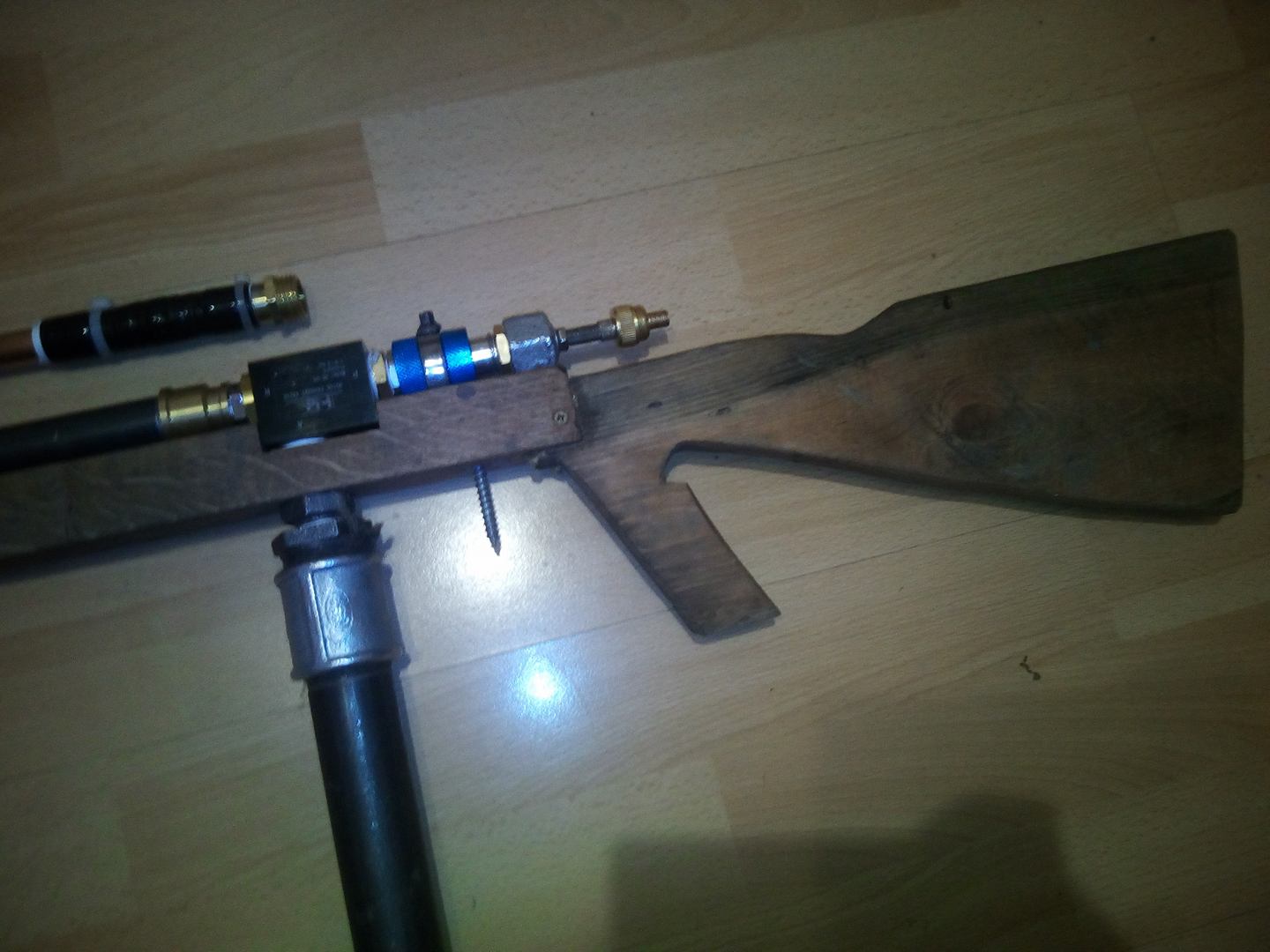

I like it maybe something over the screw/trigger
Reminds me of a Thompson, that's a good thing.
Reminds me of a Thompson, that's a good thing.
- jackssmirkingrevenge
- Five Star General
- Posts: 26203
- Joined: Thu Mar 15, 2007 11:28 pm
- Has thanked: 569 times
- Been thanked: 343 times
Good job! Now find yourself a high-pressure pump and do some real damage
