Blowgun Sprinkler

Show us your pneumatic spud gun! Discuss pneumatic (compressed gas) powered potato guns and related accessories. Valve types, actuation, pipe, materials, fittings, compressors, safety, gas choices, and more.
Post Reply
User avatar
PCGUY
Owner
Owner
United States of America
Posts: 1434
Joined: Wed Aug 18, 2004 10:54 pm
Location: Illinois
Has thanked: 2 times
Been thanked: 26 times
Contact:
Contact PCGUY

Mon Jan 31, 2005 9:29 pm

<div align="center">BLOWGUN SPRINKLER

Provided By - Duster</div>
Attachments
A nice overhead/forward view of the gun. You can see the sprinkler valve, quick disconnect, the pressure chamber and the pressure gauge in the back along with according fittings. Also as you can see, its in a vice. This thing is heavy man! Oh and the blowgun is set on the vice as well.
A nice overhead/forward view of the gun. You can see the sprinkler valve, quick disconnect, the pressure chamber and the pressure gauge in the back along with according fittings. Also as you can see, its in a vice. This thing is heavy man! Oh and the blowgun is set on the vice as well.

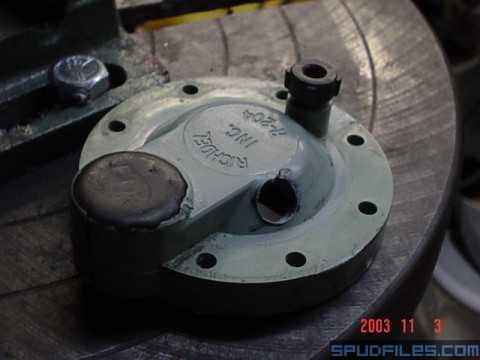

My initial valve head design. As you can see a barb would have to be threaded then a tube connected. I find the quick disconnect much more convenient. Also, here is a good shot of the epoxied solenoid hole. Its hidden, but this valve head (and the other) has a guide rod as well... Which is why the hole was drilled to the side.
My initial valve head design. As you can see a barb would have to be threaded then a tube connected. I find the quick disconnect much more convenient. Also, here is a good shot of the epoxied solenoid hole. Its hidden, but this valve head (and the other) has a guide rod as well... Which is why the hole was drilled to the side.

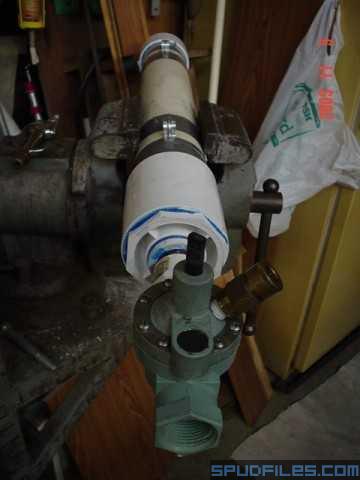

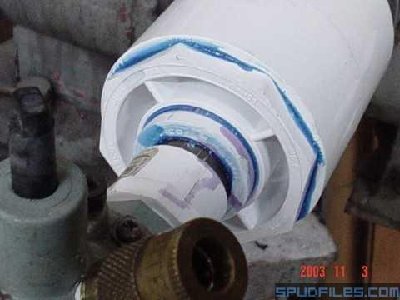

Here is a good shot of the front end equipment and fittings. From front to back: pipe chamber (can barely see it), 3&amp;quot; coupler, 3&amp;quot;-1.5&amp;quot; reducer, 1.5&amp;quot;-1&amp;quot; reducer, about 2&amp;quot; of 1&amp;quot; pipe, 1&amp;quot; male adapter, and sprinkler valve.
Here is a good shot of the front end equipment and fittings. From front to back: pipe chamber (can barely see it), 3&quot; coupler, 3&quot;-1.5&quot; reducer, 1.5&quot;-1&quot; reducer, about 2&quot; of 1&quot; pipe, 1&quot; male adapter, and sprinkler valve.

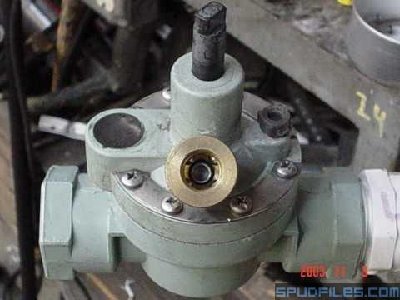

A head on view of he sprinkler valve from the quick disconnect side...
A head on view of he sprinkler valve from the quick disconnect side...

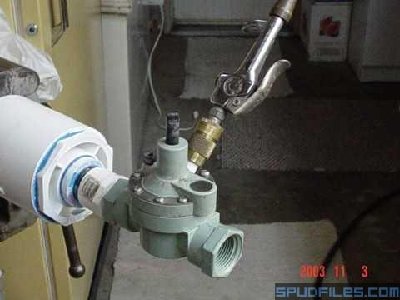

A shot of the valve and the blowgun attached, I could use an air hose but since i work in a garage, it would just get in the way.
A shot of the valve and the blowgun attached, I could use an air hose but since i work in a garage, it would just get in the way.

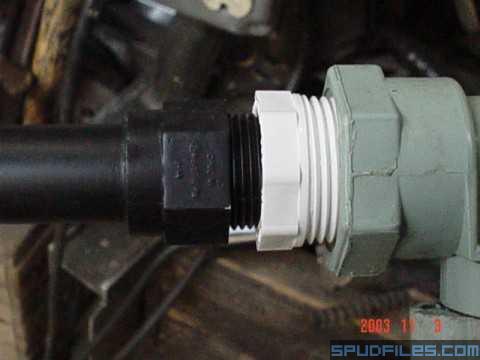

A very nice shot (if I do say so my self) of the front end of the valve, a 1&amp;quot;-.75&amp;quot; reducer, and the beginning of my 5' long CPVC paint ball barrel...
A very nice shot (if I do say so my self) of the front end of the valve, a 1&quot;-.75&quot; reducer, and the beginning of my 5' long CPVC paint ball barrel...

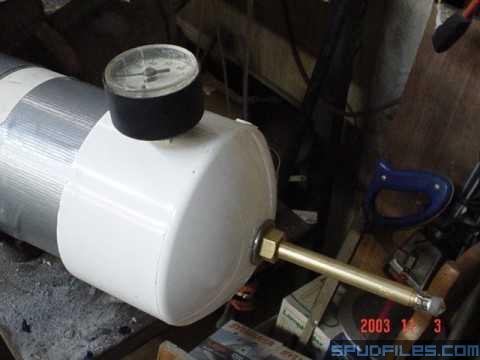

3&amp;quot; end cap, Schrader valve (a long one yes but for a solid $2 who's complaining?), and my pressure gauge! I spend most my time around this end...
3&quot; end cap, Schrader valve (a long one yes but for a solid $2 who's complaining?), and my pressure gauge! I spend most my time around this end...

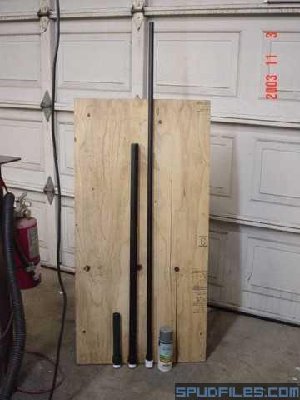

Shot of my barrels and target board, from left to right: 8&amp;quot;x1&amp;quot; SCH 20 pipe (Its so short, and since nothing is loaded really past the muzzle, I don't think the fact its SCH 20 much matters), 36&amp;quot;x1&amp;quot; primary barrel, and my 5'x.75&amp;quot; CPVC paint ball barrel pipe. I may or may not cut down... And spray can for scale.
Shot of my barrels and target board, from left to right: 8&quot;x1&quot; SCH 20 pipe (Its so short, and since nothing is loaded really past the muzzle, I don't think the fact its SCH 20 much matters), 36&quot;x1&quot; primary barrel, and my 5'x.75&quot; CPVC paint ball barrel pipe. I may or may not cut down... And spray can for scale.

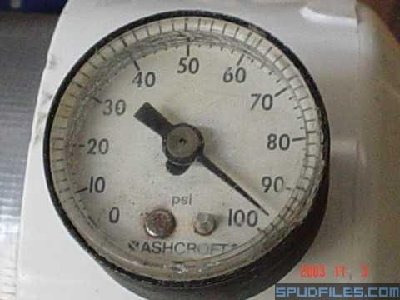

Compressor gets to 120 but the tire inflater attachment i've been using I think levels off at somewhere around 100 since this is as far as it'll go... (it has a &amp;quot;do not use above 125&amp;quot; though... Anyway, I think his is pretty impressive, but that's me....
Compressor gets to 120 but the tire inflater attachment i've been using I think levels off at somewhere around 100 since this is as far as it'll go... (it has a &quot;do not use above 125&quot; though... Anyway, I think his is pretty impressive, but that's me....

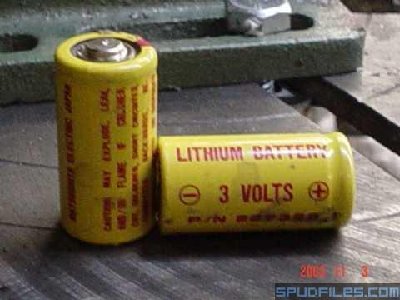

Found these in a camera my mom got me from goodwill (I needs capacitors for my coil gun experiment) and lore and behold, they are a PERFECT fit for the .75&amp;quot; CPVC barrel... I only have these two but I wonder what they will do to that plywood board...
Found these in a camera my mom got me from goodwill (I needs capacitors for my coil gun experiment) and lore and behold, they are a PERFECT fit for the .75&quot; CPVC barrel... I only have these two but I wonder what they will do to that plywood board...
Me holding my big, white (no that's not an oxymoron...) gun... :-) muahahah
Me holding my big, white (no that's not an oxymoron...) gun... :-) muahahah
Last edited by PCGUY on Tue May 02, 2006 10:22 am, edited 1 time in total.
Yes, I am the guy that owns & operates SpudFiles (along with our extremely helpful moderators).
Top
User avatar
syco kilaa
Private 4
Private 4
Posts: 66
Joined: Wed Dec 29, 2004 11:01 am
Location: Raleigh, NC
Contact:
Contact syco kilaa

Wed Feb 02, 2005 3:59 pm

I still don't understand why you put that blow gun where it is on the sprinlker valve
NEGATIVE
Top
User avatar
theexp
Specialist
Specialist
Posts: 157
Joined: Sun Oct 03, 2004 3:19 pm
Location: Chapel Hill NC
Contact:
Contact theexp

Wed Feb 02, 2005 5:03 pm

Isn't that a 2 inch sprinkler valve, or am i just blind... and stupid, and wrong,
but if it is isn't that the only place you can put it? or anywhere around the side of the valve
Top
User avatar
drac
Corporal 4
Corporal 4
United States of America
Posts: 899
Joined: Sun Apr 24, 2005 8:56 am
Location: Avon, NY
Been thanked: 2 times

Sat Jun 18, 2005 5:36 pm

That is a 1 inch sprinkler valve. It says so in the thing:
Here is a good shot of the front end equipment and fittings. From front to back: pipe chamber (can barely see it), 3" coupler, 3"-1.5" reducer, 1.5"-1" reducer, about 2" of 1" pipe, 1" male adapter, and sprinkler valve.
Top
User avatar
saladtossser
Sergeant 3
Sergeant 3
Posts: 1234
Joined: Sat Mar 26, 2005 10:40 am
Location: Toronto
Contact:
Contact saladtossser

Sun Jun 26, 2005 6:13 pm

looks like it has flow control. he had to get around the guide rod.
"whoa... I thought pimpmann was black..."-pyromanic13
Top
User avatar
CpTn_lAw
Corporal 5
Corporal 5
Posts: 987
Joined: Sun Sep 11, 2005 9:10 am
Location: France

Tue Sep 13, 2005 1:06 pm

i'd like to know the power of this thingy, the accuracy, and range of maximal fire!!! please mista the creator of this cool canon
Top
taterjim
Specialist
Specialist
Posts: 123
Joined: Sat Jul 23, 2005 10:14 am

Wed Nov 16, 2005 8:37 pm

I wished I could find a reasonably priced 2" sprinkler valve . I have he rest of what I need already built. it's a monster.
Top
User avatar
Andrew52
Specialist
Specialist
Posts: 196
Joined: Sun Feb 26, 2006 5:01 pm

Sat Apr 08, 2006 11:50 pm

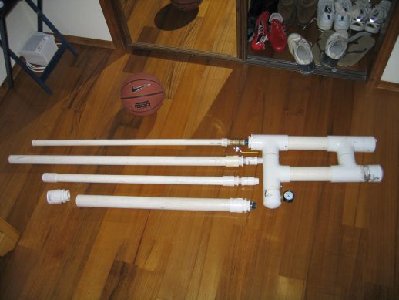

yah those 2 " sprinkler valves arnt cheap i wish i had on for this bad boy
Attachments
spud guns 003.jpg
Top
User avatar
saladtossser
Sergeant 3
Sergeant 3
Posts: 1234
Joined: Sat Mar 26, 2005 10:40 am
Location: Toronto
Contact:
Contact saladtossser

Sat Apr 08, 2006 11:57 pm

oh, i have an idea i would like to share, you can open a female quick disconnect by sticking a pencil down it, cheapo push button valve.
"whoa... I thought pimpmann was black..."-pyromanic13
Top
User avatar
Andrew52
Specialist
Specialist
Posts: 196
Joined: Sun Feb 26, 2006 5:01 pm

Wed May 17, 2006 9:29 pm

hah lol that would be cool
Top
tronhead
Private
Private
Posts: 5
Joined: Wed Jul 19, 2006 11:47 am

Mon Jul 24, 2006 9:23 am

:? I am new to this site and see a lot of different air release systems that all seem to be the same three. I have No use for supah valves, air bleed
triggers {which are clumsy, ugly, leak off and get broken off} and such.
And sprikler valves run on various dc battery configs.
You can make a stock sprinkler valve really talk with a capacitive discharge trigger system. Iwill post my designs later today after I figure out how to navigate this site better.
Top
pyrogeek
Specialist 4
Specialist 4
Posts: 457
Joined: Sat May 13, 2006 7:43 pm
Location: moline Illinios

Mon Jul 24, 2006 9:36 am

tronhead, just mod the sprinkler vavle. It doesn't take more than 10 minutes, and tools you should already own. And even if you don't, the only real specialized tool you will need is a $3 1/4NPT tap.
Top
User avatar
CS
Moderator
Moderator
Posts: 1837
Joined: Fri Feb 18, 2005 5:32 pm
Location: Southern Utah

Donating Members

Mon Jul 24, 2006 10:22 am

You fail to realise the flow of the normal path of activation. The hole is about the size of a pencil lead. Even if that soleniod opens at mach 300 itll still have sh*tty flow. Get a little pushbutton from McMaster if your worried about athstetics. You could always bore out the two holes, get a bigger soleniod, slap a bigger sealing face on there, and BAM! your done with a whole bunch of wasted time!!!
Top
